Quick Details
-
Oil temperature:
-
-50-120°
-
Effective length of optical path:
-
215mm
-
Equivalent length of optical path:
-
430mm
-
Length of sampling probe:
-
2.5m
-
Power consumption:
-
200W
-
Power supply:
-
AC220V ±10% 50Hz ± 1ph
-
Light Absorption Coefficient:
-
0~ 16.0 m-1
-
Opacity (uncorrected ):
-
±20%(abs.)
Quick Details
-
Type:
-
Emissions Testing Machine
-
Opacity:
-
0-99.99%
-
Revolving speed:
-
300-9999rpm
-
Oil temperature:
-
-50-120°
-
Effective length of optical path:
-
215mm
-
Equivalent length of optical path:
-
430mm
-
Length of sampling probe:
-
2.5m
-
Power consumption:
-
200W
-
Power supply:
-
AC220V ±10% 50Hz ± 1ph
-
Light Absorption Coefficient:
-
0~ 16.0 m-1
-
Opacity (uncorrected ):
-
±20%(abs.)

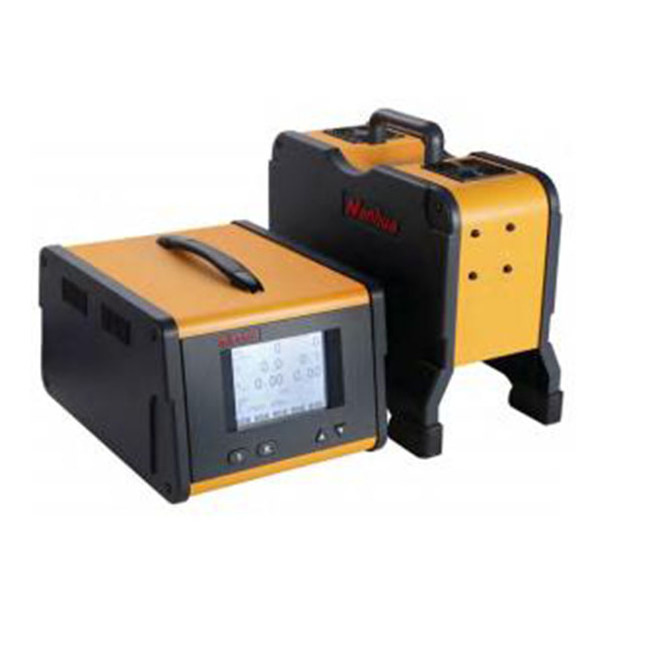

vehicle emissions testing analyzer opacimeter
NHT-6 Opacimeter is a portable intellectual instrument used to test the visible contaminants in emissions (exhaust smoke) from the compression combustion (diesel) engine. With advanced test technology and excellent parts and components from abroad, it is applicable for environmental protection departments, vehicle test stations, automotive manufactures and workshops.
Main Technical Specifications
1.Measuring Range
Opacity: 0~ 99.99%
Light Absorption Coefficient : 0~ 16.0 m-1
Revolving Speed : 300~ 9999rpm
Oil Temperature : -50 ~ 120°C
2.Resolution
|
Opacity : 0.1% Opacity (uncorrected ) :±20%(abs.) Revolving Speed (piezoelectric ): ±1.0% (rel.) Oil temperature : ±2°C(abs.)
3.Effective Length of Optical Path : 215mm 4.Equivalent Length of Optical Path: 430mm 5.Length of sampling Porbe:2.5m 6.Power Consumption : 200W 7.Power Supply : AC220V ±10% 50Hz ± 1Hz 8.Weight : Control unit :5.5kg (including the printer ) Measuring unit :6.5Kg |
Main Features
1.Split structure, separated measuring unit and control unit for easy operation.
2.Large LCD screen, English interactive menu, with opacity reading and light absorption coefficient
reading, simple, direct and convenient operation.
3.With function of free acceleration test and measurement of transients, automatic process of test data
and display of measuring results.
4. 15 minutes of advanced partial flow technology, measuring unit rests smoke emissions of diesel powered vehicles directly,“Scavenge air curtain” technology prevents the optical system from being polluted. With constant temperature control in the sample cell, it can avoid condensation and influence of accuracy due to change of temperature.
5.Equipped with oil temperature measurement probe.
6.Equipped with RS-231C digital serial interface for communication with external computer.
7.The performance meets the requirements of ISO1164 and GB3847-2005
Options and Accessories:
1.Micro printer
2.Various RPM measurement sensor or adaptors
3.DC 12V vehicle power inverter .
