Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Aprilbeacon
-
Product Name:
-
CE Certificated Bluetooth 5.0 BLE IoT Gateway WiFi BLE Beacon Gateway
-
Color:
-
Black , White
-
Size:
-
72mmx74mmx20mm
-
Operating Temperature:
-
-20'C to 60'C
-
Input:
-
DC 5V/1000mA
-
Frequency:
-
700ms
-
Antenna:
-
External Antenna
-
Power supply:
-
USB and PoE Power Supply
-
Weight:
-
102g
-
Certification:
-
CE FCC
Quick Details
-
Chipset:
-
nRF 52832
-
Application:
-
Positioning and navigation
-
Model Number:
-
AB BLE Gateway V4
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Aprilbeacon
-
Product Name:
-
CE Certificated Bluetooth 5.0 BLE IoT Gateway WiFi BLE Beacon Gateway
-
Color:
-
Black , White
-
Size:
-
72mmx74mmx20mm
-
Operating Temperature:
-
-20'C to 60'C
-
Input:
-
DC 5V/1000mA
-
Frequency:
-
700ms
-
Antenna:
-
External Antenna
-
Power supply:
-
USB and PoE Power Supply
-
Weight:
-
102g
-
Certification:
-
CE FCC

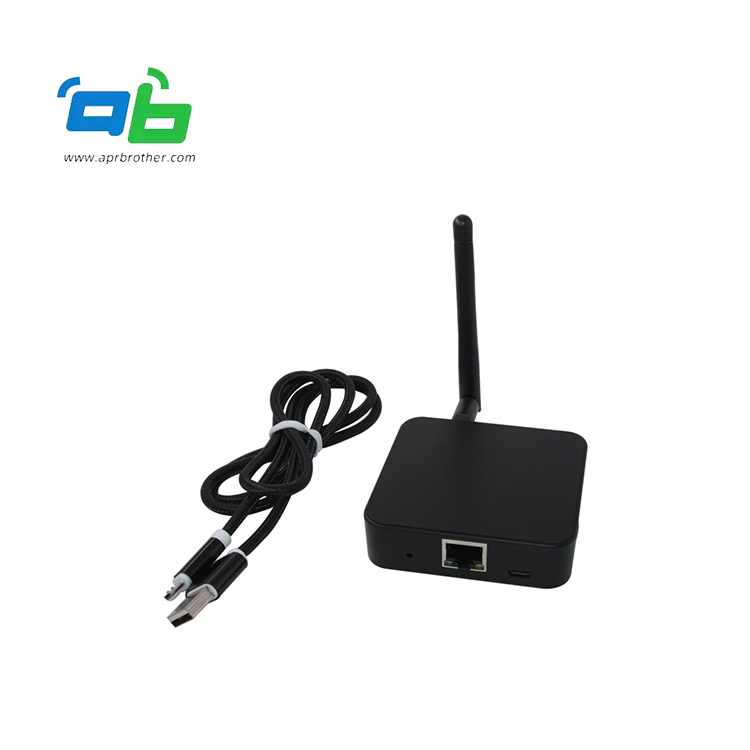

CE FCC Certificated Bluetooth 5.0 BLE IoT Gateway WiFi BLE Beacon Gateway
As an essential device of IoT serial products, the AB BLE Gateway V4 is used to capture the advertising data of the BLE Bluetooth devices, it can track any BLE devices, scan and forward real-time advertisement data from our April Beacons or 3rd Party Bluetooth devices, and report real-time proximity of any iBeacon, Eddystone beacons, and April beacons, and transmit Bluetooth data to the local TCP server or Internet TTP/MOTT server.
The AB BLE Gateway V4 itself does not have the function of data parsing. It can only capture the advertised data of the BLE Bluetooth device and then upload the data to the server. The captured data include MAC address, UUID, Major, Minor, RSSI. Users can configure the transmit period and server information through a simple HTTP API.
1. The
BLE Gateway V4 is programmable
with the firmware developed by yourself;
2. Multiple wireless protocols are supported by BLE Gateway V4, Include
WebSocket, MQTT, HTTP;
3. The April BLE Gateway V4 can
get the power via the USB and PoE port
;
4. The BLE Gateway V4 is
drived by nRF52832 chipset with 50 meters radio range in open space
.
5. 3M double side adhesive tape offered for your mounting the BLE Gateway;
6.
Custom setting, pre-configuration service and OTA update
service offered;
7. Bluetooth gateway
customization service
available;
| Construction | Features | ||
| Model | AB BLE Gateway V4 | Programmable | √ |
| Material | ABS Plastic Housing | Beacon Data Upload | √ |
| Color | Black, White & Custom Colors | Multiple Wireless Protocols | √ |
| Form Factor | Bluetooth Gateway | 3rd Party Beacons Supported | √ |
| Dimensions | 72mm x 74mm x 20mm | Cloud Integration Available | √ |
| Weight | 102g | External Antenna | √ |
| Power Source | 5V/2A Micro USB & PoE Port | 3rd Party Application Supported | √ |
| Flash | 4 MB | WiFi and Ethernet Port | √ |
| Recommended Working Temperature | -20°C to +60°C | OTA Firmware Updates | √ |
| Bluetooth Specs | Custom Service | √ | |
| Controller Chip | nRF52832 | ||
| Working Voltage | 1.8-3.6 V | WiFi Specs | |
| Working Frequency | 2.402GHz - 2.480GHz | Controller Chip | ESP32 |
| Receiver Sensitivity | - 96 dBm | WiFi Protocol | 802.11b/g/n/e/i (802.11n, Up to 150 Mbps) |
| Transmit Rate | 1 Mbps | Frequency | 2.4 GHz |
| Antenna | External Antenna | Transmit Power |
@802.11dB + 20 dBm
@802.11n + 14 dBm |
| Capture Range | 50 M | Transmit Rate | Up to 150 Mbps |
| Ethernet Port | Antenna | PCB Antenna | |
| Work Pattern |
Full-Duplex 10-BASE-T(10 Mbps),
100BASE-TX Transceiver(100 Mbps) |
Capture Range | 100M |
| PoE | 15W IEEE 802.3 af | Upload Maximum | 150 advertising data per second with a WiFi connection |
| Upload Maximum | 210 advertising data per second with Ethernet wire | ||
