1.The vacuum heating and stirring tank is an indispensable equipment in the daily chemical, chemical, electronic, and food industries.
2.The jacketed electric heating water circulation heat transfer has the characteristics of large heating area, high thermal efficiency, uniform heating, short boiling time of liquid material, and easy control of heating temperature.
3. It integrates the functions of vacuum defoaming, stirring, heating, certain pressure resistance, electric control, and discharging.
- Product Details
- {{item.text}}
Quick Details
-
Max. Loading Capacity:
-
5000L
-
Weight (KG):
-
486 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Auris
-
Voltage:
-
220V/380V 50HZ
-
Dimension(L*W*H):
-
Custom Made
-
Power (kW):
-
45 kW
-
Marketing Type:
-
New Product 2021
-
Product name:
-
Soap Mixer Machine
-
Power:
-
7.5kw
-
Usage:
-
Mixing Paste Proucts
-
Homogening speed:
-
0-3000 RPM
-
After Warranty Service:
-
Video Technical Support Online Support
Quick Details
-
Barrel Volume (L):
-
500
-
Max. Loading Volume (L):
-
500 L
-
Range of Spindle Speed(r.p.m):
-
1 - 63 r.p.m
-
Max. Loading Capacity:
-
5000L
-
Weight (KG):
-
486 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Auris
-
Voltage:
-
220V/380V 50HZ
-
Dimension(L*W*H):
-
Custom Made
-
Power (kW):
-
45 kW
-
Marketing Type:
-
New Product 2021
-
Product name:
-
Soap Mixer Machine
-
Power:
-
7.5kw
-
Usage:
-
Mixing Paste Proucts
-
Homogening speed:
-
0-3000 RPM
-
After Warranty Service:
-
Video Technical Support Online Support

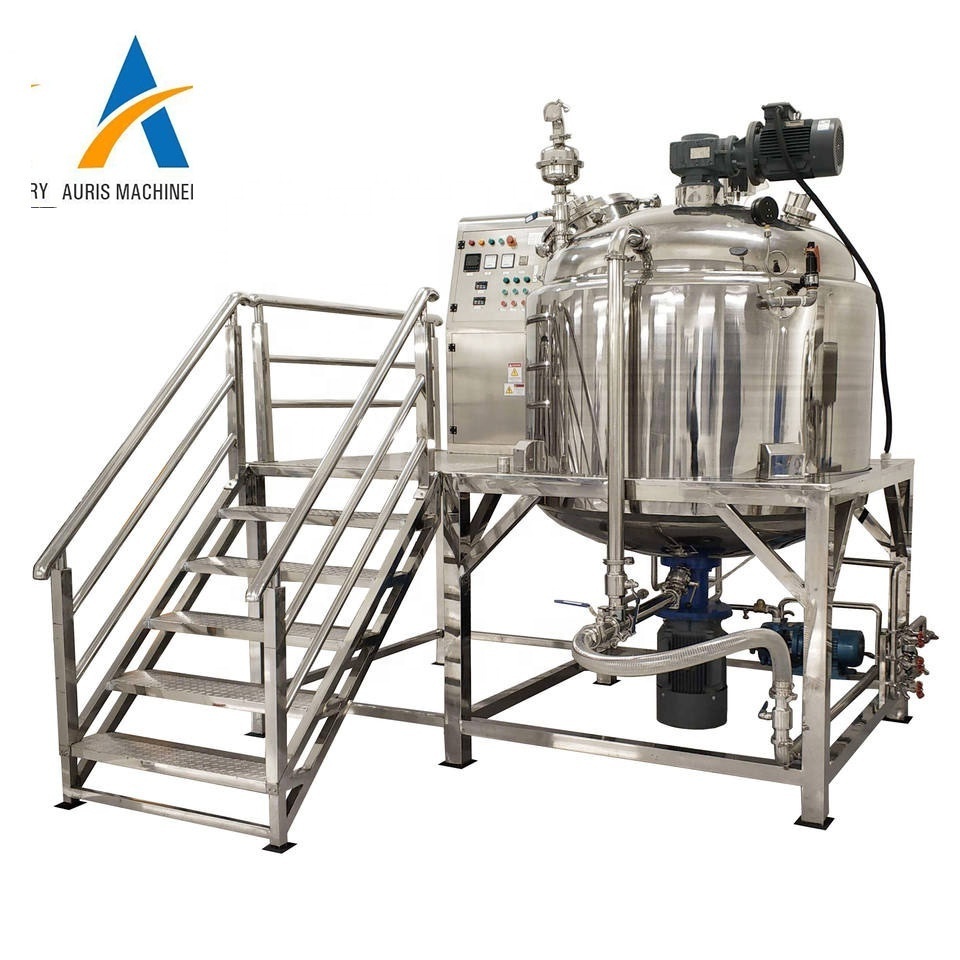

Product Description
Shampoo Liquid Soap Detergent Making Machine Lotion Mixer Cosmetic Machine Making Soap Mixer Machine
The introduction of the
Soap Mixer Machine
Product Parameters
Model
|
Volume(L)
|
Blending power(kw)
|
Blending rotation speed(r/min)
|
Homogenizing power(kw)
|
Homogenizing rotation speed(r/min)
|
AJ-500
|
500
|
3.0
|
0~63
|
7.5
|
0~3200
|
AJ-1000
|
1000
|
4.0
|
0~63
|
11
|
0~3200
|
AJ-1500
|
1500
|
5.5
|
0~63
|
11-15
|
0~3200
|
AJ-2000
|
2000
|
7.5
|
0~63
|
15-18.5
|
0~3200
|
Application
Features of the Soap Mixer Machine
1.The blending system adopts single-direction or double-direction wall scraping blending and frequency converter for speed adjustment to satisfy production of high quality products according to customer requirements.
2.According to technological requirement, the tank can heat and cool materials. The heating way including steam heating and electric heating for choice.
3.The jacketed pot is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing, which fully conforms to GMP requirements.
4. Various forms of blending vanes are suitable for production of different types of products.
Detailed Pictures
Frame stirring
Vertical stirring motor
Steam inlet
SUS316 butterfly valve outlet
Simple platform
final products
