Quick Details
-
Brand Name:
-
Bester
-
Model Number:
-
RZ022-10A
-
Mechanical Life:
-
10 years
-
product type:
-
energy saving light switch
-
working mode:
-
occupancy, vacancy, on off
-
control way:
-
human movement or hand control
-
size:
-
single socket
-
color:
-
white
-
fireproof:
-
yes
-
max current:
-
10A
-
max load:
-
1000W
-
wiring:
-
by wire caps
-
model:
-
RZ022-10A
Quick Details
-
Max. Current:
-
10A
-
Max. Voltage:
-
265V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Bester
-
Model Number:
-
RZ022-10A
-
Mechanical Life:
-
10 years
-
product type:
-
energy saving light switch
-
working mode:
-
occupancy, vacancy, on off
-
control way:
-
human movement or hand control
-
size:
-
single socket
-
color:
-
white
-
fireproof:
-
yes
-
max current:
-
10A
-
max load:
-
1000W
-
wiring:
-
by wire caps
-
model:
-
RZ022-10A
Products Description
|
RZ022 Series
Light Control
PIR Wall Switch
Working Mode
Explanation
|
Mode 1: Vacancy
|
Summary: Auto ON, Auto OFF.
|
|
|
||
|
|
Mode 2: Occupancy
|
Summary: Manual ON, Auto OFF.
|
|
|
||
|
|
Mode 3: ON-OFF
|
Summary: Manual ON, Manual OFF.
|
|
|
||
|
Light Control
PIR Wall Switch
Motion Indicator
Explation
|
Flash Red Light
|
When RZ022 button adjusted by hand.
|
|
|
||
|
|
|
When RZ022 detects motion under ON-OFF mode.
|
|
|
||
|
|
Flash Green Light
|
When RZ022 detects motion under Vacancy mode.
|
|
|
||
|
|
|
When RZ022 detects motion under Occupancy mode.
|
|
|
||
|
|
Flash Yellow Light
|
When RZ022's big button and small button
both adjusted by hands.
|
|
|
||
|
|
|
When RZ022 doesn't detect motion.
|
|
|
||
|
|
|
When people Short Press RZ022 button
within 4 seconds.
|
|
|
||
|
RZ022 Series
Light Control
PIR Wall Switch
Factory Settings
|
Mode
|
Occupancy Mode
|
|
|
||
|
|
Time Delay
|
1 minute time delay
|
|
|
||
|
|
Sensor Sensitivity
|
High Sensitivity
|
|
|
||
|
|
Light Sensor Illuminance
|
Ambient Environment 25 Lux
|
|
|
||
Applications

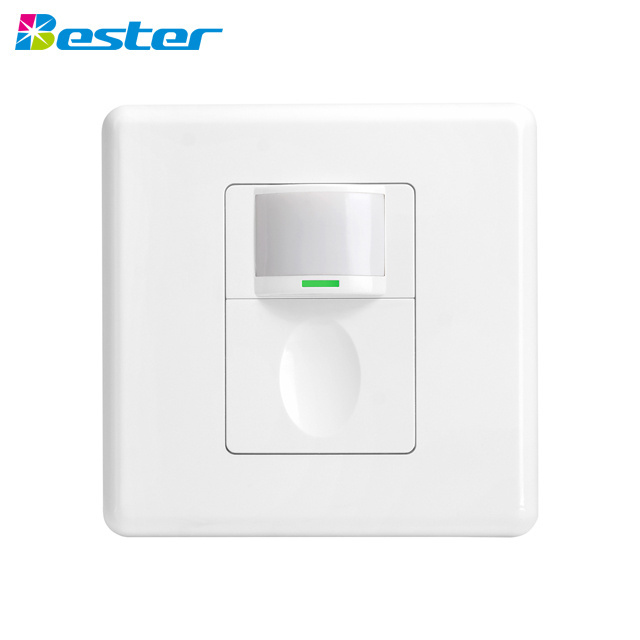

EU Standard Wall Mounted PIR Motion Sensor Switch RZ022 Series
Europe standard wall switch RZ022 combines occupancy mode, vacancy mode, on-off mode. It's perfect for normal family, and disabled, and where need save electricity and do not like hand touch everytime.
Product Paramenters
|
Light Control
PIR Wall Switch
RZ022 Series
|
Small Button
|
Long Press
> 4 seconds
|
1. Enter into Vacancy.
|
Button pressing ends when
indicator flash red for 1 time.
|
|
|
|
|
2(1). Enter into Occupancy.
|
Button pressing ends when
indicator flash red for 2 times.
|
|
|
|
|
2(2). Enter into Occupancy without
light sensor.
|
Button pressing ends when
indicator flash red for 3 times.
|
|
|
|
Control Way:
Short press
< 4 seconds
|
|
Indicator will not flash
when pressing button.
|
|
|
Controlled by:
Big Button
|
Control Way:
Short press
< 4 seconds
|
|
Indicator will not flash
when pressing button.
|
|
Options for
Light Control
PIR Wall Switch RZ022 Series
|
Big
Button
|
Control Way: Long Press > 4 seconds
|
15 seconds
|
Button pressing ends when indicator flash for 1 time.
|
|
|
|
|
1 minute
|
Button pressing ends when indicator flash for 2 times.
|
|
|
|
|
3 minutes
|
Button pressing ends when indicator flash for 3 times.
|
|
|
|
|
5 minutes
|
Button pressing ends when indicator flash for 4 times.
|
|
|
|
|
15 minutes
|
Button pressing ends when indicator flash for 5 times.
|
|
|
|
|
30 minutes
|
Button pressing ends when indicator flash for 6 times.
|
|
User Adjustable Sensor Sensitivity Options for
Light Control
PIR Wall Switch RZ022 Series
|
Controlled by:
Small Button
and
Big Button
|
Control Way: Long Press > 4 seconds
|
|
Button pressing ends when
indicator flash yellow for 1 time.
|
|
|
|
|
|
Button pressing ends when
indicator flash yellow for 2 times.
|
|
User Adjustable Light Sensor
Illuminance Options for Light Control
PIR Wall Switch RZ022 Series
|
Controlled by:
Small Button
and
Big Button
|
> 4 seconds
|
15 Lux
|
Button pressing ends when indicator
flash yellow for 3 times.
|
|
|
|
|
25 Lux
|
Button pressing ends when indicator
flash yellow for 4 times.
|
|
|
|
|
35 Lux
|
Button pressing ends when indicator
flash yellow for 5 times.
|
|
User Reset for
Light Control
PIR Wall Switch RZ022 Series
|
Controlled by:
Small Button
and
Big Button
|
Control Way:
Long Press
> 4 seconds
|
Reset to Factory Settings.
|
flash yellow for 6 times.
|
|
User Temporary
ON or OFF for
Light Control
PIR Wall Switch RZ022 Series
|
|
|
|
Indicator will not flash
when pressing button.
|
