Quick Details
Quick Details
-
Motor Power:
-
as requested
-
Place of Origin:
-
Shanghai, China
-
Warranty:
-
1 Years
Products Description
|
(note：“●”STANDARD；“○”MATCHING；“-”N/A.letter:“H”HIGH STANDARD）
|
|
|
||
|
NO.
|
1
|
|
||
|
MODEL
|
BKK-3301D
|
|
||
|
DESCRIPTION
|
Economic and utility
Air Supply 8-10Bar Gross Weight 230KG Motor Power 1.1Kw Noise Level ≤70dB(A) Power Supply 110V/220V/380V |
|
||
|
MAIN FEATURES
|
●The structure of the swing arm featured with economical andpractical.
●Suitable for all kinds of small size tyres.Easy operation,safty and rapidly. ●Aluminum alloy five way valve, metal contactor,durable,high reliability. ●Front cover of pedal is removable, it is easy to repair. ●Tungsten alloy mounting head with plastic gasket. ●The clamp is made of special material,strong and durable. ●The clamp is made of special material,strong and durable. |
|
||
|
SPECIFICATION
|
Outer Clamp
|
10"-19"
|
||
|
|
Inter Clamp
|
12"-22"
|
||
|
|
Max.Wheel Width
|
14"（355）
|
||
|
|
Max.Wheel Diameter
|
41" （1040）
|
||
|
|
CASE SIZE
|
3301D Case （800x390x500）
|
||
|
|
STAND COLUMN
|
3301D Column （120x120x905）
|
||
|
|
PLATE SIZE
|
3301D Crankset （510x510x14）
|
||
|
Power
|
220V/110V/380V-1.1KW;
|
●
|
||
|
distributing valve
|
plastic
|
●
|
||
|
Two direction swith
|
made in china
|
●
|
||
|
|
imported
|
○
|
||
|
oil-water separator
|
standard
|
●
|
||
|
|
alloy dismounting head
|
○
|
||
|
cylinder
|
iron
|
●
|
||
|
|
aluminum
|
○
|
||
|
dismounting head
|
standard
|
●
|
||
|
|
automatic
|
－
|
||
|
turbo case
|
aluminum
|
●
|
||
|
padel
|
aluminum
|
●
|
||
|
shovel
|
standard
|
●
|
||
|
|
All-direction
|
－
|
||
|
|
pneumatic
|
－
|
||
|
air meter
|
handheld
|
●
|
||
|
|
handheld with rubber cover
|
○
|
||
|
|
Box CG-01
|
－
|
||
|
|
case CG-02
|
○
|
||
|
|
case CG-03
|
○
|
||
|
fast inflator
|
handheld
|
○
|
||
|
front cover
|
no pattern
|
●
|
||
|
|
iron
|
○
|
||
|
|
plastic
|
○
|
||
|
assistant arm
|
CF-R
|
－
|
||
|
|
CL05B-1
|
－
|
||
|
|
CL05B-2
|
－
|
||
|
|
CL05B
|
－
|
||
|
tyre system
|
side tyre holder CL08
|
－
|
||
|
|
tyre holder BKK-3306W
|
－
|
||
|
Packing
|
Wooden case
|
●
|
||
|
(note：“●”STANDARD；“○”MATCHING；“-”N/A.letter:“H”HIGH STANDARD）
|
|
|
|
|
||||
|
NO.
|
2-1
|
|
2-2
|
2-3
|
||||
|
MODEL
|
BKK-3301D+CL05B-1
|
|
BKK-3301D+CL05B-2
|
BKK-3301D+CL05B-3
|
||||
|
DESCRIPTION
|
Air Supply 8-10Bar
Gross Weight 255KG Motor Power 1.1Kw Noise Level ≤70dB(A) Power Supply 110V/220V/380V |
|

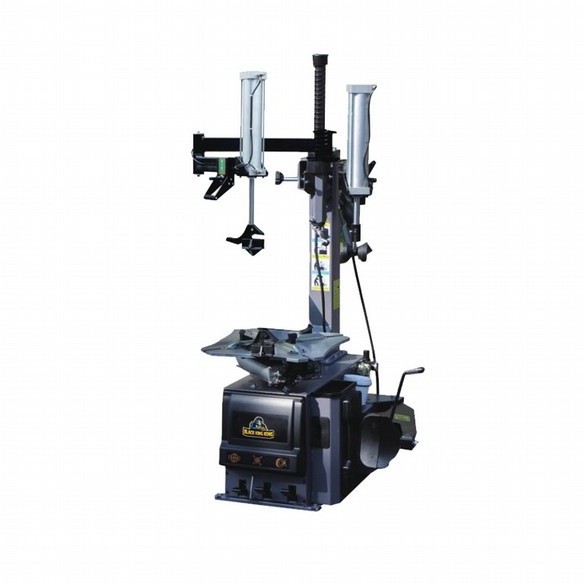

Rocker arm tire removal machine + right side single top auxiliary
|
Rocker arm tire removal machine + left double arm system
|
||||
|
MAIN FEATURES
|
•The roller-arm can help the mounting head reach the working position easily. •Aluminum alloy five way valve, metal contactor
durable, high reliability. •Tungsten alloy mounting head with plastic gasket. •The clamp is made of special material, strong and durable. •The hexangular shaft is made of S41 hexangular steel,which can avoid the distortion when operating the stiff tyre. |
•The roller-arm can help the mounting head reach the working position easily.
•Aluminum alloy five way valve, metal contactor durable, high reliability. •Tungsten alloy mounting head with plastic gasket. •The clamp is made of special material, strong and durable. •The hexangular shaft is made of S41 hexangular steel,which can avoid the distortion when operating the stiff tyre. |
|
|
||||
|
SPECIFICATION
|
Outer Clamp
|
10"-19"
|
10"-19"
|
10"-19"
|
||||
|
|
Inter Clamp
|
12"-22"
|
12"-22"
|
12"-22"
|
||||
|
|
Max.Wheel Width
|
14"（355）
|
14"（355）
|
14"（355）
|
||||
|
|
Max.Wheel Diameter
|
41" （1040）
|
41" （1040）
|
41" （1040）
|
||||
|
|
CASE SIZE
|
3301D case （800x390x500）
|
3301D case （800x390x500）
|
3301D case （800x390x500）
|
||||
|
|
STAND COLUMN
|
3301D Column （120x120x905）
|
3301D Column （120x120x905）
|
3301D Column （120x120x905）
|
||||
|
|
PLATE SIZE
|
3301D Crankset （510x510x14）
|
3301D Crankset （510x510x14）
|
3301D Crankset （510x510x14）
|
||||
|
Power
|
220V/110V/380V-1.1KW;
|
●
|
●
|
●
|
||||
|
distributing valve
|
plastic
|
●
|
●
|
●
|
||||
|
Two direction swith
|
made in china
|
●
|
●
|
●
|
||||
|
|
imported
|
○
|
○
|
○
|
||||
|
oil-water separator
|
standard
|
●
|
●
|
●
|
||||
|
|
alloy dismounting head
|
○
|
○
|
○
|
||||
|
cylinder
|
iron
|
●
|
●
|
●
|
||||
|
|
aluminum
|
○
|
○
|
○
|
||||
|
dismounting head
|
standard
|
●
|
●
|
●
|
||||
|
|
automatic
|
－
|
－
|
－
|
||||
|
turbo case
|
aluminum
|
●
|
●
|
●
|
||||
|
padel
|
aluminum
|
●
|
●
|
●
|
||||
|
shovel
|
standard
|
●
|
●
|
●
|
||||
|
|
All-direction
|
－
|
－
|
－
|
||||
|
|
pneumatic
|
－
|
－
|
－
|
||||
|
air meter
|
handheld
|
●
|
●
|
●
|
||||
|
|
handheld with rubber cover
|
○
|
○
|
○
|
||||
|
|
Box CG-01
|
－
|
－
|
－
|
||||
|
|
case CG-02
|
○
|
○
|
○
|
||||
|
|
case CG-03
|
○
|
○
|
○
|
||||
|
fast inflator
|
handheld
|
○
|
○
|
○
|
||||
|
front cover
|
no pattern
|
●
|
●
|
|
||||
|
|
iron
|
○
|
○
|
○
|
||||
|
|
plastic
|
○
|
○
|
○
|
||||
|
assistant arm
|
CF-R
|
－
|
－
|
－
|
||||
|
|
CL05B-1
|
●
|
－
|
－
|
||||
|
|
CL05B-2
|
－
|
●
|
－
|
||||
|
|
CL05B
|
－
|
－
|
●
|
||||
|
tyre system
|
side tyre holder CL08
|
－
|
－
|
－
|
||||
|
|
tyre holder BKK-3306W
|
－
|
－
|
－
|
||||
|
Packing
|
Wooden case
|
●
|
●
|
●
|
||||
|
(note：“●”STANDARD；“○”MATCHING；“-”N/A.letter:“H”HIGH STANDARD）
|
|
|
|
|
|
|||||
|
NO.
|
|
3
|
3-1
|
3-2
|
3-3
|
|||||
|
MODEL
|
|
BKK-3301DA
|
BKK-3301DA+CL05B-1
|
BKK-3301DA+CL05B-2
|
BKK-3301DA+CL05B
|
|||||
|
DESCRIPTION
|
|
Economic and utility
Rocker arm tire removal machine + left side single top auxiliary Rocker arm tire removal machine + right side single top auxiliary Rocker arm tire removal machine + left double arm system Air Supply 8-10Bar Gross Weight 230KG Motor Power 1.1Kw Noise Level ≤70dB(A) Power Supply 110V/220V/380V |
|
|
|
|||||
|
MAIN FEATURES
|
|
●The structure of the swing arm featured with economical andpractical.
●Suitable for all kinds of small size tyres.Easy operation,safty and rapidly. ●Aluminum alloy five way valve, metal contactor,durable,high reliability. ●Front cover of pedal is removable, it is easy to repair. ●Tungsten alloy mounting head with plastic gasket. ●The clamp is made of special material,strong and durable. ●The clamp is made of special material,strong and durable. |
|
|
|
|||||
|
SPECIFICATION
|
Outer Clamp
|
11"-23"
|
11"-23"
|
11"-23"
|
11"-23"
|
|||||
|
|
Inter Clamp
|
13"-26"
|
13"-26"
|
13"-26"
|
13"-26"
|
|||||
|
|
Max.Wheel Width
|
16"（406）
|
16"（406）
|
16"（406）
|
16"（406）
|
|||||
|
|
Max.Wheel Diameter
|
45" （1140）
|
45" （1140）
|
45" （1140）
|
45" （1140）
|
|||||
|
|
CASE SIZE
|
3302D case （840x390x500）
|
3302D case （840x390x500）
|
3302D case （840x390x500）
|
3302D case （840x390x500）
|
|||||
|
|
STAND COLUMN
|
3304D Column （120x120x980）
|
3304D Column （120x120x980）
|
3304D Column （120x120x980）
|
3304D Column （120x120x980）
|
|||||
|
|
PLATE SIZE
|
3302D Crankset （540x540x14）
|
3302D Crankset （540x540x14）
|
3302D Crankset （540x540x14）
|
3302D Crankset （540x540x14）
|
|||||
|
Power
|
220V/110V/380V-1.1KW;
|
●
|
●
|
●
|
●
|
|||||
|
distributing valve
|
plastic
|
●
|
●
|
●
|
●
|
|||||
|
Two direction swith
|
made in china
|
●
|
●
|
●
|
●
|
|||||
|
|
imported
|
○
|
○
|
○
|
○
|
|||||
|
oil-water separator
|
standard
|
●
|
●
|
●
|
●
|
|||||
|
|
alloy dismounting head
|
○
|
○
|
○
|
○
|
|||||
|
cylinder
|
iron
|
●
|
●
|
●
|
●
|
|||||
|
|
aluminum
|
○
|
○
|
○
|
○
|
|||||
|
dismounting head
|
standard
|
●
|
●
|
●
|
●
|
|||||
|
|
automatic
|
－
|
－
|
－
|
－
|
|||||
|
turbo case
|
aluminum
|
●
|
●
|
●
|
●
|
|||||
|
padel
|
aluminum
|
●
|
●
|
●
|
●
|
|||||
|
shovel
|
standard
|
●
|
●
|
●
|
●
|
|||||
|
|
All-direction
|
－
|
－
|
－
|
－
|
|||||
|
|
pneumatic
|
－
|
－
|
－
|
－
|
|||||
|
air meter
|
handheld
|
●
|
●
|
●
|
●
|
|||||
|
|
handheld with rubber cover
|
○
|
○
|
○
|
○
|
|||||
|
|
Box CG-01
|
－
|
－
|
－
|
－
|
|||||
|
|
case CG-02
|
○
|
○
|
○
|
○
|
|||||
|
|
case CG-03
|
○
|
○
|
○
|
○
|
|||||
|
fast inflator
|
handheld
|
○
|
○
|
○
|
○
|
|||||
|
front cover
|
no pattern
|
●
|
●
|
●
|
|
|||||
|
|
iron
|
○
|
○
|
○
|
○
|
|||||
|
|
plastic
|
○
|
○
|
○
|
○
|
|||||
|
assistant arm
|
CF-R
|
－
|
－
|
－
|
－
|
|||||
|
|
CL05B-1
|
－
|
●
|
－
|
－
|
|||||
|
|
CL05B-2
|
－
|
－
|
●
|
－
|
|||||
|
|
CL05B
|
－
|
－
|
－
|
●
|
|||||
|
tyre system
|
side tyre holder CL08
|
－
|
－
|
－
|
－
|
|||||
|
|
tyre holder BKK-3306W
|
－
|
－
|
－
|
－
|
|||||
|
Packing
|
Wooden case
|
●
|
●
|
●
|
●
|
|||||
|
(note：“●”STANDARD；“○”MATCHING；“-”N/A.letter:“H”HIGH STANDARD）
|
|
|
|
|
||||
|
NO.
|
|
4-1
|
4-2
|
4-3
|
||||
|
MODEL
|
|
BKK-3302D
|
BKK-3302D+CFR
|
BKK-3302D+CFR
|
||||
|
DESCRIPTION
|
|
Rear arm tire remover
Back arm + right auxiliary Back arm + automatic dismounting head + right auxiliary Air Supply 8-10Bar Gross Weight 330KG Motor Power 1.1Kw Noise Level ≤70dB(A) Power Supply 110V/220V/380V |
|
|
||||
|
MAIN FEATURES
|
|
•The right helper with the feature of easy and quick operation. Suitable for high aspect ratio tyres.
•Pneumatic hypsokinesis arm and pneumatic lock mounting head, easy and quick operation. •Front cover of pedal is removable, it is easy to repair. •Aluminum alloy five way valve, metal contactor, durable, high reliability. •The hexangular shaft is made of S41 hexangular steel, which can avoid the distortion when operating the stiff tyre. •The clamp is made of special material, strong and durable. |
|
|
||||
|
SPECIFICATION
|
Outer Clamp
|
11"-23"
|
11"-23"
|
11"-23"
|
||||
|
|
Inter Clamp
|
13"-26"
|
13"-26"
|
13"-26"
|
||||
|
|
Max.Wheel Width
|
16"（406）
|
16"（406）
|
16"（406）
|
||||
|
|
Max.Wheel Diameter
|
45" （1140）
|
45" （1140）
|
45" （1140）
|
||||
|
|
CASE SIZE
|
3302D case （840x390x500）
|
3302D case （840x390x500）
|
3302D case （840x390x500）
|
||||
|
|
STAND COLUMN
|
3302D Column （120x120x823）
|
3302D Column （120x120x823）
|
3302D Column （120x120x823）
|
||||
|
|
PLATE SIZE
|
3302D Crankset （540x540x14）
|
3302D Crankset （540x540x14）
|
3302D Crankset （540x540x14）
|
||||
|
Power
|
220V/110V/380V-1.1KW;
|
●
|
●
|
●
|
||||
|
distributing valve
|
plastic
|
●
|
●
|
●
|
||||
|
Two direction swith
|
made in china
|
●
|
●
|
●
|
||||
|
|
imported
|
○
|
○
|
○
|
||||
|
oil-water separator
|
standard
|
●
|
●
|
○
|
||||
|
|
alloy dismounting head
|
○
|
○
|
●
|
||||
|
cylinder
|
iron
|
●
|
●
|
●
|
||||
|
|
aluminum
|
○
|
○
|
○
|
||||
|
dismounting head
|
standard
|
●
|
●
|
－
|
||||
|
|
automatic
|
－
|
－
|
●
|
||||
|
turbo case
|
aluminum
|
●
|
●
|
●
|
||||
|
padel
|
aluminum
|
●
|
●
|
●
|
||||
|
shovel
|
standard
|
●
|
●
|
●
|
||||
|
|
All-direction
|
－
|
－
|
－
|
||||
|
|
pneumatic
|
－
|
－
|
－
|
||||
|
air meter
|
handheld
|
○
|
○
|
○
|
||||
|
|
handheld with rubber cover
|
●
|
●
|
●
|
||||
|
|
Box CG-01
|
○
|
○
|
○
|
||||
|
|
case CG-02
|
○
|
○
|
○
|
||||
|
|
case CG-03
|
○
|
○
|
○
|
||||
|
fast inflator
|
handheld
|
○
|
○
|
○
|
||||
|
front cover
|
no pattern
|
○
|
○
|
○
|
||||
|
|
iron
|
○
|
○
|
○
|
||||
|
|
plastic
|
●
|
●
|
●
|
||||
|
assistant arm
|
CF-R
|
－
|
●
|
●
|
||||
|
|
CL05B-1
|
－
|
－
|
－
|
||||
|
|
CL05B-2
|
－
|
－
|
－
|
||||
|
|
CL05B
|
－
|
－
|
－
|
||||
|
tyre system
|
side tyre holder CL08
|
－
|
－
|
－
|
||||
|
|
tyre holder BKK-3306W
|
－
|
－
|
－
|
||||
|
Packing
|
Wooden case
|
●
|
●
|
●
|
||||
|
(note：“●”STANDARD；“○”MATCHING；“-”N/A.letter:“H”HIGH STANDARD）
|
|
|
|
|
|
|||||
|
NO.
|
|
5
|
5-1
|
5-2
|
5-3
|
|||||
|
MODEL
|
|
BKK-3304D
|
BKK-3304D+CL05B-1
|
BKK-3304D+CL05B-2
|
BKK-3304D+CL05B
|
|||||
|
DESCRIPTION
|
|
Rocker arm tire removal machine
Rocker arm tire removal machine + left side single top auxiliary Rocker arm tire removal machine + right side single top auxiliary Rocker arm tire removal machine + left doube arm system Air Supply 8-10Bar Gross Weight 330KG Motor Power 1.1Kw Noise Level ≤70dB(A) Power Supply 110V/220V/380V |
|
|
|
|||||
|
MAIN FEATURES
|
|
•Double top assistant arm with the feature of easy and quick operation. Suitable for high aspect ratio tyres.
•The structure of the swing arm featured with economical and practical. •Bigger and thicker chassis, durable and reliable. •Aluminum alloy five way valve, metal contactor, durable, high reliability. •Front cover of pedal is removable, it is easy to repair. •Tungsten alloy mounting head with plastic gasket. •The large shovel uses the arc shovel design, can rotate around the front and back, can better release the shovel force through the work of the tire. |
|
|
|
|||||
|
SPECIFICATION
|
Outer Clamp
|
12"-25"
|
12"-25"
|
12"-25"
|
12"-25"
|
|||||
|
|
Inter Clamp
|
14"-28"
|
14"-28"
|
14"-28"
|
14"-28"
|
|||||
|
|
Max.Wheel Width
|
16"（406）
|
16"（406）
|
16"（406）
|
16"（406）
|
|||||
|
|
Max.Wheel Diameter
|
50" （1270）
|
50" （1270）
|
50" （1270）
|
50" （1270）
|
|||||
|
|
CASE SIZE
|
3304D case （910x440x500）
|
3304D case （910x440x500）
|
3304D case （910x440x500）
|
3304D case （910x440x500）
|
|||||
|
|
STAND COLUMN
|
3304D Column （120x120x980）
|
3304D Column （120x120x980）
|
3304D Column （120x120x980）
|
3304D Column （120x120x980）
|
|||||
|
|
PLATE SIZE
|
3304D Crankset （630x630x15）
|
3304D Crankset （630x630x15）
|
3304D Crankset （630x630x15）
|
3304D Crankset （630x630x15）
|
|||||
|
Power
|
220V/110V/380V-1.1KW;
|
●
|
●
|
●
|
●
|
|||||
|
distributing valve
|
plastic
|
●
|
●
|
●
|
●
|
|||||
|
Two direction swith
|
made in china
|
●
|
●
|
●
|
●
|
|||||
|
|
imported
|
○
|
○
|
○
|
○
|
|||||
|
oil-water separator
|
standard
|
●
|
●
|
●
|
●
|
|||||
|
|
alloy dismounting head
|
○
|
○
|
○
|
○
|
|||||
|
cylinder
|
iron
|
●
|
●
|
●
|
●
|
|||||
|
|
aluminum
|
○
|
○
|
○
|
○
|
|||||
|
dismounting head
|
standard
|
●
|
●
|
●
|
●
|
|||||
|
|
automatic
|
－
|
－
|
－
|
－
|
|||||
|
turbo case
|
aluminum
|
●
|
●
|
●
|
●
|
|||||
|
padel
|
aluminum
|
●
|
●
|
●
|
●
|
|||||
|
shovel
|
standard
|
－
|
－
|
－
|
－
|
|||||
|
|
All-direction
|
●
|
●
|
●
|
●
|
|||||
|
|
pneumatic
|
－
|
－
|
－
|
－
|
|||||
|
air meter
|
handheld
|
○
|
○
|
○
|
○
|
|||||
|
|
handheld with rubber cover
|
●
|
●
|
●
|
●
|
|||||
|
|
Box CG-01
|
○
|
○
|
○
|
○
|
|||||
|
|
case CG-02
|
○
|
○
|
○
|
○
|
|||||
|
|
case CG-03
|
○
|
○
|
○
|
○
|
|||||
|
fast inflator
|
handheld
|
○
|
○
|
○
|
○
|
|||||
|
front cover
|
no pattern
|
○
|
○
|
○
|
○
|
|||||
|
|
iron
|
－
|
－
|
－
|
－
|
|||||
|
|
plastic
|
●
|
●
|
●
|
●
|
|||||
|
assistant arm
|
CF-R
|
－
|
－
|
－
|
－
|
|||||
|
|
CL05B-1
|
－
|
－
|
－
|
－
|
|||||
|
|
CL05B-2
|
－
|
－
|
－
|
－
|
|||||
|
|
CL05B
|
－
|
－
|
－
|
●
|
|||||
|
tyre system
|
side tyre holder CL08
|
○
|
○
|
○
|
○
|
|||||
|
|
tyre holder BKK-3306W
|
○
|
○
|
○
|
○
|
|||||
|
Packing
|
Wooden case
|
●
|
●
|
●
|
●
|
|||||
|
(note：“●”STANDARD；“○”MATCHING；“-”N/A.letter:“H”HIGH STANDARD）
|
|
6-1
|
6-2
|
6-3
|
||||
|
NO.
|
|
6-1
|
6-2
|
6-3
|
||||
|
MODEL
|
|
BKK-3305D
|
BKK-3305D+CFR
|
BKK-3305DH+CFR
|
||||
|
DESCRIPTION
|
|
Rear arm tire remover
Back arm + right auxiliary Back arm + right auxiliary Air Supply 8-10Bar Gross Weight 370KG Motor Power 1.1Kw Noise Level ≤70dB(A) Power Supply 110V/220V/380V |
|
|
||||
|
MAIN FEATURES
|
|
•Two sorts post, bigger, wider and stronger, suitable for moretyres.
•Pneumatically tyre blaster make the construction morereasonable and easy operation. •The right helper with the feature of easy and quick operation. Suitable for high aspect ratio tyres. •Pneumatic hypsokinesis arm and pneumatic lock mounting head, easy and quick operation. •Bigger and thicker chassis, durable and reliable. •Aluminum alloy five way valve, metal contactor, durable, high reliability. •Tungsten alloy mounting head with plastic gasket. |
|
|
||||
|
SPECIFICATION
|
Outer Clamp
|
12"-25"
|
12"-25"
|
12"-25"
|
||||
|
|
Inter Clamp
|
14"-28"
|
14"-28"
|
14"-28"
|
||||
|
|
Max.Wheel Width
|
18"（457）
|
18"（457）
|
18"（457）
|
||||
|
|
Max.Wheel Diameter
|
50" （1270）
|
50" （1270）
|
50" （1270）
|
||||
|
|
CASE SIZE
|
3304D case （910x440x500）
|
3304D case （910x440x500）
|
3304D case （910x440x500）
|
||||
|
|
STAND COLUMN
|
3305D Column （120x120x863）
|
3305D Column （120x120x863）
|
3305D Column （120x120x863）
|
||||
|
|
PLATE SIZE
|
3304D Crankset （630x630x15）
|
3304D Crankset （630x630x15）
|
3304D Crankset （630x630x15）
|
||||
|
Power
|
220V/110V/380V-1.1KW;
|
●
|
●
|
●
|
||||
|
distributing valve
|
plastic
|
●
|
●
|
●
|
||||
|
Two direction swith
|
made in china
|
●
|
●
|
●
|
||||
|
|
imported
|
○
|
○
|
○
|
||||
|
oil-water separator
|
standard
|
●
|
●
|
○
|
||||
|
|
alloy dismounting head
|
○
|
○
|
●
|
||||
|
cylinder
|
iron
|
●
|
●
|
○
|
||||
|
|
aluminum
|
○
|
○
|
●
|
||||
|
dismounting head
|
standard
|
●
|
●
|
●
|
||||
|
|
automatic
|
－
|
－
|
－
|
||||
|
turbo case
|
aluminum
|
●
|
●
|
●
|
||||
|
padel
|
aluminum
|
●
|
●
|
●
|
||||
|
shovel
|
standard
|
－
|
－
|
－
|
||||
|
|
All-direction
|
●
|
●
|
○
|
||||
|
|
pneumatic
|
○
|
○
|
●
|
||||
|
air meter
|
handheld
|
○
|
○
|
○
|
||||
|
|
handheld with rubber cover
|
●
|
●
|
○
|
||||
|
|
Box CG-01
|
○
|
○
|
○
|
||||
|
|
case CG-02
|
○
|
○
|
○
|
||||
|
|
case CG-03
|
○
|
○
|
○
|
||||
|
fast inflator
|
handheld
|
○
|
○
|
●
|
||||
|
front cover
|
no pattern
|
○
|
○
|
○
|
||||
|
|
iron
|
－
|
－
|
－
|
||||
|
|
plastic
|
●
|
●
|
●
|
||||
|
assistant arm
|
CF-R
|
－
|
●
|
●
|
||||
|
|
CL05B-1
|
－
|
－
|
－
|
||||
|
|
CL05B-2
|
－
|
－
|
－
|
||||
|
|
CL05B
|
－
|
－
|
－
|
||||
|
tyre system
|
side tyre holder CL08
|
○
|
○
|
○
|
||||
|
|
tyre holder BKK-3306W
|
○
|
○
|
○
|
||||
|
Packing
|
Wooden case
|
●
|
●
|
●
|
||||
|
(note：“●”STANDARD；“○”MATCHING；“-”N/A.letter:“H”HIGH STANDARD）
|
|
|
|
|||
|
NO.
|
|
7-1
|
7-2
|
|||
|
MODEL
|
|
BKK-3306D+CFR
|
BKK-3306DH+CFR
|
|||
|
DESCRIPTION
|
|
Back arm + automatic dismounting head + right auxiliary
Back arm + automatic dismounting head + right auxiliary + tire support system Air Supply 8-10Bar Gross Weight 370KG Motor Power 1.1Kw Noise Level ≤70dB(A) Power Supply 110V/220V/380V |
|
|||
|
MAIN FEATURES
|
|
•Two sorts post, bigger, wider and stronger, suitable for moretyres.
•Pneumatically tyre blaster make the construction morereasonable and easy operation. •The right helper with the feature of easy and quick operation. Suitable for high aspect ratio tyres. •Pneumatic hypsokinesis arm and pneumatic lock mounting head, easy and quick operation. •Bigger and thicker chassis, durable and reliable. •Aluminum alloy five way valve, metal contactor, durable, high reliability. •Tungsten alloy mounting head with plastic gasket. |
|
|||
|
SPECIFICATION
|
Outer Clamp
|
12"-25"
|
12"-25"
|
|||
|
|
Inter Clamp
|
14"-28"
|
14"-28"
|
|||
|
|
Max.Wheel Width
|
18"（457）
|
18"（457）
|
|||
|
|
Max.Wheel Diameter
|
50" （1270）
|
50" （1270）
|
|||
|
|
CASE SIZE
|
3304D case （910x440x500）
|
3304D case （910x440x500）
|
|||
|
|
STAND COLUMN
|
3305D Column （120x120x863）
|
3305D Column （120x120x863）
|
|||
|
|
PLATE SIZE
|
3304D Crankset （630x630x15）
|
3304D Crankset （630x630x15）
|
|||
|
Power
|
220V/110V/380V-1.1KW;
|
●
|
●
|
|||
|
distributing valve
|
plastic
|
●
|
●
|
|||
|
Two direction swith
|
made in china
|
●
|
●
|
|||
|
|
imported
|
○
|
○
|
|||
|
oil-water separator
|
standard
|
●
|
○
|
|||
|
|
alloy dismounting head
|
○
|
●
|
|||
|
cylinder
|
iron
|
●
|
○
|
|||
|
|
aluminum
|
○
|
●
|
|||
|
dismounting head
|
standard
|
－
|
－
|
|||
|
|
automatic
|
●
|
●
|
|||
|
turbo case
|
aluminum
|
●
|
●
|
|||
|
padel
|
aluminum
|
●
|
●
|
|||
|
shovel
|
standard
|
－
|
－
|
|||
|
|
All-direction
|
●
|
○
|
|||
|
|
pneumatic
|
○
|
●
|
|||
|
air meter
|
handheld
|
○
|
○
|
|||
|
|
handheld with rubber cover
|
●
|
○
|
|||
|
|
Box CG-01
|
○
|
○
|
|||
|
|
case CG-02
|
○
|
○
|
|||
|
|
case CG-03
|
○
|
○
|
|||
|
fast inflator
|
handheld
|
○
|
●
|
|||
|
front cover
|
no pattern
|
○
|
○
|
|||
|
|
iron
|
－
|
－
|
|||
|
|
plastic
|
●
|
●
|
|||
|
assistant arm
|
CF-R
|
●
|
●
|
|||
|
|
CL05B-1
|
－
|
－
|
|||
|
|
CL05B-2
|
－
|
－
|
|||
|
|
CL05B
|
－
|
－
|
|||
|
tyre system
|
side tyre holder CL08
|
○
|
●
|
|||
|
|
tyre holder BKK-3306W
|
○
|
●
|
|||
|
Packing
|
Wooden case
|
●
|
●
|
|||
Related Products
Hot Searches
