Name: CO2 HIGH-PRESSURE PUMP
Brand: CAREDDI
Original: China
Flow Rate(Triple plunger):1500L/H
Max working Pressure: 40MPa, pumps head with
cooling system
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380
-
Dimension(L*W*H):
-
6000X5000X5000
-
Weight:
-
12000 KG
-
Product name:
-
oil extraction machine
-
Name:
-
oil extraction machine
-
Function:
-
oil extraction machine
-
Extraction Type:
-
Super Critical CO2 Fluid Extraction
-
Material:
-
SUS304
-
Capacity:
-
50-1000kg/h
-
Keywords:
-
oil extraction machine
-
Process:
-
Co2
Quick Details
-
Production Capacity:
-
500
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CAREDDI
-
Voltage:
-
380
-
Dimension(L*W*H):
-
6000X5000X5000
-
Weight:
-
12000 KG
-
Product name:
-
oil extraction machine
-
Name:
-
oil extraction machine
-
Function:
-
oil extraction machine
-
Extraction Type:
-
Super Critical CO2 Fluid Extraction
-
Material:
-
SUS304
-
Capacity:
-
50-1000kg/h
-
Keywords:
-
oil extraction machine
-
Process:
-
Co2
Product Description

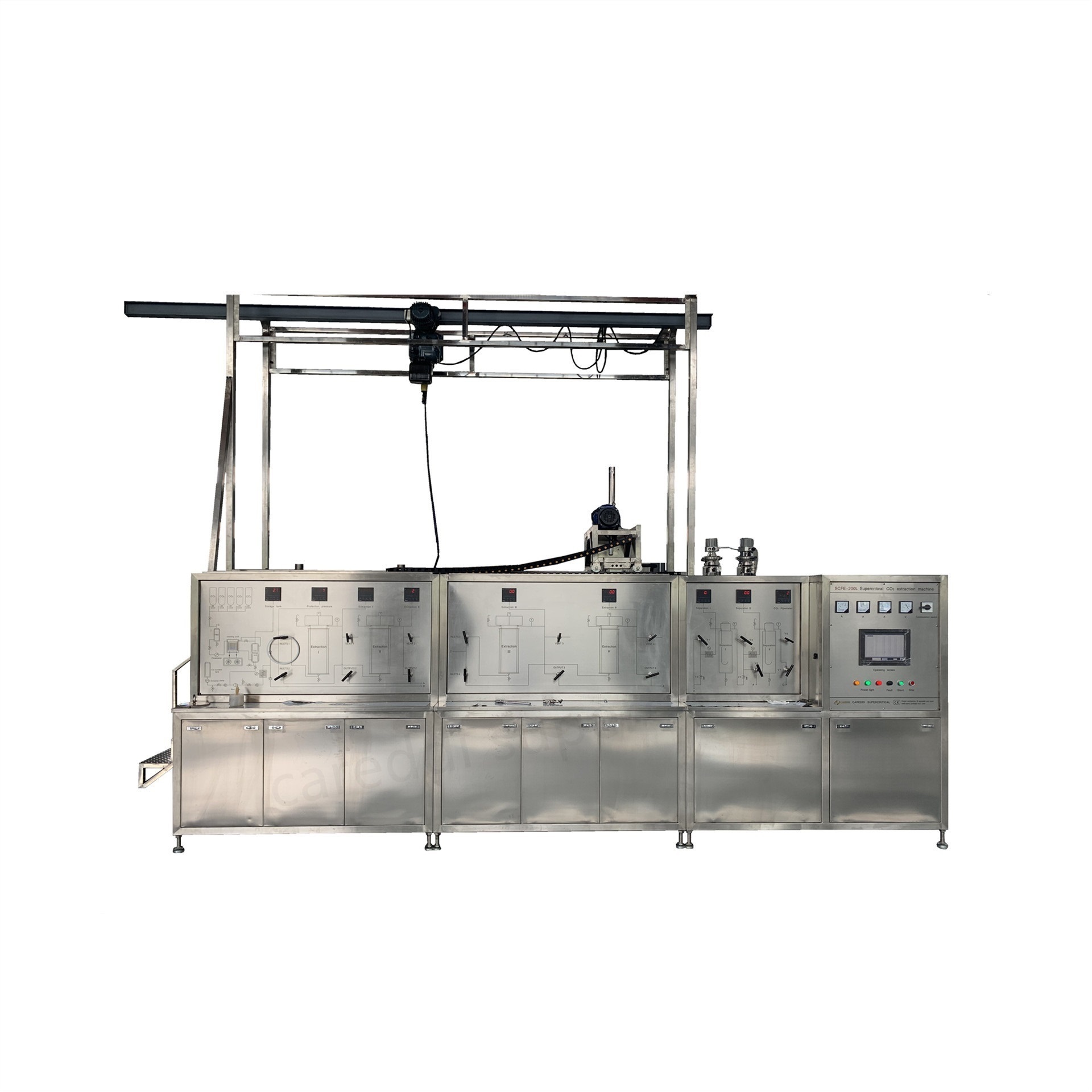

Machine Introduction
CAREDDI
supercritical CO2 extraction system
oil extraction machine
is used under high pressure and suitable temperature suitable to extract valuable content from material (solid or liquid), it is to change the pressure and temperature conditions of the separator tanks to let the dissolved substances separated out to achieve the purpose of separation. This technology could be used to make extraction and purification on biological products, foodstuff and medicines, etc.
|
NO.
|
Name
|
Parameter
|
qty
|
|
1
|
Extraction tank (Liquid and solid)
|
50L/40Mpa
|
6
|
|
2
|
Material tank(For both liquid and solid materials)
|
|
6
|
|
3
|
The stair separator
|
20L/30Mpa
|
1
|
|
4
|
The secondary separator
|
20L/30Mpa
|
1
|
|
5
|
Purification system
|
16Mpa
|
1
|
|
6
|
CO2 storage tank
|
30L/16Mpa
|
2
|
|
7
|
Cooling System
|
20,000Kcal
|
1
|
|
8
|
CO2 High-pressure pump
|
1500L/H, 40Mpa
|
1
|
|
9
|
CO-solvent pump
|
0.25-30L/H, 40Mpa
|
1
|
|
10
|
Temperature control system
|
Digital show
|
1
|
|
11
|
High pressure pipe and parts
|
304 Stainless steel
|
1
|
|
12
|
Transducer
|
304 Stainless steel
|
2
|
|
13
|
Operation platform
|
304 Stainless steel
|
1
|
|
14
|
CO2 cylinder frame/CO2
|
Carbon steel with A3 painting
|
1
|
|
15
|
CO2 Recovery system
|
|
1
|
Standard Models
|
|
Model No. |
Volume & Pressure
|
Extractors and separators |
|
1 |
SCFE-01 |
1L/50Mpa |
1 Extraction 2 Separation |
|
2 |
SCFE-02 |
2L/50Mpa |
1 Extraction 2 Separation |
|
3 |
SCFE-05 |
5L/50Mpa |
1 Extraction 2 Separation |
|
4 |
SCFE-06 |
(5+1)L/50Mpa |
2 Extraction 2 Separation |
|
5 |
SCFE-10 |
10L/40Mpa |
1 Extraction 2 Separation |
|
6 |
SCFE-10 |
5Lx2/50Mpa |
2 Extraction 2 Separation |
|
7 |
SCFE-20 |
10Lx2/40Mpa |
2 Extraction 2 Separation |
|
8 |
SCFE-48 |
24Lx2/40Mpa |
2 Extraction 2 Separation |
|
9 |
SCFE-96 |
24Lx4/40Mpa |
4 Extraction 2 Separation |
|
10 |
SCFE-100 |
50Lx2/40Mpa |
2 Extraction 2 Separation |
|
11 |
SCFE-120 |
30Lx4/40Mpa |
4 Extraction 2 Separation |
|
12 |
SCFE-180 |
30Lx6/40Mpa |
6 Extraction 2 Separation |
|
13 |
SCFE-180 |
30Lx6/40Mpa |
6 Extraction 3 Separation |
|
14 |
SCFE-200 |
50Lx4/40Mpa |
4 Extraction 2 Separation |
|
15 |
SCFE-300 |
50Lx6/40Mpa |
6 Extraction 2 Separation |
|
16 |
SCFE-300 |
50Lx6/40Mpa |
6 Extraction 3 Separation |
|
17 |
SCFE-100Lx3 |
100Lx3/35Mpa |
3 Extraction 2 Separation |
|
18 |
SCFE-200Lx3 |
200Lx3/35Mpa |
3 Extraction 2 Separation |
|
19 |
SCFE-400Lx3 |
400Lx3/35Mpa |
3 Extraction 2 Separation |
|
20 |
SCFE-600Lx3 |
600Lx3/35Mpa |
3 Extraction 2 Separation |
Detailed Images
Machine Parts
Main Features
Name:
CO2 REVOVERY SYSTEM
Brand:
CAREDDI
Original:
China
To recover extra co2 after the extraction finishes,
saving the co2
Machine Parts
Name:
COOLING SYSTEM
Brand:
CAREDDI
Original:
China
Cooling Capacity: 20000Kcal/h (air cooling)
Temperature range: -5℃～+5℃ (meet process
requirement)
Main Features
Name:
EXTRACTION TANK
Brand:
CAREDDI
Original:
China
Material: 1Cr18Ni9Ti (Stainless steel #304)
Volume: 50LX6
Max working Pressure: 40MPa
Equipped with jacket water circling heating system, temperature adjustable, equipped with material barrel for both liquid and solid material.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
|
|
|
Weight
|
15.2 T
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
