Quick Details
-
Screw Speed (rpm):
-
225 rpm
-
Place of Origin:
-
China
-
Brand Name:
-
JOY
-
Voltage:
-
380V 50HZ 3Phase(Customized)
-
Dimension(L*W*H):
-
30m*7m*5.5m
-
Power (kW):
-
320
-
Weight:
-
18000 KG
-
Automatic Grade:
-
Automatic
-
Power(W):
-
320KW
-
Color:
-
Blue
-
After sale:
-
Provide accessories for life
-
Mould:
-
Supply
-
Marketing Type:
-
Hot Product 2023
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
33:1
-
Screw diameter (mm):
-
150
-
Screw Speed (rpm):
-
225 rpm
-
Place of Origin:
-
China
-
Brand Name:
-
JOY
-
Voltage:
-
380V 50HZ 3Phase(Customized)
-
Dimension(L*W*H):
-
30m*7m*5.5m
-
Power (kW):
-
320
-
Weight:
-
18000 KG
-
Automatic Grade:
-
Automatic
-
Power(W):
-
320KW
-
Color:
-
Blue
-
After sale:
-
Provide accessories for life
-
Mould:
-
Supply
-
Marketing Type:
-
Hot Product 2023

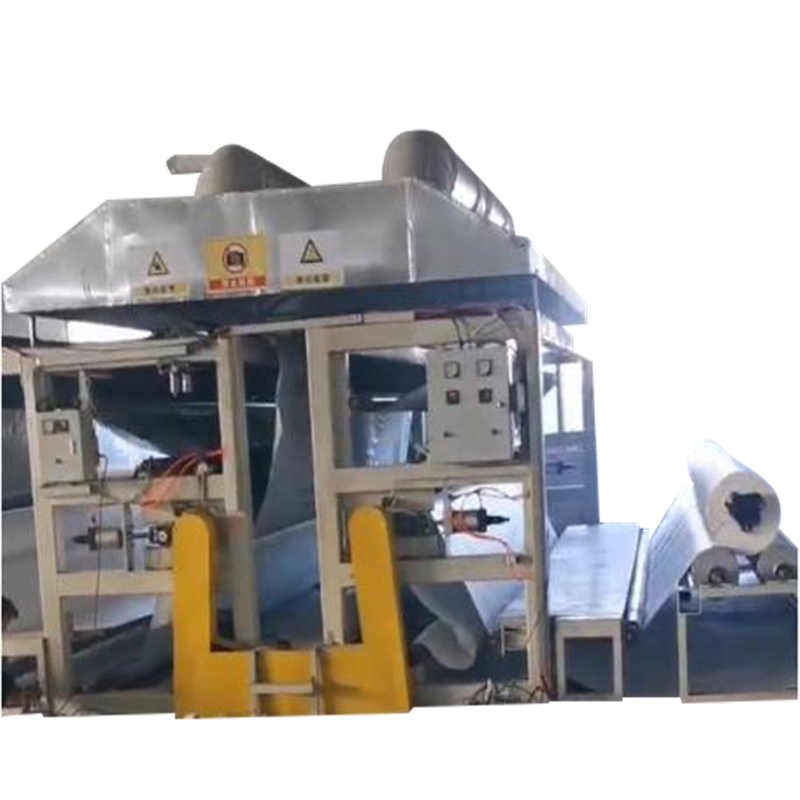

Drainage Geonet Production Line
Products Information
♦ Taking HDPE as raw material, the ribs of drainage net are extruded from special die head. Every three ribs form 3D structure with drainage channel through fixed gap and angle. The rigidity of the middle rib is high, which shapes rectangular drainage channel.
♦ The three ribs have great tensile strength and compressive strength. The drainage channel among the ribs can afford high load.It can prevent the geo-textile from imbedding the net core and ensure the channel expedites.
♦ Drainage net can be divided into two types: high strength and high channelization.
Main Technical Specification
|
Model
|
|
JG-SWW90
|
JG-SWW120
|
JG-SWW150
|
JG-SWW180
|
|
Extruder
|
|
Ø90/28
|
Ø120/30
|
Ø150/33
|
Ø180/30
|
|
Width of product
|
m
|
2500
|
3000
|
4000
|
5000
|
|
Installed capacity (approx)
|
KW
|
200
|
260
|
320
|
380
|
|
Dimensions (L×W×H) (approx)
|
m
|
22×5×3.4
|
27×6.5×5
|
30×7×5.5
|
45×8×6
|
|
Total weight (approx)
|
T
|
12
|
16
|
18
|
40
|
Details Images
Product Application
About Our Factory
Exhibition
Customers
Shipping
Contact Person
FAQ
1.Are you manufacturer or trading company?
We are manufacturer.
2.Why choose us?
We have 25 years experience for producing machine.We can arrange for you to visit our local customer's factory.
3.Delivery time: 60-90 days.
4.Payment terms:
30% of total amount should be paid by T/T as down payment, the balance (70% of total amount) should be paid before delivery by T/T
or irrevocable L/C（at sight).
5.After-sales service:
Free Spare Parts ;
Field installation, commissioning and training ;
Field maintenance and repair service ;
Video/Online technical support.
6.Warranty: 1 year.
