Quick Details
-
Place of Origin:
-
Henan, China
-
Max. temperature:
-
1700'C
-
working temperature:
-
1600C
-
heating zone Length:
-
customizable
-
constant temp. zone:
-
customizalbe
-
voltage:
-
AC220V, 50HZ or per request
-
Rated power:
-
per furnace size
-
structure:
-
double shell with fan cooling
-
heating rate:
-
0-20'C /minute
-
heating element:
-
MoSi2 heating rods
-
thermal couple:
-
B type built inside the furnace
Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
XDEM
-
Model Number:
-
XDEM-1700CVD
-
Place of Origin:
-
Henan, China
-
Max. temperature:
-
1700'C
-
working temperature:
-
1600C
-
heating zone Length:
-
customizable
-
constant temp. zone:
-
customizalbe
-
voltage:
-
AC220V, 50HZ or per request
-
Rated power:
-
per furnace size
-
structure:
-
double shell with fan cooling
-
heating rate:
-
0-20'C /minute
-
heating element:
-
MoSi2 heating rods
-
thermal couple:
-
B type built inside the furnace

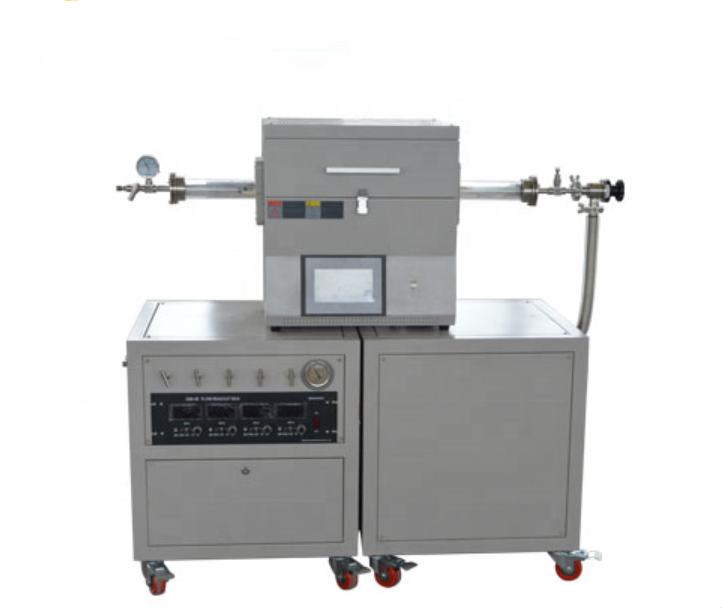

CE approval cvd diamond machine CVD vacuum tube furnace 1700C
Our CVD tube furnace are used for university, scientific research,industry for high temperature sintering,gas restore,CVD experiement,it is with quartz tube or alumina tube, vacuum pump and flow meters gas flowing system. It can mix different gases for CVD or diffusion. It has below characters:
1.Split Chamber for fast cooling and fast heating.
2.Touch screen interactive mode.
3.Uniform Temperature.
Below some technical details are for your reference:
|
Control type |
PID auto control |
|
tube diameter and length |
customizable |
|
rated power |
per tube length and diameter |
|
Voltage |
AC 220V 50/60 Hz single phase ( or according to your standard) |
|
Max. Temperature |
1700 °C (< 2 hours) |
|
Continuous work temp. |
0-1600°C |
|
Max. Heating Rate |
0-20 °C /min |
|
Temperature Accuracy |
+/- 1 °C |
|
Heating Element |
MoSi2 |
|
Thermal Couple |
B type built inside the furnace |
|
Warranty |
1 year limited warranty (Consumable parts such as thermocouple, and heating elements are not covered by the warranty, please order the replacements at related products below.) |
Wooden box packed filled with foam inside to avoid damage.
W e are professional supplier for several years in China for furnace and components. Our advantages are as below:
1.Hight quality, excellent technician. good team work;
2.OEM service.
3. factory wholesale price.
4.polyfoam filled inside the furnace and wooden carton package outside.
5.One year quality warranty for whole furnace/oven.
