Quick Details
-
Model:
-
J23
-
Slide Stroke (mm):
-
150
-
Voltage:
-
380V or customized
-
Motor Power (kW):
-
5.5
-
Nominal Force (kN):
-
630
-
Slide stroke:
-
110mm
-
Number of stroke:
-
50times/min
-
Throat depth:
-
280mm
-
Weight (KG):
-
1250
Quick Details
-
Place of Origin:
-
China
-
Weight (T):
-
300
-
Product name:
-
Punching press
-
Model:
-
J23
-
Slide Stroke (mm):
-
150
-
Voltage:
-
380V or customized
-
Motor Power (kW):
-
5.5
-
Nominal Force (kN):
-
630
-
Slide stroke:
-
110mm
-
Number of stroke:
-
50times/min
-
Throat depth:
-
280mm
-
Weight (KG):
-
1250
Products Description
Instruction for punching machine

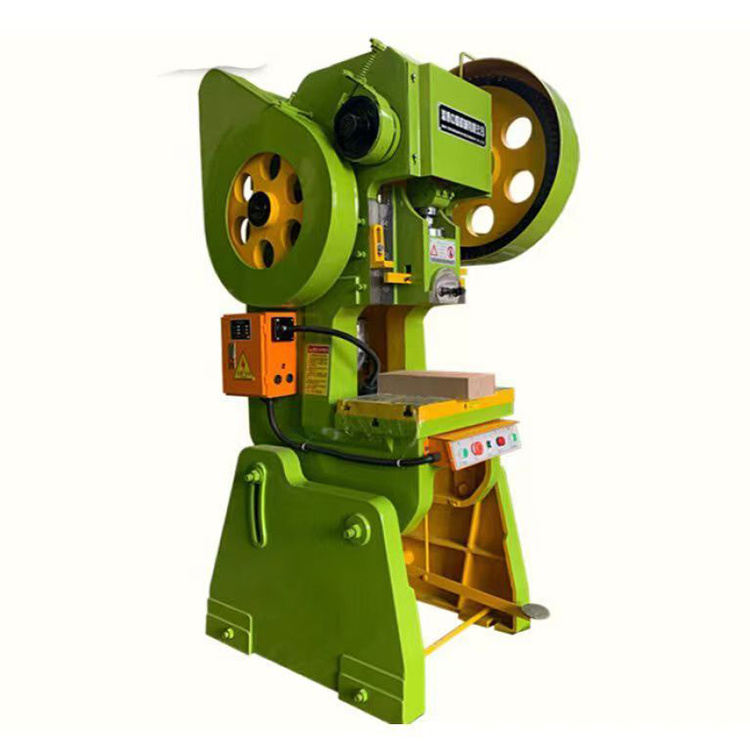

The body of the J23 inclinable punching machine can be tilted at an angle to facilitate the sliding down of the finished press or scrap from the die, and single or continuous strokes can be obtained by means of an electrically controlled press operating mechanism. When equipped with an automatic feed mechanism, semi-automatic continuous stamping is possible. The machine is novel in design, compact in structure, good in steel, easy to use, safe and reliable in operation and suitable for all kinds of cold pressing processes.
Features for punching machine
1. Its structure is simple, operation convenience, function credibility, the usage maintain convenience.
2. J23 series shut type list orders the pressure machine fuselage of airplane straight line form design, well balanced to be
subjected to dint, constant form, rigid and strong.
3. Extremely high closing height, pack the mold space big, slippery piece the piece six noodles direction, the accuracy is high stability good.
4. Outside support type especially the big machine do, exaltation the tool machine install stability, safety, inside place type,
oil road, electric circuit, beauty clean and net, have a safety, dependable type more,
5. The hand operation button the switch match pressure machine national security standard.
2. J23 series shut type list orders the pressure machine fuselage of airplane straight line form design, well balanced to be
subjected to dint, constant form, rigid and strong.
3. Extremely high closing height, pack the mold space big, slippery piece the piece six noodles direction, the accuracy is high stability good.
4. Outside support type especially the big machine do, exaltation the tool machine install stability, safety, inside place type,
oil road, electric circuit, beauty clean and net, have a safety, dependable type more,
5. The hand operation button the switch match pressure machine national security standard.
Specification
|
Item
|
Unit
|
J23-6.3T
|
J23-10T
|
J23-16T
|
J23-25T
|
J23-40T
|
J23-63T
|
J23-80T
|
|
Nominal Force
|
KN
|
63
|
100
|
160
|
250
|
400
|
630
|
800
|
|
Slide Stroke
|
mm
|
35
|
50
|
60
|
70
|
100
|
100
|
115
|
|
Number of Stroke
|
Times/min
|
150
|
140
|
100
|
70
|
50
|
50
|
45
|
|
Closed Height
|
mm
|
200
|
200
|
250
|
290
|
380
|
380
|
410
|
|
Closed Height Adjustment
|
mm
|
30
|
40
|
40
|
40
|
60
|
60
|
60
|
|
Throat Depth
|
mm
|
130
|
130
|
180
|
200
|
250
|
280
|
280
|
|
Column Distance
|
mm
|
160
|
170
|
200
|
230
|
320
|
350
|
360
|
|
Table Size Front and back
|
mm
|
200
|
230
|
280
|
330
|
420
|
450
|
500
|
|
Table Size Left and right
|
mm
|
350
|
370
|
450
|
530
|
640
|
700
|
750
|
|
Slide bottom size Front and back
|
mm
|
140
|
100
|
130
|
170
|
190
|
220
|
250
|
|
Slide bottom size Left and right
|
mm
|
140
|
145
|
180
|
200
|
250
|
310
|
300
|
|
Shouk Dimension Diameter
|
mm
|
30
|
30
|
35
|
40
|
50
|
50
|
60
|
|
Shouk Dimension Depth
|
mm
|
45
|
50
|
60
|
60
|
100
|
100
|
100
|
|
Thickness of table
|
mm
|
30
|
30
|
40
|
45
|
70
|
80
|
90
|
|
Dimension
Front and back
|
mm
|
700
|
740
|
900
|
1000
|
1400
|
1500
|
1600
|
|
Dimension Left and right
|
mm
|
550
|
600
|
780
|
830
|
1100
|
1200
|
1300
|
|
Dimension Height
|
mm
|
1450
|
1500
|
1720
|
1950
|
2300
|
2400
|
2600
|
|
Motor Power
|
KW
|
1.1
|
1.5
|
2.2
|
2.2
|
3
|
4
|
7.5
|
|
Weight
|
kg
|
300
|
350
|
700
|
1100
|
2400
|
3100
|
4000
|
