Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD 2
-
Place of Origin:
-
Shandong China
-
Brand Name:
-
magick
-
Marking Head Brand:
-
magick
-
Weight (KG):
-
50 KG
-
Core Components:
-
Laser Source
-
Product name:
-

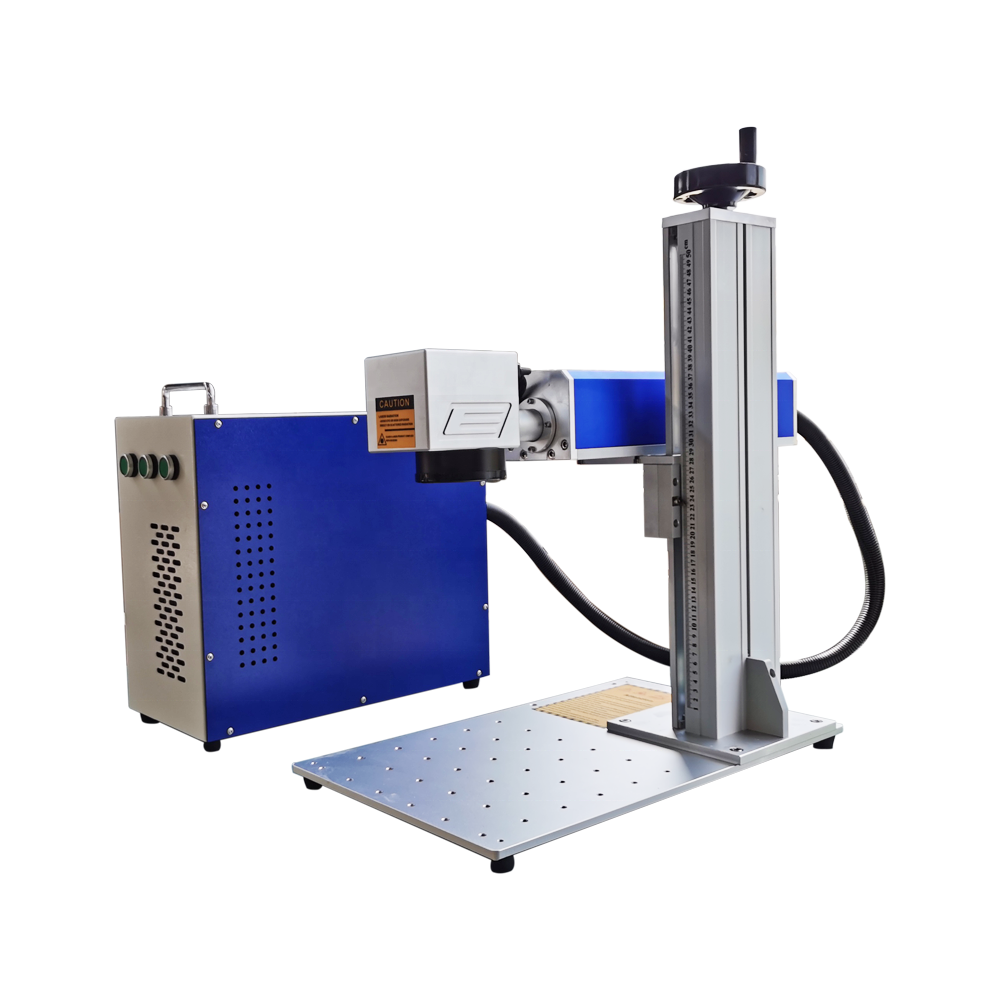

portable mini fiber laser marking machine
-
Applicable Material:
-
Metal Plastic
-
Laser source:
-
DAVI,Leiye ,Synrad,Coherent
-
Laser Power:
-
20W /30w/ 50w(Optional)
-
Keywords:
-
Fiber Laser Markng Machine
-
Marking Speed:
-
1-8000mm/s
-
Laser wavelength:
-
10.64um
-
Marking Depth:
-
0.01~0.3mm
-
Type:
-
Fbier Laser
-
Marking area:
-
110*110mm/175*175mm/200*200mm/300*300mm
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
PLT, BMP, DXP, JPG
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD 2
-
Place of Origin:
-
Shandong China
-
Brand Name:
-
magick
-
Marking Head Brand:
-
magick
-
Weight (KG):
-
50 KG
-
Core Components:
-
Laser Source
-
Product name:
-
portable mini fiber laser marking machine
-
Applicable Material:
-
Metal Plastic
-
Laser source:
-
DAVI,Leiye ,Synrad,Coherent
-
Laser Power:
-
20W /30w/ 50w(Optional)
-
Keywords:
-
Fiber Laser Markng Machine
-
Marking Speed:
-
1-8000mm/s
-
Laser wavelength:
-
10.64um
-
Marking Depth:
-
0.01~0.3mm
-
Type:
-
Fbier Laser
-
Marking area:
-
110*110mm/175*175mm/200*200mm/300*300mm
20w/30w/50w/100w/120w white/black/color fiber laser marking machine price /fiber laser engraver/laser marker on metal
1).Materials:
Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card )
Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)
2).Industry:
Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.
1 Long lifetime, over 100,000 hours.
2. Compact laser source with air cooling.
3. 2 to 5 times more productive a traditional laser marker or laser engraver.
4. High accuracy and repeatability for correct marks each time with galvanometer scanners and electronic controls.
More stable performance.
5. Professional control board and marking software. The software controlling system has the interface of windows and comprises files output by software such as Coreldraw, AutoCAD, Photoshop etc. It can support various file formats such as PLT,DXF,PCX,BMP etc.
|
Model Type |
MK-20S |
|
Max laser power |
20W/30W |
|
Marking area |
100*100/200*200/300*300mm |
|
Laser type |
fiber laser |
|
Laser source |
Raycus/MAX/JPT/IPG |
|
Laser repetition frequency |
≤50KHZ |
|
Marking speed |
8000mm/s |
|
Laser waver-length |
10.64u m |
|
Marking depth |
0.01mm---0.3mm |
|
Min. Line width |
0.015mm |
|
Min.character size |
0.4mm |
|
Repetition accuracy |
±0.01mm |
|
Cooling mode |
Air cooling or water cooling |
|
Total power consumed |
≤2KW |
|
Power supply |
220V/380V(50-60HZ) |
|
Suction machines |
optional |
Pre-sale service
* Free sample marking
For free sample testing, please send us your file, we will do marking here and make video to show you the effect,or send sample to you for checking quality.
*Customized machine design
According to customer's application, we may revise our machine accordingly for customer's convenience and high production efficiency.
After-sale Service
*Before delivering the machine, we will test and adjust it, so you can use it directly when you get it.
* If you have problems while using, 24hours online professional advice available.
*Lifetime software free upgrades.
* Fiber laser source we warranty for 3 years ,the other parts warranty for 2 years.
