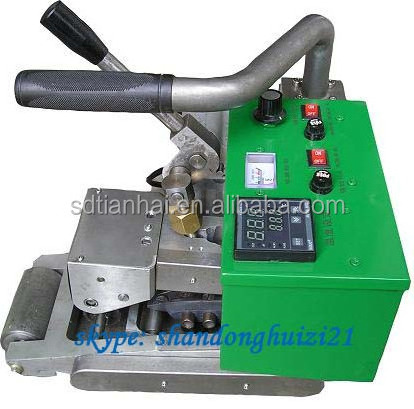

China PE welding machine/HDPE geomembrane welding machine

China PE welding machine/HDPE geomembrane welding machine

1,Item no. : T900

2,Voltage:220V

3,Frequency:50/60Hz

4,Power:1800W

5,Welding speed:0.5-5m/min

6,Heating temperature:0-450°C

7,Thickness of material:1.0mm-3.0mm

8,Overlap width: 12cm

9,Welding width: 15mm×2, interior cavity 15mm

10,Seam strength:≥85% base material

11,Weight:13kgs

12,Insulation class:class II

800 welding machine

Voltage: 220v
Frequency: 50/60Hz
Power: 800W/1000W
Welding speed: 0.5-5m/min
Heating temperature: 0-450℃
Thickness of material to be welded:
0.2mm-1.5mm
Overlap width: 10cm
Welding width: 12.5mm×2, interior
cavity 12mm
Seam strength: ≥85% base material
(tensile resistant in shear direction)
Weight: 5Kg
Insulation class: class II

1. Introduction

geo-membrane welding machine is our new developed products, which

can weld geo-membrane of various thickness and are applicable for welding of all

thermalfused material such as LDPE,PVC,HDPE,EVA,PP and so on.

The control of this series of welding machine adopts PID automatic thermostatic control

with high control accuracy and low temperature fluctuation; speed control adopts PWM

automatic voltage and the operating is stable. It can maintain a constant speed on the

condition of creeping, vertical creeping and variable road load. Also this series of welding

machine is stable in performance despite of external temperature and voltage variation.

This series of welding machine is excellent in performance and easy for operating, with

high welding speed and good work quality. It is extensively used in engineering projects

such as expressways, tunnels, reservoirs, waterproof of construction and so on.

Operation principle

Motor drives upper and lower pressure rollers to rotate through reduction gearbox and chain.

Slide carriages drive the hot wedge and insert it between the two base materials, at the same

time lever presses pressure rollers and engages the two fused base materials.
