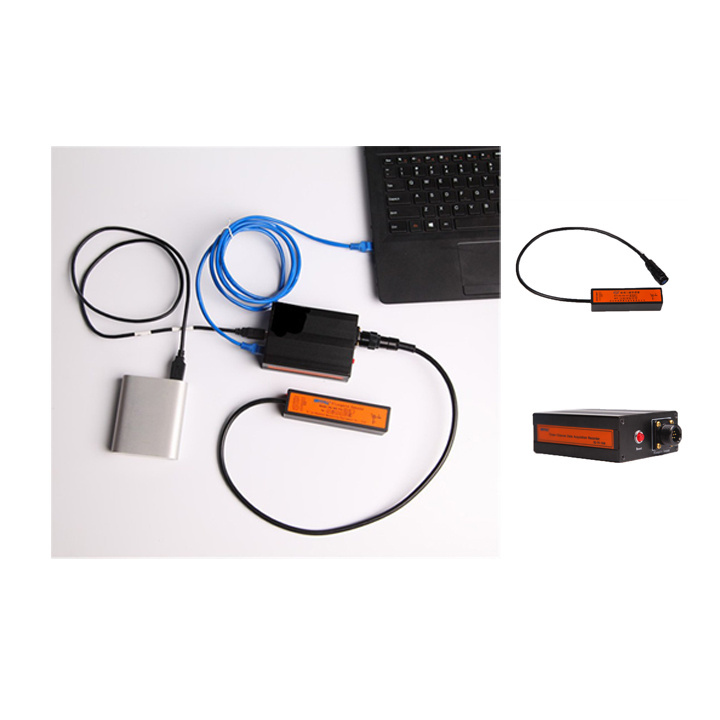

The geophysics UAV drone fluxgate magnetometer consists of a tri axis fluxgate sensor, a data acquisition module, and host computer software.

The portable power supply or voltage-stabilized power supply provides power to data acquisition module and sensor. Analog signal, output by the magnetic sensor, is acquired by acquisition module in real time and converted by high speed AD converter. After conversion, the signal is transmitted to host computer through cable or TCP /IP protocol and can be displayed in two ways with the assistance of software: dimensional waveform or data. Another advantage of the uav magnetometer system is that it allows the user to save generated data for later use.

Application Domain

·             Spacial magnetic field Measurement

·             Environmental magnetic field monitoring

·             Shielding effect testing

·             Magnetic field characteristics identification

·             Multidimensional magnetic field description

·             Alternating-current magnetic field measurement

·             UAV Airborne magnetic inspection

·             Remanence detection

1. Main Hardware of Geophysics UAV drone fluxgate magnetometer

1.1 Data Acquisition Module

1)          Size: 35mm×76mm×100mm

2)          Functional Interface: Ethernet interface, USB-B interface, Mini0-USB interface, Magnetic sensor interface

3)          Light: Power indication, Status indication

4)          Switch setting: Reset switch

Figure 2. Data Acquisition Module

1.2 Fluxgate Magnetic sensor

1)          Name: Three-Axis Low-Noise Fluxgate Sensor

2)          Model: HS-MS-FG3LN-100

3)           Parameters

Figure 3. Fluxgate Sensor

2. Precautions

Users should notice 4 indicating lights of portable power supply , which indicate the remaining power. Always make sure that there is enough power. If low battery is indicated, please charge it.

If users intend to use a different power supply, please contact our after-sale service personnel in advance to ensure normal operation of magnetometer.

3.  Performance

3.1 Electrical Parameter

3.2 Mechanical Parameter

3.3 Function and Mode
