Quick Details
-
Weight:
-
180g
-
Width:
-
max 2800mm
-
Standing Temperature:
-
-60-300 degree
-
Coating:
-
Ptfe Coating
-
Size:
-
max width 2800mm
-
Certificate:
-
yes
-
Keyword:
-
tefloning PTFE fiberglass fabrics
-
Sample:
-
Availiable
-
Thickness:
-
0.08-1 mm
-
MOQ:
-
50meters
-
Colors:
-
brown or white
-
Usage:
-
bottle washer, paint spraying curtains ,food package, acid protection
Quick Details
-
Application:
-
Fiberglass Mesh Cloth
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Esone
-
Weight:
-
180g
-
Width:
-
max 2800mm
-
Standing Temperature:
-
-60-300 degree
-
Coating:
-
Ptfe Coating
-
Size:
-
max width 2800mm
-
Certificate:
-
yes
-
Keyword:
-
tefloning PTFE fiberglass fabrics
-
Sample:
-
Availiable
-
Thickness:
-
0.08-1 mm
-
MOQ:
-
50meters
-
Colors:
-
brown or white
-
Usage:
-
bottle washer, paint spraying curtains ,food package, acid protection

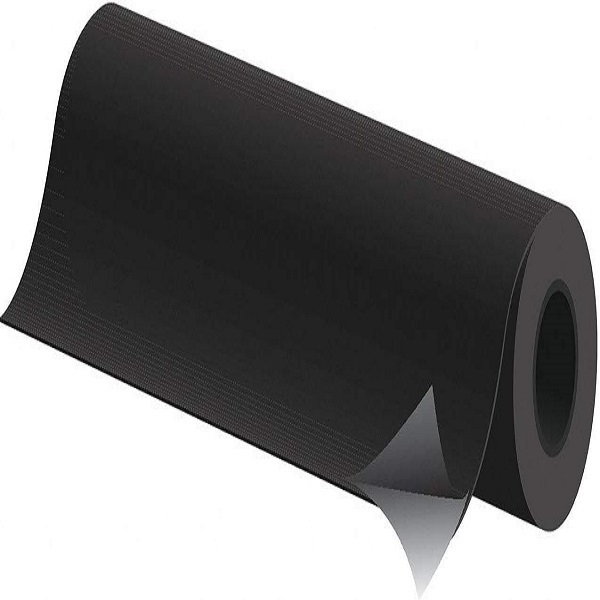

PTFE tefloning coated fiberglass fabrics coated with medium level of PTFE resin. It is mostly used in applications of heat sealing, release sheets, belting and nonstick sheets for laminating. It's not expensive with acceptable quality.
| model | COLOR | MAX WIDTH(MM) | THICKNESS(MM) | WEIGHT(g/sqm) | PTFE CONTENT(%) |
| YS9008A | WHITE | 1250 | 0.08 | 150 | 67 |
| YS9010G | W | 1250 | 0.10 | 220 | 53 |
| YS9011A | W | 1250 | 0.11 | 220 | 53 |
| YS9011AJ | BROWN | 1250 | 0.11 | 220 | 53 |
| YS9012AJ | BN | 1250 | 0.12 | 240 | 57 |
| YS9023AJ | BN | 2800 | 0.23 | 490 | 59 |
| YS9030AJ | BN | 2800 | 0.30 | 620 | 53 |
many size avaliable
Anti-static release sheet & belt ptfe coated glass cloth
We start from fiberglass yarn, weave it into different thickness and width of fiberglass fabric, impregnated with fine PTFE dispersion and dry it under 380'℃ high temperature.
1.Premium-A+ Grad ptfe Fabric
Featuring an extra heavy coating of PTFE, Premium- A Grade Fabric delivers a super-smooth surface, perfect for advanced applications, including:
Release sheets for cooking and baking applications
Laminate separator sheets
Specialized heat-sealing
Demanding, non-stick applications
2.Standard-A Grade PTFE Fabric
With a smooth surface and superb non-stick properties, Standard-A Grade Fabric serves the widest range of applications, including:
Release sheets on heat-sealing machines and laminate presses
Non-stick surfaces for paints, adhesives and food products
Gaskets, seals and bearings for chemicals, oils and gases
Thermal insulation for high-temperature and chemical-resistant applications
Covers for hot plates, platens, chutes, hoppers, troughs and rolls
3.Mechanical-B+ Grade PTFE Fabric
Designed to deliver resistance to high temperatures and chemicals, Mechanical-B Grade Fabric utilizes a medium coating of PTFE.
Typical applications include chemical-resistant laboratory aprons and protective curtains, such as;
Bottle washers and paint spraying curtains
Food packaging
Acid protection
For your special requirements , just contact us for more details.
