Quick Details
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
ZHDBJ-609
-
Warranty:
-
12 Months
-
Product Name:
-
Vertical Tire Stripping Machine
-
Model:
-
ZHDBJ-609
-
Applicable Steel Ring Diameter:
-
12-24.5"
-
Maximum Tire Diameter:
-
1300mm
-
Maximum Tire Widt:
-
500mm
-
Rated Voltage:
-
380V/3PH/50Hz
-
Rated Power:
-
3KW
-
Rated Curren:
-
6.5A
-
Weight:
-
710kg
-
Certification:
-
CE
Quick Details
-
Motor Power:
-
3KW
-
Operating Pressure:
-
10-12Mpa
-
Power Supply:
-
380V/3PH/50Hz
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
ZHDBJ-609
-
Warranty:
-
12 Months
-
Product Name:
-
Vertical Tire Stripping Machine
-
Model:
-
ZHDBJ-609
-
Applicable Steel Ring Diameter:
-
12-24.5"
-
Maximum Tire Diameter:
-
1300mm
-
Maximum Tire Widt:
-
500mm
-
Rated Voltage:
-
380V/3PH/50Hz
-
Rated Power:
-
3KW
-
Rated Curren:
-
6.5A
-
Weight:
-
710kg
-
Certification:
-
CE
Products Description

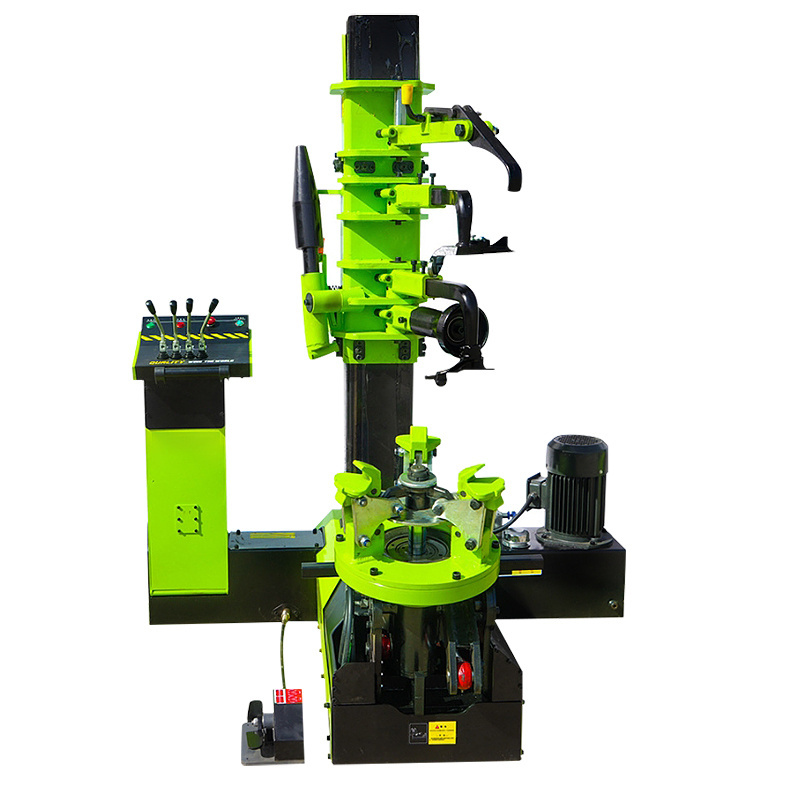

Heavy Pneumatic Vacuum Type Portable Tire Changer 380V 12-24.5" Automatic Vertical Tire Stripping Machine For Truck
The Vertical Tire Stripping Machine is a commonly used tire removal equipment. In addition to the basic tire stripping and installation functions of a tire stripping machine, it also has stronger carrying capacity and higher lifting height.
Removable tire model size 15/16/17.5/22.5/24.5-inch vacuum tires
for light
trucks,
buses,
trucks, etc.15/16/18/20-inch and other beaded tires with inner tubes.
High-quality motor with pure copper winding to ensure low defect rate and longer life Top-level
High-quality motor with pure copper winding to ensure low defect rate and longer life Top-level
motor and pure copper winding provide more power faster heat dissipation, lower defect rate, and longer service life

Specification


Product Name
|
Vertical Tire Stripping Machine
|
Model
|
ZHDBJ-609
|
Rated Voltage
|
380V/3PH/50Hz
|
Rated Power
|
3KW
|
Rated Current
|
6.5A
|
Working Oil Pressure
|
10-12Mpa
|
Spinning Speed
|
≧8 laps/minute
|
Applicable Tire Types
|
Tubeless and tubed tires
|
Noise
|
70fdb
|
Applicable Steel Ring Diameter
|
12-24.5"
|
Maximum Tire Diameter
|
1300mm
|
Maximum Tire Width
|
500mm
|
Center Hole Diameter
|
120-320mm
|
Dimensions
|
1480*1150*1800mm
|
Packing Size
|
1630*1300*2000mm
|
Net Weight
|
692kg
|
Including Pallet Weight
|
709kg
|

Removable Tire Model Size
15/16/17.5/22.5/24.5-inch vacuum tires for light trucks, buses, trucks, etc. 15/16/18/
20-inch and other beaded tires with inner tubes.
Integrated Ring Gear
Splicing the ring gear can easily cause early
gear wear and toothing failure, and shorten
the service life. The ring gear is integrally
finished and formed, which solves the
problem of loose fixing screws and has a
long service life.
Ultra-Low Temperature And High Pressure Oil Pipe
The ultra-low temperature and
high-pressureoil pipe we use is more flexible
than ordinaryoil fume pipes, more
wear-resistant, corrosion-resistant, and
low-temperature resistant, and can be used at
minus 40 degrees Celsius.
Base Protective Cover
A base protective cover is added to prevent
the oil cylinder from being contaminated
and causing malfunctions. It also protects
the slideway and oil cylinder from wind and
sun oxidation of the oil pipe, thereby
extending its service life.
Emergency Stop Switch
An emergency stop switch is added to the
panel, and the equipment will stop
immediately when pressed urgently to
protect personal safety.
Silent Pump Station
Our motors are pure copper motors. It has
low working noise, strong tolerance to oil
products, and low failure rate.
Integrated Mechanical Foot Switch
Ordinary pedals are connected by oil pipes,
which have low control sensitivity and are
prone to failure. Our pedals are one-piece
mechanical pedals with low failure rate, high
sensitivity and long service life.
