Quick Details
-
Brand Name:
-
Rayman
-
Model Number:
-
RM-S60
-
Quality Certification:
-
CE ISO
-
Product name:
-
Ultrasound Machine
-
Brand:
-
Rayman
-
Color:
-
Grey,Black
-
Weight:
-
66kg
-
Size:
-
85*64*110cm
-
Language:
-
Chinese / English / Spanish
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Rayman
-
Model Number:
-
RM-S60
-
Quality Certification:
-
CE ISO
-
Product name:
-
Ultrasound Machine
-
Brand:
-
Rayman
-
Color:
-
Grey,Black
-
Weight:
-
66kg
-
Size:
-
85*64*110cm
-
Language:
-
Chinese / English / Spanish

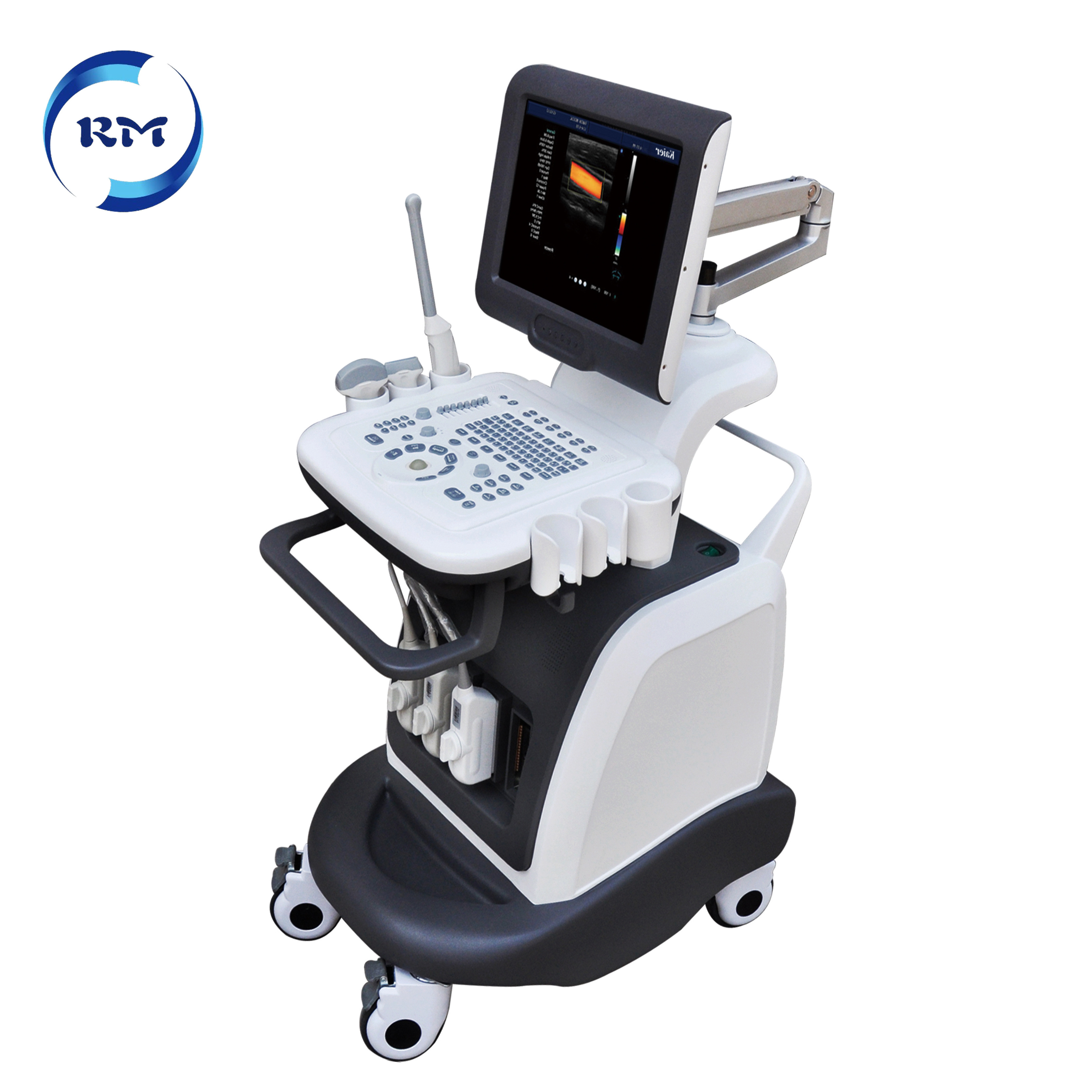

High quality 4d trolley doppler diagnostic ultrasound scanner veterinary ultrasound machine
Product Description
RM-S60 technical parameters
1.Equipment name：
Color Doppler ultrasound diagnosis system
2.Equipment use :
Abdomen, gynecology, obstetrics, pediatrics, Urology, transvaginal, superficial, blood
vessels, small organs, abdomen, pediatrics.
3.System language ：
Chinese / English / Spanish operating system and language environment, which can be extended to support other languages according to user needs;
High quality 4d trolley doppler diagnostic ultrasound scanner veterinary ultrasound machine
High quality 4d trolley doppler diagnostic ultrasound scanner veterinary ultrasound machine
High quality 4d trolley doppler diagnostic ultrasound scanner veterinary ultrasound machine
Dual screen dual system telemedicine system
Using dual-screen dual-system configuration, with ultrasound imaging system
And Internet workstation system dual-engine platform, through the instrument
Comes with WIFI link Internet software to realize image and video transmission
Remote guidance from experts, real-time online training, etc.
Using dual-screen dual-system configuration, with ultrasound imaging system
And Internet workstation system dual-engine platform, through the instrument
Comes with WIFI link Internet software to realize image and video transmission
Remote guidance from experts, real-time online training, etc.
Sales points:
1.The probe automatically recognizes and intelligently monitors
2.Professional color Doppler ultrasound workstation operating software
3.Backlit keyboard, convenient operation process
4.Support printing of exquisite graphic reports
5.Comes with wifi connection and internet telemedicine
6.Powerful measurement function software package
1.The probe automatically recognizes and intelligently monitors
2.Professional color Doppler ultrasound workstation operating software
3.Backlit keyboard, convenient operation process
4.Support printing of exquisite graphic reports
5.Comes with wifi connection and internet telemedicine
6.Powerful measurement function software package
Main parameters of two-dimensional gray-scale imaging
1) Gain adjustment: B / M can be adjusted independently
2) STC section adjustment 8 sections
3) 7 false colors
4) Maximum scanning depth of the system ≥ 300mm
5) Two dimensional image gain adjustment range ≥ 150db, continuously adjustable
6) Maximum image magnification ≥ 10 times
7) Emission beam focusing: 4 focal points
8) Sound power ≥ 15, visual and adjustable, step 1
9) Preset conditions: preset the inspection conditions of the optimized image for different inspection organs to reduce the adjustment during operation, as well as the external adjustment and combined adjustment commonly required.
10）Sector scanning angle: 10°- 50︒selection
11) Clipboard image storage function in real-time diagnosis state
12) Receiving mode: multi beam signal parallel processing
Display mode:
velocity variance display, energy display, velocity display, independent variance display, two-dimensional image /spectrum Doppler / color blood flow imaging three synchronous display
Display position:
Display position:
adjustment: linear array scanning, image range of interest: - 10 ° - + 10 °
1.B mode
2.M mode
3.Color (color Doppler) mode
4.PDI (Power Doppler) mode
5.PW (Pulse Doppler) mode
Application
Specification
|
Item
|
Value
|
|
Equipment use
|
Abdomen, gynecology, obstetrics, pediatrics, Urology, transvaginal, superficial, blood vessels, small organs, abdomen, pediatrics.
|
|
Image storage
|
1) Storage: it can store static and dynamic images of hard disk and USB flash disk
2) Image management and recording device: hard disk and U disk storage 3) Ultrasonic image archiving and medical record management function: complete the storage, management and playback of patient static and dynamic images in the host |
|
playback
|
Playback: gray scale image playback ≥ 1000
|
|
Standard configuration
|
1) One host
2) One 15 inch LCD 3) One 3.5MHz frequency conversion convex array probe 4) One 7.5MHz frequency conversion linear array probe 5) One 6.5mhz frequency conversion cavity probe 6) One manual 7) One power cord 8) One grounding wire |
Certificate Display
Packing & Delivery
Packed in wooden case to ensure transport safety
