Quick Details
-
Internal Dimensions(l x W x H)(mm):
-
5456x 2294 x 2273 mm
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
LTI
-
Name:
-
20ft reefer container
-
Brand:
-
Longteng
-
Keyword:
-
refrigerated container
-
Function:
-
Freezing
-
Certification:
-
CSC
-
Approval:
-
CCS ABS BV GL Certified
-
Color:
-
Client Request
-
Application:
-
Storge Cargoes
-
MOQ:
-
1 Piece
-
Port:
-
Tianjin Shanghai Ningbo Qingdao Port etc.
Quick Details
-
Type:
-
Reefer Container
-
Capacity:
-
28.4 cbm
-
External Dimensions(l x W x H)(mm):
-
6058 x 2438 x 2591 mm
-
Internal Dimensions(l x W x H)(mm):
-
5456x 2294 x 2273 mm
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
LTI
-
Name:
-
20ft reefer container
-
Brand:
-
Longteng
-
Keyword:
-
refrigerated container
-
Function:
-
Freezing
-
Certification:
-
CSC
-
Approval:
-
CCS ABS BV GL Certified
-
Color:
-
Client Request
-
Application:
-
Storge Cargoes
-
MOQ:
-
1 Piece
-
Port:
-
Tianjin Shanghai Ningbo Qingdao Port etc.
Hot Sale Products
Product Description

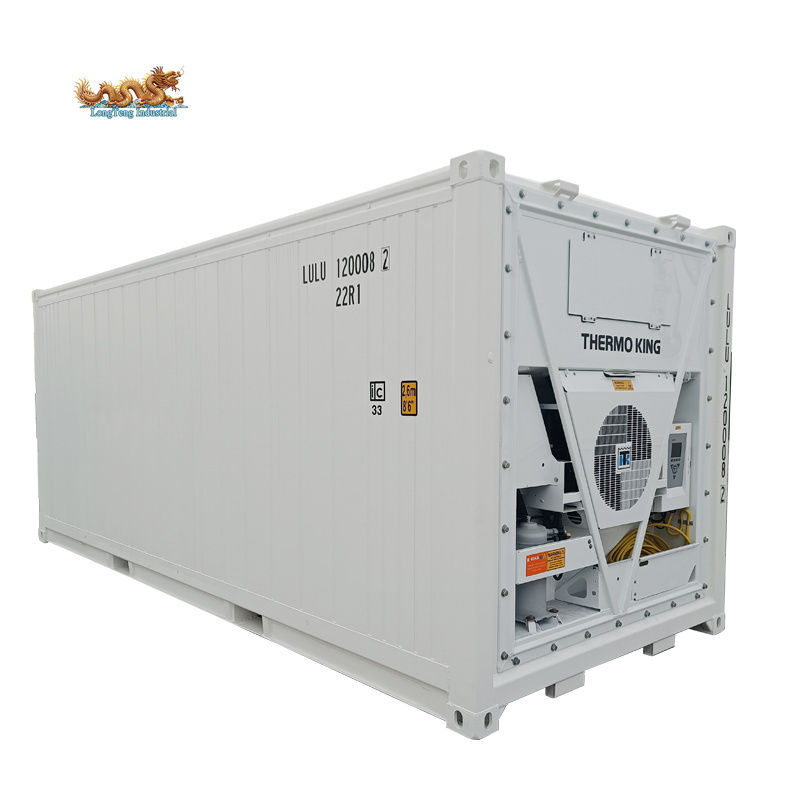

Cold Storage Thermo King 20ft Reefer Container
Refrigerated containers provide customers consistent temperature controlled space. Also know as reefers, these containers are a perfect solution for cold storage. Consider these units as on-site walk-in refrigerators and freezers. Portables 360 units can chill, refrigerate, or freeze the cargo loaded inside. If it’s food at a sporting event or wedding, you’ll love the convenience of renting a cold storage unit.
Machine Available: Daikin, Carrier, Thermo King
MOQ: 1 pc
Approval: ABS, BV, CCS, DNV·GL certificate.
Product Specification
|
Thermo King 20ft Reefer Container
|
|
|
||
|
|
Dimension
|
MM
|
||
|
External
|
Length
|
6058
|
||
|
|
Width
|
2438
|
||
|
|
Height
|
2591
|
||
|
Internal
|
Length
|
5456
|
||
|
|
Width
|
2294
|
||
|
|
Height
|
2273
|
||
|
Door Opening
|
Width
|
2290
|
||
|
|
Height
|
224
|
||
|
Inside Cubic Capacity
|
|
CU.M
|
||
|
|
|
28.4
|
||
|
Cargo access weight
|
|
2221 mm
|
||
|
Maximum Gross Weight
|
|
30480 kgs
|
||
|
Tare Weight
|
|
3000 kgs
|
||
|
Payload
|
|
27480 kg
|
||
|
Heat leakage value
|
|
21 kcal/deg.c.hr
|
||
|
Max. air leakage value
|
|
4 cu.m/hr
|
||
|
|
Machine available
|
Daikin, Carrier, Thermo King
|
||
|
|
Cooling capacity
|
6300/5580/AT-18℃ Inside
+38℃ Outside
|
||
|
|
Main Circuit
|
3 Phrase AC 440, 460V/380, 400 415
|
||
|
|
Consumption
|
MAX. 13.6
|
||
|
|
Temperature Inside
|
-30℃~+30℃
|
||
|
|
Structure
|
MGSS
|
||
|
|
Frame
|
Corten steel
|
||
|
|
Corrugated subfloor
|
MGSS
|
||
|
|
Refrigerant
|
R134A
|
||
|
|
Internal lining
|
HGSS
|
||
|
|
Roof
|
AL.
|
||
|
|
T-floor
|
AL.
|
||
Packing & Delivery
Non package requirements. There are 2 methods to delivery:
1. Loading your own cargoes in China, we called SOC-Need have cargoes in China. It should to
pack the goods well to prevent it damaging the side panels of the reefer container.
2. It also can ship empty for refrigerated container.
Our Advanage
FAQ
Q:
Which cooling units you offer?
A:
Most of our reefer containers are equipped with Thermo King, Carrier or Daikin. They are world-class.
Q: Color & logo can be choose?
A: No problem.
Q:
Could I load my goods in your cold storage container?
A:
Sure. It's called SOC. And need to
pack the goods well to prevent it damaging the side panels of the reefer container. The material of the side panels is much expensive.
Q: Do you provide OEM service?
A: Yes, we have a first-class team and could design as per your requirement.
