Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HM
-
Model Number:
-
HM-CX1303-21P
-
pitch:
-
21mm
-
materials:
-
PA66 iron
-
rating:
-
1A 250VAC/3A 250VAC
-
functions:
-
off L1 L2 L3
-
model:
-
ceiling fan speed control switch
Quick Details
-
Protection Level:
-
1
-
Max. Current:
-
3A/5A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HM
-
Model Number:
-
HM-CX1303-21P
-
pitch:
-
21mm
-
materials:
-
PA66 iron
-
rating:
-
1A 250VAC/3A 250VAC
-
functions:
-
off L1 L2 L3
-
model:
-
ceiling fan speed control switch

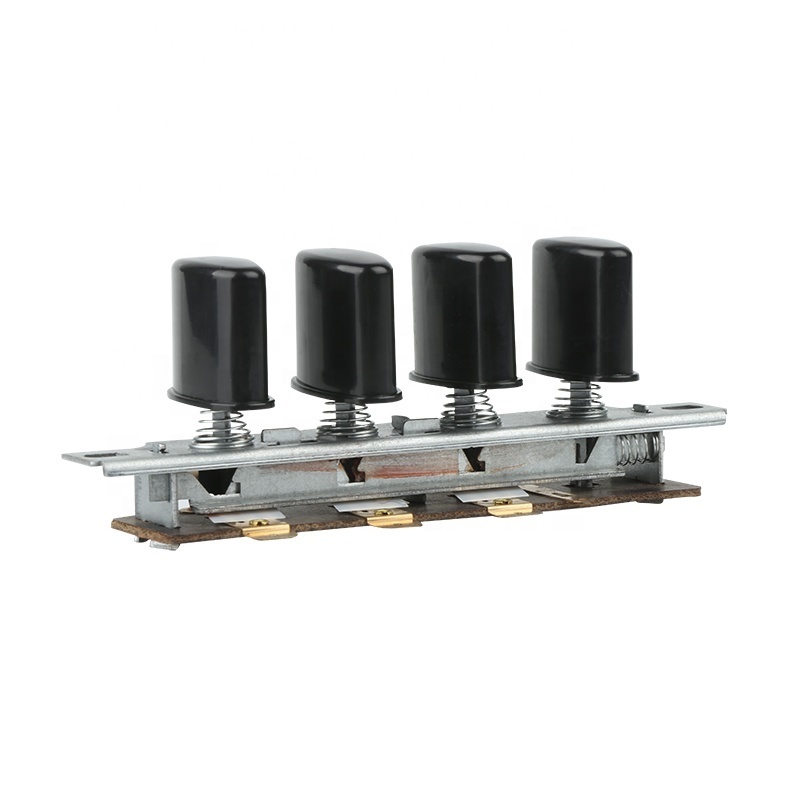

4 position ceiling fan pull speed control switch
photo &demensions
specifications
|
Electrical Rating |
1A250V AC, 4A250V AC |
|
Button distance |
13.5mm 16mm 18mm 21mm .... |
| Temp(C) | 80°C |
| Circuit/ Functions | OFF L1 L2 L3/OFF L1 L2 Momentary |
| Wiring specifications | 22-18AWG UL1015 |
| The keyboard distance | 13.5mm 16mm, 18mm 21mm |
| Wire Connect |
Soldering wires or Inserting wires (without terminals outside) |
| life time |
10000cycles |
materials:
| Housing: PC /PBT/PA66 | |
| Cover: PC /PBT/PA66 | |
| Push block: PA66 | |
| Actuating Tip: Copper Button: Stainless steel or iron | |
| Locking Plate: Zinc Plating Iron Blocking Plate: steel/iron | |
| Terminal Spring: stainless steel Stationary terminal: Copper alloy | |
| Spring: Steel |
