Quick Details
-
speed:
-
Adjustable
-
Speed measuring range:
-
1KM/H-250KM/H
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
xinan
-
Product name:
-
simulation radar speed detector
-
speed:
-
Adjustable
-
Speed measuring range:
-
1KM/H-250KM/H
Product Description
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
Brand Name
|
xinan
|
|
Product name
|
simulation radar speed detector
|
|
speed
|
Adjustable
|
|
Speed measuring range
|
1KM/H-250KM/H
|

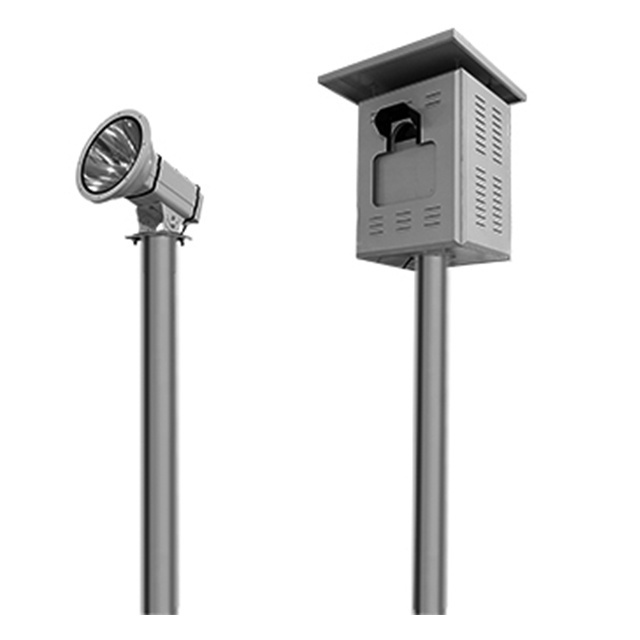

This is a simulation radar speed detector. It can detect 100 meters of long-distance
vehicle speed, and the speed measurement accuracy can reach 1 KM/h
vehicle speed, and the speed measurement accuracy can reach 1 KM/h
Technical parameters of radar：
Frequency range: 24.125GHz (customizable frequency)
◆ Modulation mode: CW detection of moving vehicle cart>150 m trolley>100 m。
◆ Support UART232 (3.3VTTL level) and RS485 interface (baud rate 9600bps)
◆ Speed measuring range 1KM/H-250KM/H
◆ The velocity measurement error is less than ± 1KM/H (when the angle between the direction of motion and the radar beam azimuth
is zero)
◆ Voltage: 9-24V, current: 130mA@12V
◆ output power（EIRP）：20dBm
◆ Antenna angle: elevation 20 °, horizontal 36 ° (3dB beam width, actual detection angle greater than 4 lanes)
◆ Sensor size：69*53*5mm
