Ac single phase dc 12v 24v 48v 72v ac 120v 220v 3000va hybrid pure sine wave car power battery inverter

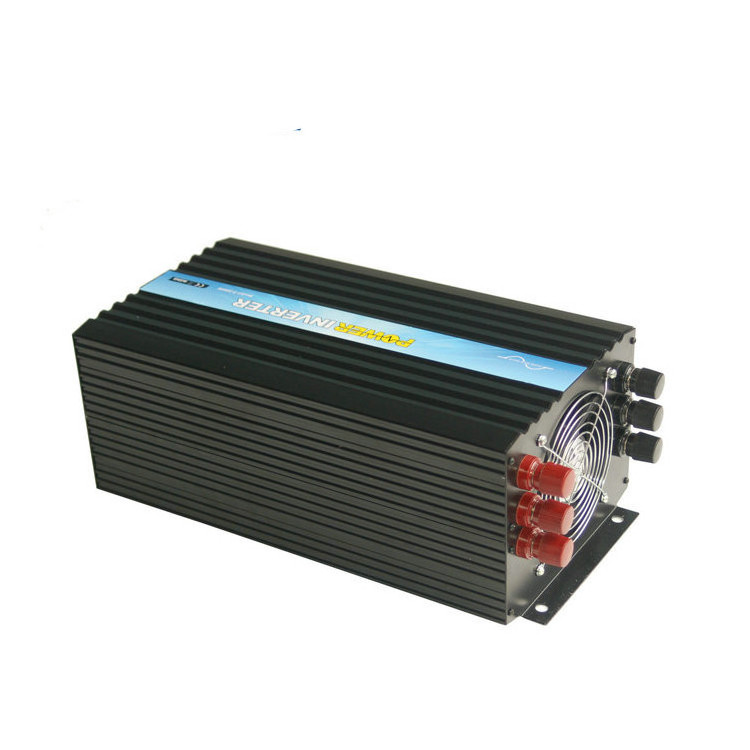

MLP-3000W pure sine wave ac single phase inverter

This motor frequency inverters China instantly converts low voltage DC power to high voltage AC power with the advanced double CPU SCM intelligent controlling technology.

With innovative design and super efficiency, motor frequency inverters China is low noise but high efficiency. Motor frequency inverters China is widely applied for power tools, home appliances, office equipments, portable equipments and etc. You can use motor frequency inverters China in many places, such as cars, trucks, trailers, boats, laptops, camcorders, cell phones and so on.

Customize input voltage such as 36V, 72V, 96V, 110V etc; output voltage such as 120v, 130v, 200V etc; Many kinds of sockets are available.

Features of ac single phase inverter China:

1. Output waveform: pure sine wave

2. 12v/24v/48v DC input

3. 100v-120v/220v-240v AC output

4. Output frequency: 60Hz/50Hz

5. Rated power: 3000w

6. Peak power: 6000w

7. Work efficiency: 88%-95%

8. THD<3% (less than standard 5%)

9. LED indication

10. Full power and soft start

11. High transform efficiency, fast start

12. Strong adaptability and stability

13. Safe and reliable with built-in fuse

14. Temperature controlled fan, safe & efficient

15. Low voltage protection

16. Over voltage protection

17. Over load protection

18. Short circuit protection

19. Input reverse connection protection

20. Over temperature protection

21. CE &ROHS &SGS &GMC &IP30 approved

22. Factory direct selling

23. 2 years warranty

Appliance :    ac single phase inverter

1. Office equipment series: Computers, Printers, Copiers, Scanners, digital camera and etc;

2. Household appliances series: Vacuum cleaners, Fans, Lighting, Electric cutting knife, Television, Sewing machines, Electric fans and etc;

3. Kitchen utensils series: Microwave ovens, Refrigerators, Freezers, Coffee machines, Blenders, Oven, induction cooker and etc;

4. Electronics Series: TV, VCR, Game consoles, Radios, Power amplifiers, Audio equipment, Monitoring equipment, Terminal equipment, Intelligence platforms, Satellite communications equipment and etc;.

5. In-car or on-boat devices series: Military vehicle, police cars, medical ambulance, ships, traffic lights and etc;

6. Industry equipments series: Solar energy, wind power, gas discharge lamp and etc;

7. Power tool series: Electric saw, drilling machine, punching machines, air compressor and etc.

Basic technical data :   ac single phase inverter

Model	P3000-12-110	P3000-24-110	P3000-48-110	P3000-12-220	P3000-24-220	P3000-48-220
Rated Power	3000W	3000W	3000W	3000W	3000W	3000W
Peak Power	6000W(within 5 millisecond)
DC Input Voltage	12V	24V	48V	12V	24V	48V
AC Output Voltage	110VAC±10%			220VAC±5%
No-load Current	<2.2A(DC13V)	<1.5A(DC26V)	<1.1A(DC52V)	<2.2A(DC13V)	<1.5A(DC26V)	<1.1A(DC52V)
AC Output Frequency	50HZ±1%/60HZ±1%
AC Output Waveform	Pure sine wave
Waveform Distortion	THD<3%
Full Load Efficiency	>86%(DC13V)	>88%(DC26V)	>90%(DC52V)	>86%(DC13V)	>88%(DC26V)	>90%(DC52V)
DC Input Voltage Range	10.6V-15.5V	21.6V-30V	43.2V-63V	10.6V-15.5V	21.6V-30V	43.2V-63V
Low Voltage Alarm	10.5±0.3V	21±0.6V	41.8±1.2V	10.5±0.3V	21±0.6V	41.8±1.2V
Low Voltage Protection	9.5±0.2V	19±0.3V	38±0.4V	9.5±0.2V	19±0.3V	38±0.4V
Over Voltage Protection	16±0.5V	31±1V	65±2V	16±0.5V	31±1V	65±2V
Low Voltage Recovery	11.8±0.3V	23.6±0.4V	47.2±0.8V	11.8±0.3V	23.6±0.4V	47.2±0.8V
Over Voltage Recovery	15.7±0.3V	31.8±0.4V	63±1V	15.7±0.3V	31.8±0.4V	63±1V
Over-load Protection	120%-125%
Protective Function	Low voltage: LED red light turn on,buzzer warning, automatic recovery
	Over voltage: LED red light turn on ,automatic recovery
	Over-load: LED red light on,machine locked, need to be rebooted
	Over temperature: LED red light turn on,buzzer warning, automatic recovery
	Short circuit(within 2 seconds): automatic recovery
	Input reverse connection: Fuse burn-out
Work Temperature	–10°C - +50°C
Storage Temperature	–30°C - +70°C
Humidity	20%-90%RH without condensation
Work Altitude	≤1200m
Size	416*199*146mm/pc
Net Weight	8.83±0.01kg/pc	8.78±0.05kg/pc	8.73±0.01kg/pc	8.83±0.01kg/pc	8.78±0.05kg/pc	8.73±0.01kg/pc
Package Size	545*285*250mm/pc
Gross Weight	10.92±0.1kg/pc	10.54±0.1kg/pc	10.35±0.1kg/pc	10.92±0.1kg/pc	10.54±0.1kg/pc	10.35±0.1kg/pc
