Quick Details
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
cnc roll grinder:
-
MK84160x6000/35
-
Warrany:
-
1 year
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Timac
-
Weight (KG):
-
15000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
cnc roll grinder:
-
MK84160x6000/35
-
Warrany:
-
1 year

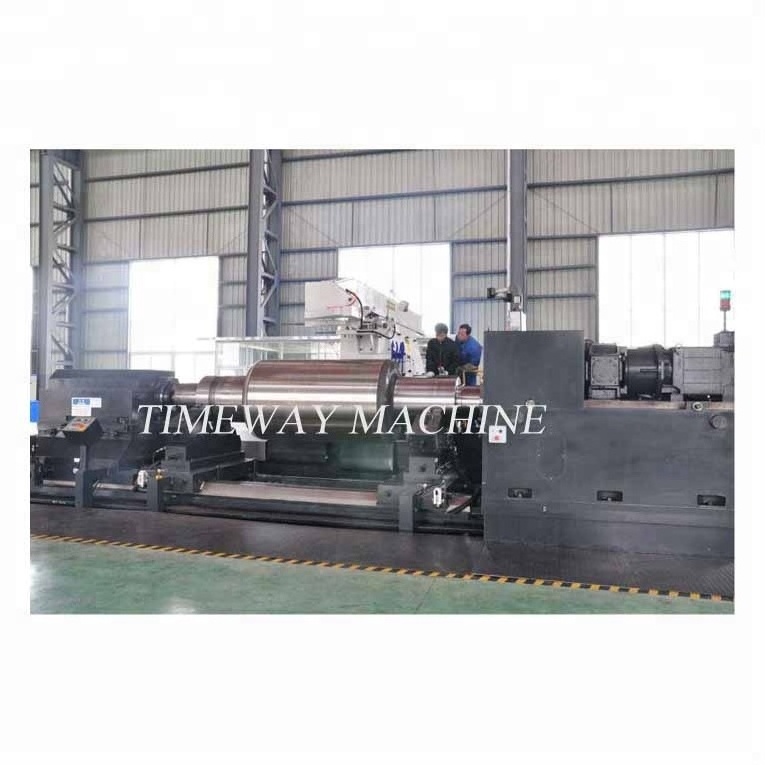

CNC Roll Grinding Machine
CNC Roll Grinder
Model: MK84160x6000/35
1. Roll parameters:
As per parameters in the documents provided by customers.
2 Main precision indexes:
2.1 C ylindrical grinding
|
Concentricity |
±0.002 mm |
|
Parallelism |
±0.002mm |
|
Roughness |
Ra 0. 3 2μm |
2.2 C onvex-concave grinding
|
Convex-concave symmetry |
1000.002 |
|
Profile deviation |
±0.003mm/m |
|
Coaxiality |
0.002 mm |
|
Roughness |
Ra 0.2μm |
2.3 Free curve grinding
|
Profile deviation |
±0.003mm/m |
|
Coaxiality |
0.002mm |
|
Roughness |
Ra 0. 3 2μm |
3. Main technical data:
|
S/N. |
Specification |
Unit |
MK84160x6000/35 |
|
1 |
Maximum grinding diameter |
mm |
16 00 |
|
2 |
Minimum grinding diameter |
mm |
20 0 |
|
3 |
Maximum grinding length (distance between centers) |
mm |
6 000 |
|
4 |
Maximum Roll Weight |
T |
35 |
|
5 |
Maximum input power(approximately) |
KW |
230 |
|
6 |
Total weight |
T |
Approximately 100 |
|
7 |
Area that it covers |
17m× 6.5 m |
|
|
8 |
Output power of grinding wheel motor (AC spindle motor) |
KW |
100 |
|
9 |
Output power of headstock motor (AC spindle motor) |
KW |
55 |
|
10 |
Carriage (Z-axis) |
||
|
11 |
Range of movement speed |
mm/min |
1- 6 000 |
