Quick Details
-
Brand Name:
-
YG
-
Voltage:
-
220V/380V
-
Power:
-
4KW
-
Dimension(L*W*H):
-
1500*600*1000mm
-
Weight:
-
450
-
Product name:
-
Rebar Thread Rolling Machine Electric Rebar Thread Rolling Machine
-
Keyword:
-
Thread rolling machine
-
Function:
-
Rebar Thread Rolling Screw
-
Thread Pitch:
-
3.0m
-
Thread Length:
-
180mm
-
Tensile strength:
-
Equal
-
Usage:
-
Round Bar
-
After-sales Service Provided:
-
Video technical support, Online support
-
Color:
-
Customers' Requirement
-
Name:
-
Factory rebar threading making screw steel bar thread rolling machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Application:
-
Rebars
-
Production Capacity:
-
30-40mm/min
-
Brand Name:
-
YG
-
Voltage:
-
220V/380V
-
Power:
-
4KW
-
Dimension(L*W*H):
-
1500*600*1000mm
-
Weight:
-
450
-
Product name:
-
Rebar Thread Rolling Machine Electric Rebar Thread Rolling Machine
-
Keyword:
-
Thread rolling machine
-
Function:
-
Rebar Thread Rolling Screw
-
Thread Pitch:
-
3.0m
-
Thread Length:
-
180mm
-
Tensile strength:
-
Equal
-
Usage:
-
Round Bar
-
After-sales Service Provided:
-
Video technical support, Online support
-
Color:
-
Customers' Requirement
-
Name:
-
Factory rebar threading making screw steel bar thread rolling machine
Factory rebar threading making screw steel bar thread rolling machine price

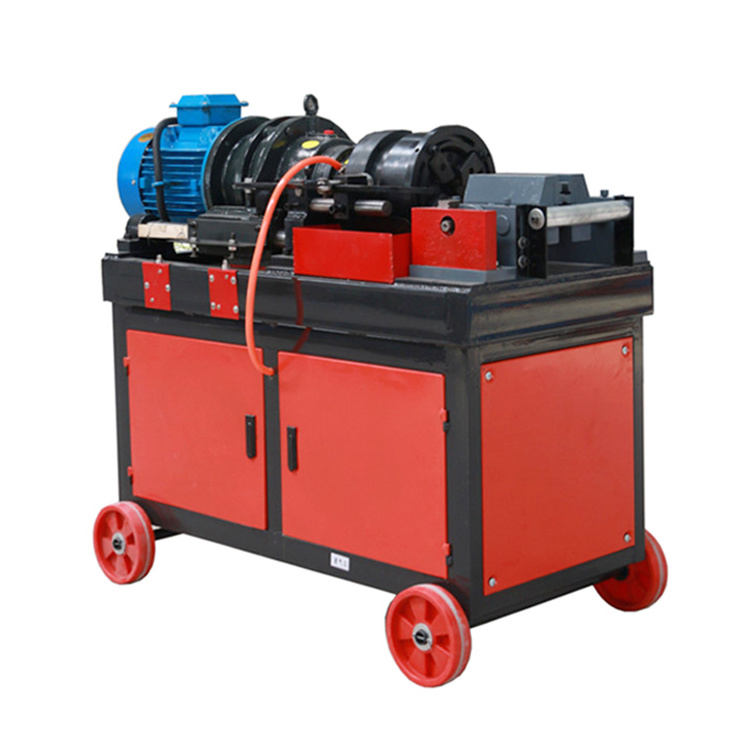

Steel bar thread rolling machine is mainly used for rolling straight threaded head of ribbed steel bar in construction engineering. It is the key equipment for realizing straight threaded connection of reinforced steel bar.
Yugong Rebar Thread Rolling Machine is mainly applied to made screw thread
16-40mm
diameter screw steel rebar, thread length
1-250mm
, then roll parallel thread on rebar end, after that, two threaded rebar sectors could be connected by coupler. It is a your ideal machine for rebar joint connection work. In addition, Rebar Threading Machine is also applied to roll threads on round steel bar, anchor rod, or other equivalent materials.
|
Model |
YGS-40 |
YGT-40 |
YGA-40 |
|
Processing diameter range |
16-40mm
|
||
|
Thread rolling length |
0-80mm
|
0-100mm | |
|
Power voltage |
4kw/380v 50hz |
4kw/380v 50hz |
7.5kw/380v 50hz |
|
Working efficiency |
15s/forming |
8s/forming |
One-touch auto forming |
|
Machine weight |
320kg |
350kg |
400kg |
|
Machine size |
115*50*106cm |
110*60*130cm |
126*70*106cm |
|
Type |
Standard type |
Upgrade type |
Full automatic type |
Features
1.It can complete rib peeling and rebar thread machine one time.
2.Good shape of thread and high precision.
3.Right thread and left thread are all available.
4.Left-handed and Right-handed thread can be processed.
5.Simple operation, good quality,realiable working,and high efficiency.
6.Rebar dia. for 12-50mm can be adjusted .
7.600-900 heads per day.
Standard type VS Full automatic type
1.Standard type and upgrading type working method
2.Full automatic with pneumatic device, save labour cost and time, but need to use with Air compressor 0.25m³exhaust.
Thread Rolling Machine Working Effect
We also provide connect couplers in different sizes.
| Rebar Coupler | ||||
| Rebar diameter | OD*Length | Pitch | Quantity/bag | Weight/bag |
| 16mm | Φ24*40mm | 2.5mm | 300pcs | 22.84kg |
| 18mm | Φ27*45mm | 2.5mm | 200pcs | 22.04kg |
| 20mm | Φ31*50mm | 2.5mm | 150pcs | 26..38kg |
| 22mm | Φ33*55mm | 2.5mm | 130pcs | 26.98kg |
| 25mm | Φ37*60mm | 2.5mm | 100pcs | 27.45kg |
| 28mm | Φ41*65mm | 3mm | 80pcs | 29.25kg |
| 32mm | Φ47*70mm | 3mm | 60pcs | 30.93kg |
Which size of coupler is suitable to do your work, please?
High hardness and endurable rebar thread rolling machine and related spare parts, cutter blade, cutter holder, shaft, bushes, roller, etc.
Rebar Thread Rolling Machines are at clients's working site.
