Quick Details
-
Drilling Speed:
-
Variable speed
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Allwin
-
Model Number:
-
DP30016VL
-
Voltage:
-
230V-240V
-
Dimension(L*W*H):
-
750*505*295
-
Power (kW):
-
0.55
-
Weight (KG):
-
38.5 KG
-
Max chuck capacity:
-
20mm
-
Spindel travel:
-
80mm
-
Taper:
-
JT33 /B16
-
NO. of speed:
-
Variable speed
-
Speed range:
-
50Hz/450-2580RPM 60Hz/530-3100RPM
-
Swing:
-
300mm
-
Table size:
-
240*240mm
-
Columm dia:
-
65mm
-
Base size:
-
410*250mm
-
Machine height:
-
950mm
Quick Details
-
type:
-

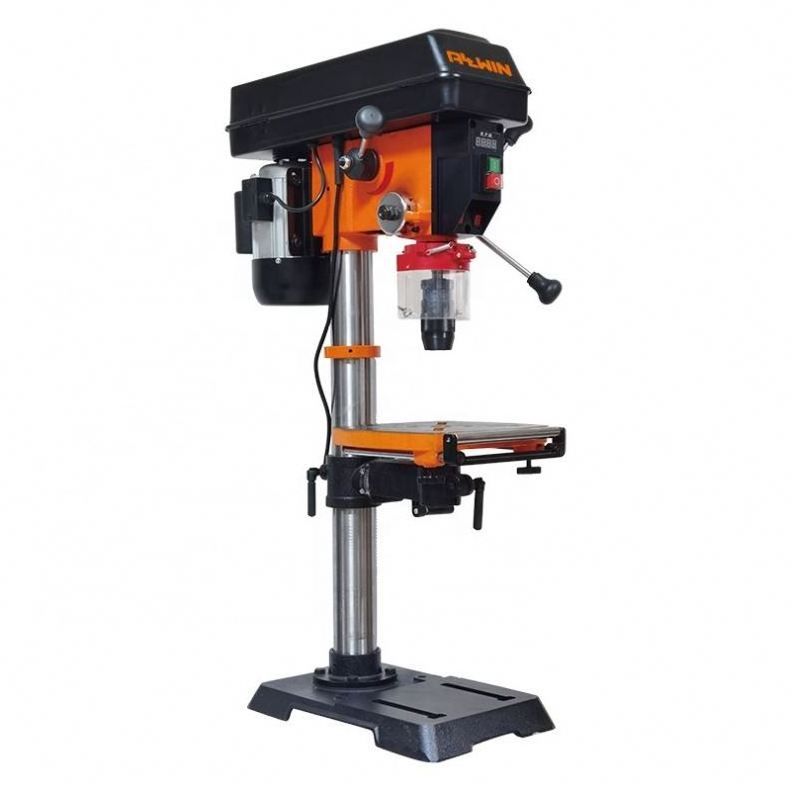

Pillar Drilling Machine
-
Max. Drilling Dia. (mm):
-
20
-
Range of Spindle Speed(r.p.m):
-
450 - 2580 r.p.m
-
Drilling Speed:
-
Variable speed
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Allwin
-
Model Number:
-
DP30016VL
-
Voltage:
-
230V-240V
-
Dimension(L*W*H):
-
750*505*295
-
Power (kW):
-
0.55
-
Weight (KG):
-
38.5 KG
-
Max chuck capacity:
-
20mm
-
Spindel travel:
-
80mm
-
Taper:
-
JT33 /B16
-
NO. of speed:
-
Variable speed
-
Speed range:
-
50Hz/450-2580RPM 60Hz/530-3100RPM
-
Swing:
-
300mm
-
Table size:
-
240*240mm
-
Columm dia:
-
65mm
-
Base size:
-
410*250mm
-
Machine height:
-
950mm
|
Technical Details |
|||
|
Dimensions |
|||
|
Carton Size(mm) |
750*505*295 |
Table Size(mm) |
240*240 |
|
Table Title(mm) |
-45~0~45 |
Column Dia.(mm) |
65 |
|
Base Size(mm) |
410*250 |
Machine Height(mm) |
950 |
|
Container Load |
|||
|
20GP |
230 |
40GP |
460 |
|
40HP |
550 |
|
|
|
Details |
|||
|
Voltage |
230V-240V |
Max Spindle Speed |
2580RPM |
|
Max Working Height |
80mm |
Chuck Capacity |
20mm |
|
Power |
550W |
Taper |
JT33 /B16 |
|
Speed |
Variable speed |
Swing |
300mm |
