- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1 year/12 months/365 days
-
Place of Origin:
-
Gansu
-
Brand Name:
-
Times Power
-
Model Number:
-
4BTA3.9-G11
-
Speed:
-
1500/1800rpm
-
Weight:
-
1320KG
-
Product Name::
-

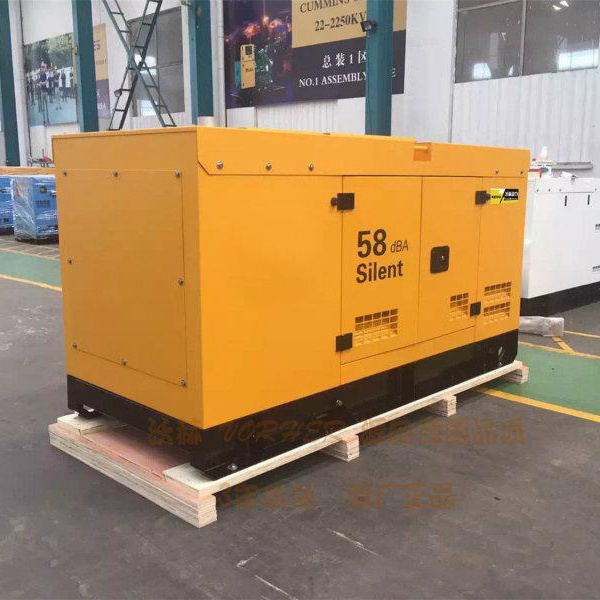

80KW Silent Type Diesel Generator Set With Cummins 4BTA3.9-G11 Engine
-
Generator Type::
-
Silent Type
-
Alternator Brand::
-
Stamford/Marathon/Leroy somer/Faraday / Tontek
-
Control Panel::
-
Deepsea/Smartgen/Harsen
-
Cooled Type::
-
Radiator/Water and fan
-
Fuel Tank::
-
8 Hours Base Fuel Tank
-
Options::
-
Automatic Transfer Switch
-
Governor::
-
Electronic
-
Color::
-
Customers' Request
-
Spare Parts::
-
All available
-
Certification:
-
CE ISO
Quick Details
-
Rated Voltage:
-
400/230V (Can be adjusted)
-
Rated Current:
-
84A~459A
-
Frequency:
-
50HZ/60HZ
-
Warranty:
-
1 year/12 months/365 days
-
Place of Origin:
-
Gansu
-
Brand Name:
-
Times Power
-
Model Number:
-
4BTA3.9-G11
-
Speed:
-
1500/1800rpm
-
Weight:
-
1320KG
-
Product Name::
-
80KW Silent Type Diesel Generator Set With Cummins 4BTA3.9-G11 Engine
-
Generator Type::
-
Silent Type
-
Alternator Brand::
-
Stamford/Marathon/Leroy somer/Faraday / Tontek
-
Control Panel::
-
Deepsea/Smartgen/Harsen
-
Cooled Type::
-
Radiator/Water and fan
-
Fuel Tank::
-
8 Hours Base Fuel Tank
-
Options::
-
Automatic Transfer Switch
-
Governor::
-
Electronic
-
Color::
-
Customers' Request
-
Spare Parts::
-
All available
-
Certification:
-
CE ISO
Product Category
Times Power
80kw diesel generator set powered by Cummins engine 4BTA3.9-G11
Search By Type >>
Diesel Generator Set Searching Table
|
|
|
|
|||
Search By Power >>
|
|
|
|
|||
5-10KVA
|
11-15KVA
|
16-20KVA
|
21-30KVA
|
|||
31-40KVA
|
41-60kVA
|
61-80kVA
|
81-100kVA
|
|||
101-120kVA
|
121-150kVA
|
151-200kVA
|
201-300kVA
|
|||
301-400kVA
|
401-500kVA
|
501-600kVA
|
601-800kVA
|
|||
801-1000kVA
|
1001-2000kVA
|
2000kVA Above
|
|
|||
Search By Engine >>
|
|
|
|
|||
Cummins
|
Perkins
|
Yuchai
|
MTU
|
|||
Mitsubishi
|
Kubota
|
Lovol
|
Volvo Penta
|
|||
Ricardo
|
Doosan
|
Yangdong
|
|
Rated power
|
Engine
|
Alternator
|
Control panel
|
20 kw~1300kw
|
Cummins
|
Stamford
Leroy somer Marathon Mecc alte ABB Chinese alternators |
Deepsea
ComAp Harsen Smartgen |
8kw~1600kw
|
Perkins
|
|
|
68kw~504kw
|
Volvo
|
|
|
20 kw~500kw
|
Deutz
|
|
|
220 kw-2400kw
|
MTU
|
|
|
280kw-800kw
|
MAN
|
|
|
600kw-1800kw
|
Mitsubishi
|
|
|
50kw-650kw
|
Doosan
|
|
|
2kw~2500kw
|
Chinese engine
|
|
|
Product Description
This series generator sets choose Cummins engine assembled with Stamford, Fraday or other famous brand alternators, and adopt intelligent liquid crystal display control system.
Its have the advantages of small size, light weight, low fuel consumption, high power reserve, reliable operation, superior spare parts supply and convenient maintenance.
The Power range 20KW-1200KW as 24-hour uninterrupted power or standby power.
Product Parameters
80kw diesel generator powered by Cummins engine 4BTA3.9-G11
Engine Model
|
4BTA3.9-G11
|
Engine manufacturer
|
CUMMINS
|
Number of cylinders
|
4 cylinders in line
|
Cycle
|
4 stroke
|
Aspiration
|
Turbocharger and aftercooler
|
Bore×Stroke
|
102mm x120mm
|
Displacement
|
3.9L
|
Compression ratio
|
17.3:1
|
Prime power/speed
|
70KW/1500RPM
|
Standby Power/Speed
|
80KW/1500RPM
|
Speed governer
|
Electrical
|
Cooling system
|
Forced water cooling cycle
|
Steady speed droop
|
≤1%
|
Total Lubricating oil capacity
|
11L
|
Coolant capacity (engine only)
|
8.3L
|
Fuel consumption at 100% load
|
208g/kw.h
|
Starter motor
|
DC24V
|
Alternator
|
DC24V
|
80KW diesel generator set powered by Cummins engine 4BTA3.9-G11
Alternator brand
|
Stamford,Marathon,Leroy Somer,Mecc-alte, TWGII…
|
Prime power
|
70KW
|
Frequency/speed
|
50HZ/1500rpm
|
Exciter type
|
Single bearing, Brushless, Self-excited
|
Power factor
|
0.8
|
Voltage adjust range
|
≥5%
|
Voltage regulation NL-FL
|
≤±1%
|
Insulation Grade
|
H
|
Protection Grade
|
IP23
|
Brand: Deepsea/ComAp/Smartgen
|
The control module gives digital readouts of:
Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run. The control module has indicators for failure information: Overspeed/underspeed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure Automatic shutdown occurs under: Low engine oil pressure; High engine water temperature; Overspeed/underspeed; Failure to start after three attempts. |
|
|
|
|
Product Overviews
Open Type
diesel generator set powered by Cummins engine
Silent Type
diesel generator set powered by Cummins engine
Trailer Type
diesel generator set powered by Cummins engine
Package & Shipping
Package of
open type Cummins diesel generator set 100KVA
Plywood case/Wooden pallet/PE film
FCL: wrap with stretch film
LCL: packed in plywood case
