Quick Details
-
Model Number:
-
RM03-BW05V
-
Display:
-
10" HD display
-
Display resolution:
-
resolution :800*600
-
Array element:
-
80 element
-
System:
-
singlechip (SCM)
-
Storage space:
-
128 permament storage
-
The probe interface:
-
One probe socket
-
Language:
-
Support 2 languages (English & Chinese)
-
External interface:
-
PAL video output, SVGA video output;USB
-
Connectable printer:
-
Sony & mitsubishi printer or other thermal printer
-
Ultrasonic mode:
-
Support B, B/B,4B,B/M & M display mode
Quick Details
-
Properties:
-
Diagnosis & Injection
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Rayman
-
Model Number:
-
RM03-BW05V
-
Display:
-
10" HD display
-
Display resolution:
-
resolution :800*600
-
Array element:
-
80 element
-
System:
-
singlechip (SCM)
-
Storage space:
-
128 permament storage
-
The probe interface:
-
One probe socket
-
Language:
-
Support 2 languages (English & Chinese)
-
External interface:
-
PAL video output, SVGA video output;USB
-
Connectable printer:
-
Sony & mitsubishi printer or other thermal printer
-
Ultrasonic mode:
-
Support B, B/B,4B,B/M & M display mode
Overview
Product Description

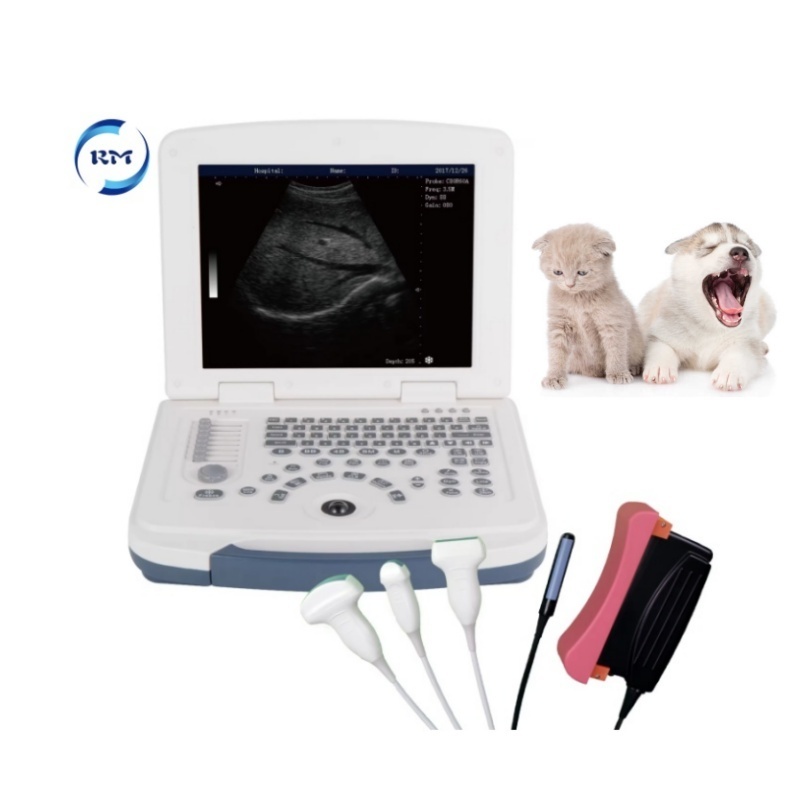

Rayman LED Laptop Ultrasound Scanner Hospital Black and White Portable Ultrasound Scanner for animals
Specification:
★Display mode: B;B/B;4B;B +M;M
★Display size: 10.4inch LED displayer
B/PW synchronization
★E-zoom: Magnify 2 times of real time image
★Dynamic range: 0~120db adjustable
★Focus position: Dynamic electron focusing
★Image proessing: 8γcorrections, Point correlation, Frame correlation, Line correlation, Digital
filting,Digital edge enhancement and pseudo color processing;
According to the user's pattern style preference, the parameter will be set up, automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
★Display size: 10.4inch LED displayer
B/PW synchronization
★E-zoom: Magnify 2 times of real time image
★Dynamic range: 0~120db adjustable
★Focus position: Dynamic electron focusing
★Image proessing: 8γcorrections, Point correlation, Frame correlation, Line correlation, Digital
filting,Digital edge enhancement and pseudo color processing;
According to the user's pattern style preference, the parameter will be set up, automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
★
Gray scale: 256 levels
★ Frequency conversion
2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0Mhz
★ 5 periods of frequency conversion
★ Frequency range applies
5.5MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz can match high frequency probe;
★ Frequency conversion
2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0Mhz
★ 5 periods of frequency conversion
★ Frequency range applies
5.5MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz can match high frequency probe;
★
Measuring function: Distance, circumference/area(method of ellipse,method of loci) ,volume,heart rate, gestational weeks, expected date of confinement and fetus weight,etc.
★ Annotation function: Hospital name;patient’s name, age and gender; Body marks(with
probe’s position);Full-screen character annotation;Real-time clock displayPuncture guide
3.5MHz convex array probe can display punture guide in B mode
★ Gain control: 8segments TGC and overall gain can be adjusted respectively, Image polarity , Left and right flip; up and down flip
★ Capacity cine loop, Real time display 256 consecutive images which are moemorized successively;Image playback, Series playback or check one by one;
★ Permanent storage:128 images
★ Output interface: USB port
★ Standard configuration
Ultrasound machine with 3.5Mhz convex array probe and power adapter .
★ Annotation function: Hospital name;patient’s name, age and gender; Body marks(with
probe’s position);Full-screen character annotation;Real-time clock displayPuncture guide
3.5MHz convex array probe can display punture guide in B mode
★ Gain control: 8segments TGC and overall gain can be adjusted respectively, Image polarity , Left and right flip; up and down flip
★ Capacity cine loop, Real time display 256 consecutive images which are moemorized successively;Image playback, Series playback or check one by one;
★ Permanent storage:128 images
★ Output interface: USB port
★ Standard configuration
Ultrasound machine with 3.5Mhz convex array probe and power adapter .
Standard Configuration:
1.One host machine;
2.One convex array probe:F=3.5MHZ;
3.One power adapter;
4.11.1 V 2500MAH Li battery;
5.USB port.
1.One host machine;
2.One convex array probe:F=3.5MHZ;
3.One power adapter;
4.11.1 V 2500MAH Li battery;
5.USB port.
|
Other parameters:
|
|
|
|
Designation
|
Performance
|
|
|
Displayer
|
10.4 inch LCD color display
|
|
|
Perimeter and area measured deviation (%)
|
≤±20%
|
|
|
The battery pack works continuously
|
≥1 hour
|
|
|
Input power
|
AC220V±22V，1.5A
|
|
|
Gross weight
|
about 4.6 kg
|
|
|
Host weight
|
about 3.6 kg
|
|
|
Host appearance size
|
300×245×60 (length × width × height)（mm3）
|
|
|
The outer packing size
|
365×255×70 (length × width × height)（mm3）
|
|
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Brand Name
|
Rayman
|
|
Model Number
|
RM03-BW05V
|
|
Power Source
|
Electric
|
|
Warranty
|
1 Year
|
|
After-sale Service
|
Online technical support
|
|
Material
|
Plastic
|
|
Shelf Life
|
3 years
|
|
Quality Certification
|
CE ISO
|
|
Instrument classification
|
Class I
|
|
Safety standard
|
None
|
|
Product name
|
Ultrasound Machine
|
|
Display
|
10" HD display
|
|
Display resolution
|
resolution :800*600
|
|
Array element
|
80 element
|
|
System
|
singlechip (SCM)
|
|
Storage space
|
128 permament storage
|
|
The probe interface
|
One probe socket
|
|
Language
|
Support 2 languages （English & Chinese)
|
|
External interface
|
PAL video output, SVGA video output;USB
|
|
Connectable printer
|
Sony & mitsubishi printer or other thermal printer
|
|
Ultrasonic mode
|
Support B、 B/B、4B、B/M & M display mode
|
|
Optional probe
|
3.5 MHz convex 6.5 MHz transvaginal 7.5MHz linear
|
|
Report page
|
Photo print
|
|
Battery capacity
|
Built in lithium battery standby for 2 hours
|
|
package size
|
430mm×250mm×360mm
|
|
packed weight
|
4.6KG
|
