Small mini type aluminium blikjes scrap aluminum tin can shredder for sale

Small mini type aluminium blikjes scrap aluminum tin can shredder for sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $3500

≥2 Sets

US $3400

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 4500

Feeding chamber size:: 400*250mm

Blades material:: Cr12MoV/ SKD-11/H13/D2

Blade Cutters:: 8-20pcs

Knife plate thickness:: 10-25mm

Shaft Design:: Double

Motor:: 2 electric motors

Speed of Mainshaft:: 12-25r/m

Crushing granularity:: 3-10cm

Raw material:: Scrap metal, plastic,Waste Plastic

Color:: Can be customized

Quick Details

Place of Origin:: Henan, China

Brand Name:: Vansen

Power (kW):: 5.5

Weight (KG):: 4500

Feeding chamber size:: 400*250mm

Blades material:: Cr12MoV/ SKD-11/H13/D2

Blade Cutters:: 8-20pcs

Knife plate thickness:: 10-25mm

Shaft Design:: Double

Motor:: 2 electric motors

Speed of Mainshaft:: 12-25r/m

Crushing granularity:: 3-10cm

Raw material:: Scrap metal, plastic,Waste Plastic

Color:: Can be customized

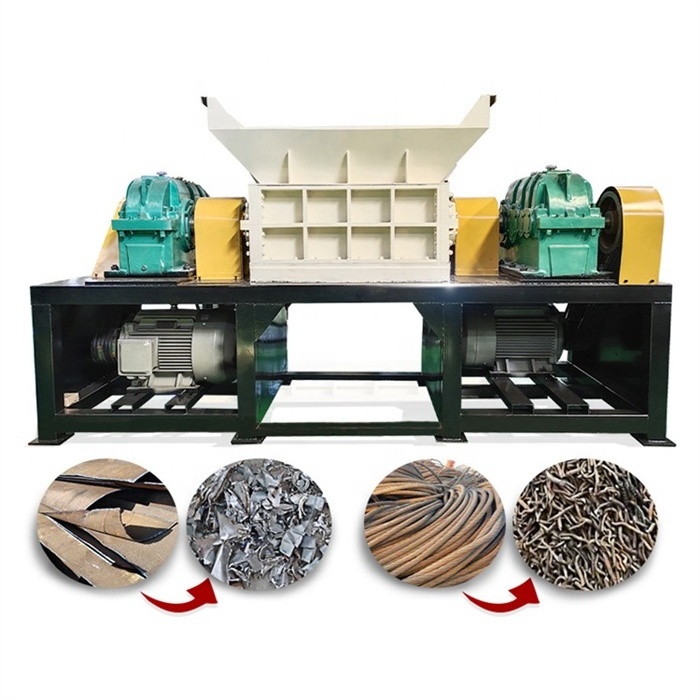

Small mini type aluminium blikjes scrap aluminum tin can shredder for sale

Product introduction. mini shredder type aluminium blikjes shredder

Metal shredding machine is mainly composed of shredding blade group, bearing box, box support, feeding system, power system, electrical control system. It is mainly used for tearing thin metal with certain strength to increase its packing density for easy transportation and recycling. Tear objects such as metal buckets, refrigerators, cars, scrap steel, steel furniture and so on

Working principle aluminum can shredder aluminum shredder Material through the feeding system into the inside of the box, box bearing shredding blade, material after shredding blade tearing, extrusion, shearing and other comprehensive effects, shredding into small pieces of material, discharged from the lower box.

Model	600	800	1000	1200
Bin size(mm)	*600550**	*800480**	*12001000**	*14001000**
Cutter diameter(mm)	260	320	350	400
Spindle speed(r/m）	18-20	18-20	18-20	18-20
Motor Power (Kw)	*18.52**	*302**	*372**	*452**
blade number	6-20	8-25	12-40	11-30
Knife plate thickness	15-50	15-50	15-50	20-60
Capacity (kg)	800-1500	3000-5000	5000-8000	6000-10000
Output size (cm)	3-10	3-10	3-10	3-10
Overall dimensions (mm)	*260020001900*	*280020001900*	*300020001900*	*320022001900*
Weight (kg)	2500	3000	5000	6000

Product features mini aluminum can shredder scrap aluminum shredder

1,Heavy moving knife, high crushing efficiency, cutting tools are made of alloy steel casting, strong long service life.

2,The frame plate thickness, can resist high torque, very strong.

3,Using microcomputer (PLC) automatic control, set start, stop, reverse and overload automatic reverse control function.

4,The equipment has low speed, large torque, low noise, dust can meet the characteristics of environmental protection standards.

5,Easy to adjust, low maintenance cost, economic and durable.

6,The thickness of the tool and the number of claws can be replaced according to different materials

VanSen shredding machine transmission parts adopt coupling link, reduce vibration, protect the spindle and reducer, no loss of force. VanSen shredding machine reducer adopts hard tooth surface ZSY series, the reducer adopts steel plate welding, the gear is made of low carbon alloy steel with high strength by carbon quenching, high hardness of tooth surface, small size, light weight and high bearing capacity.

scrap aluminum cans shredder

Shredder box

VanSen shredding machine box adopts the overall processing, small error, high precision, reduce vibration and strain, box installed on both sides of the arc separator material, ensure smooth discharge, improve output .

mini shredder type aluminum cans shredder

Blade

VanSen shredding machine blade is made of excellent alloy tool steel material, after forging, annealing, heat treatment, tempering heat preservation (repeated 5-6 times), and then fine grinding line cutting. Greatly ensure the hardness and toughness of the blade

Bearing aluminum tin can shredder

The bearing seat adopts the split and disassembly mode, which can remove the moving knife, fixed knife, bearing and other parts, and is easy to maintain and replace the tool. The sealing structure blocks the contact of broken materials and grease, and liquid materials can also protect bearings and gears. Bearings adopt imported self-aligning roller bearings (NSK, SKF/FAG)

small aluminum can shredder

aluminum cans shredder for sale

PLC Controlled cupboard

PLC programming, equipped with start, stop, forward, reverse and overload automatic protection and other functions. Overall automation, ensure safety and stability, save labor costs.
