Quick Details
-
Rolling thinckness:
-
0.3-1mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BN
-
Voltage:
-
380V 50Hz 3phases
-
Dimension(L*W*H):
-
5m*1.3m*1.3m-15m*1.3m*1.4m
-
Weight:
-
5000 kg
-
Color:
-
as your requirement
-
Material thickness:
-
0.3-0.8mm
-
Forming stations:
-
About 18 groups
-
Application:
-
Building Construction
-
Control system:
-
PLC
-
Certification:
-
CE/ISO9001
-
Forming speed:
-
10-20 m/min
-
Drive:
-
By chain
-
Shear material:
-
cr12
Quick Details
-
Type:
-

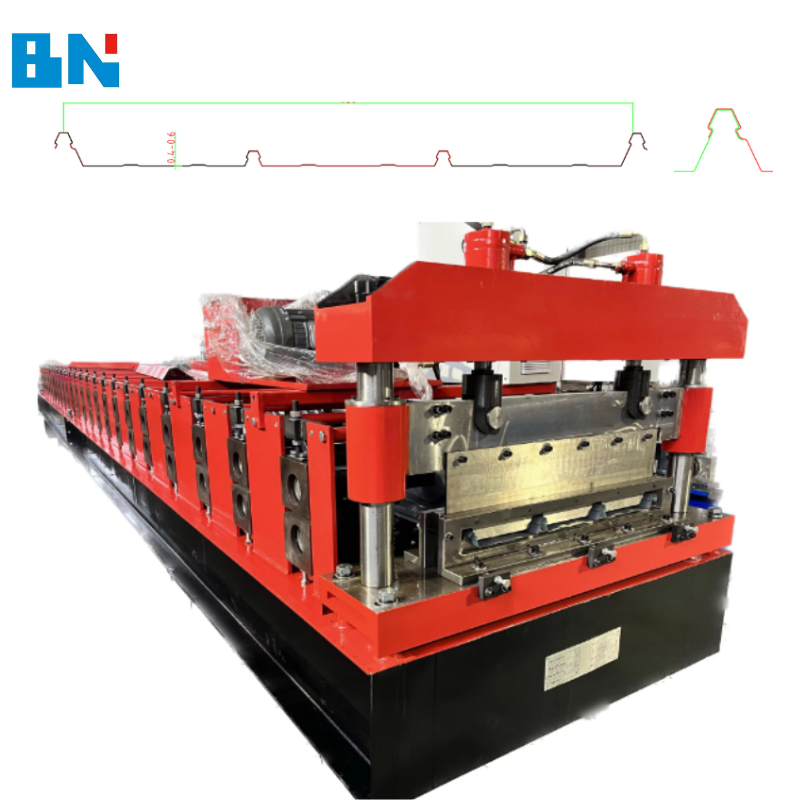

Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
10-15m/min
-
Rolling thinckness:
-
0.3-1mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BN
-
Voltage:
-
380V 50Hz 3phases
-
Dimension(L*W*H):
-
5m*1.3m*1.3m-15m*1.3m*1.4m
-
Weight:
-
5000 kg
-
Color:
-
as your requirement
-
Material thickness:
-
0.3-0.8mm
-
Forming stations:
-
About 18 groups
-
Application:
-
Building Construction
-
Control system:
-
PLC
-
Certification:
-
CE/ISO9001
-
Forming speed:
-
10-20 m/min
-
Drive:
-
By chain
-
Shear material:
-
cr12
Products Description
|
Description |
Explaination |
|
Working speed
|
10-20 m/min（Shear time is not included）
|
|
Pressed plate thickness
|
0．3-0．8mm
|
|
Control mode
|
Siemens PLC
|
|
Discharging rack
|
5T manual decoiler
|
|
Number of molding passes
|
22 lanes
|
|
Roll material
|
After finishing, the surface of 45# steel is chrome plated.
|
|
Shaft material and diameter
|
45# Steel finishing，Shaft diameter is￠70mm
|
|
Main engine power
|
7.5kw
|
|
Power of hydraulic station
|
3kw
|
|
Hydraulic pressure
|
12Mpa
|
|
Scissors material
|
Cr12Mov， quench HRC 58-62℃
|
|
Length tolerance
|
3m±1.5mm
|
|
Voltage
|
380V, 50HZ,3 phase（According to customer requirements can be adjusted）
|
|
Transmission mode
|
1.0 inch single row chain
|
|
Equipment form
|
Guide pillar structure
|
|
Equipment color
|
Company color
|
|
Equipment size
|
L*W*H— 10.5m*1.8m*1.0m
|
|
Date of delivery
|
80 days
|
|
Payment method
|
30% advance charge，70% pay off on delivery
|
Flow Chart
Equipment composition
|
5T manual discharging rack
|
1 set
|
|
Molding machine
|
1 set
|
|
Post-shear structure
|
1 set
|
|
Control cabinet
|
1 set
|
|
Hydraulic station
|
1 set
|
|
Discharge table
|
2 sets
|
