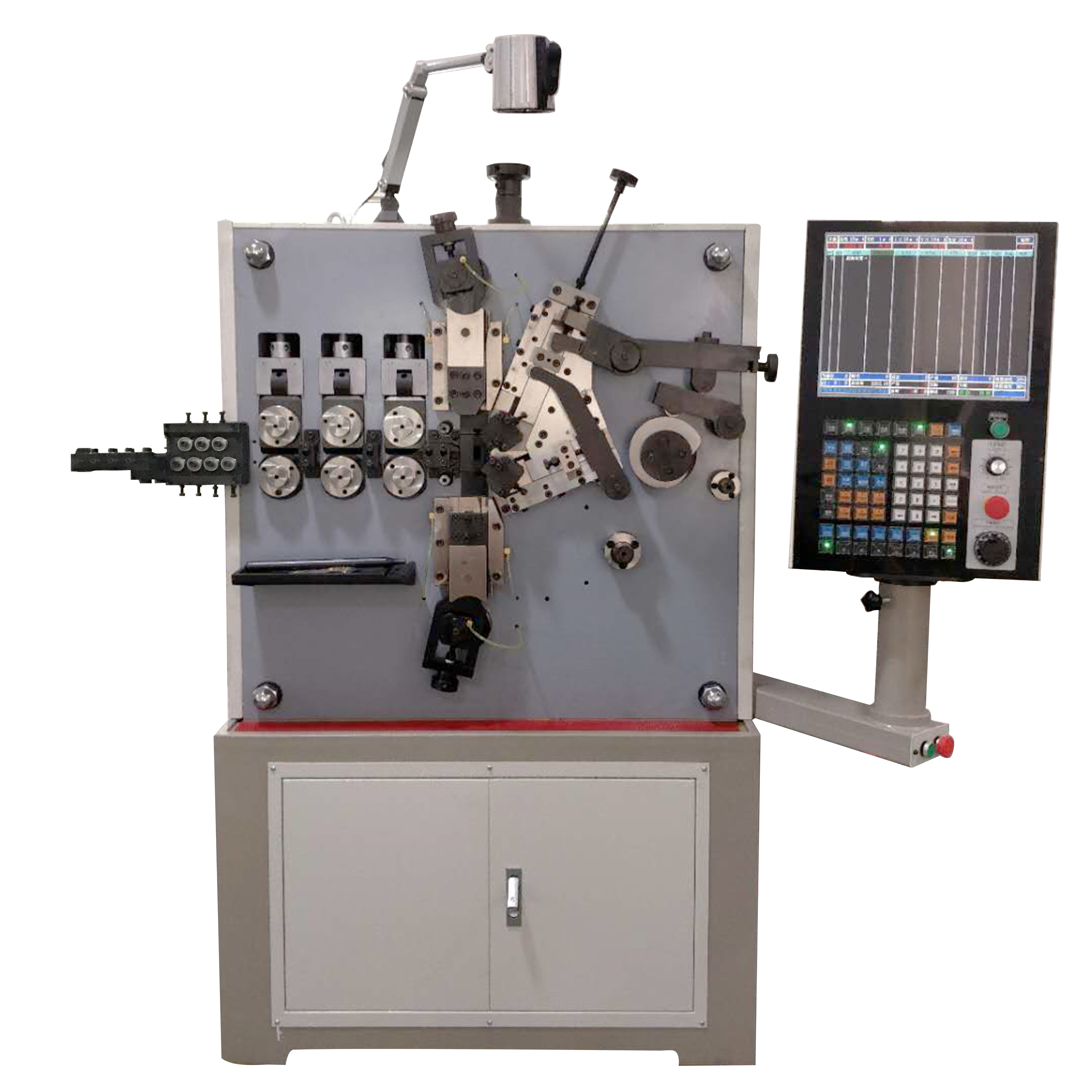

Automatic pressing pen spring making machine spring coiling machine 2-4mm 5axis spring machine
Automatic pressing pen spring making machine spring coiling machine 2-4mm 5axis spring machine
Automatic pressing pen spring making machine spring coiling machine 2-4mm 5axis spring machine
Automatic pressing pen spring making machine spring coiling machine 2-4mm 5axis spring machine
Automatic pressing pen spring making machine spring coiling machine 2-4mm 5axis spring machine
Automatic pressing pen spring making machine spring coiling machine 2-4mm 5axis spring machine
Automatic pressing pen spring making machine spring coiling machine 2-4mm 5axis spring machine
Automatic pressing pen spring making machine spring coiling machine 2-4mm 5axis spring machine

Automatic pressing pen spring making machine spring coiling machine 2-4mm 5axis spring machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $26000
≥2 Sets
US $25000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Application:
bicycle parts
Product name:
spring coiling machine
Function:
compression springs
Color:
grey and Red
Usage:
CNC
Weight:
2000KG
Certification:
ISO9001
Type:
Automation

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
Union Spring
Name:
5 Axes spring coiling machine
Application:
bicycle parts
Product name:
spring coiling machine
Function:
compression springs
Color:
grey and Red
Usage:
CNC
Weight:
2000KG
Certification:
ISO9001
Type:
Automation
Product Description
5 Axis Spring coiling Machin e
Model
US-540
Axis
5
Wire Diameter
1.0-4.0mm
Wire Wheel Sets
3sets
Wire Feeding Wxis
5.5KW
Upper Cutter Axis
1.5KW
Lower Cutter Axis
1.5KW
Cam Axis
1.5KW
Spacing Axis
1.5KW
Machine Size
1600*1000*1750mm 3
Machine Weight
1800KG

Machine description:

1. This machine adopts computer digital control. Any one of the five axis can move independently, but also can coordinate several axis linkage. In the production process, the machine has precise transmission, smooth movement, wear resistance and long life. 2. The wire feeding axis is driven by the imported servo motor, which can realize high-speed and high-precision wire feeding of any length. 3. The upper and lower cutting axis is controlled by two servomotors to cut off the slider's fast movement, realizing the cutting and torsional cutting. 4. The pitch axis is driven by servo motor, and the high precision rolling screw is used to make the pitch claw move, so as to ensure the height accuracy of the pitch. 5. The cam axis drives reducing diameter slider through the cam and the plane lever to complete reducing diameter. The lifting of the quill axis is controlled by the motor, which is convenient and labor-saving.
Details Images

Automatic wire decoiler

The automatic wire feeder adopts Japanese Panasonic inverter control technology, which has the characteristics of accurate wire feeding, automatic adjustment of wire feeding speed, automatic alarm shutdown, and novel appearance.

Transformer


Transformer can be used for direct voltage conversion in different countries, the standard is 220V to 380V. Customized

Straightener

The straightening device ensures that the steel wire after straightening has no internal stress and the steel wire is smooth, which facilitates the subsequent processing work.

Machine panel


The eight slides work together, the assembly precision of the parts is high, and the machine runs for a long time.

Sanyo motor


Japan imported Sanyo Electric .Features: high precision motor, good stability, maintenance free, long use time
After Sales Service
" Professional, quality, service, innovation "  is our purpose, the company is committed to improve efficiency for customers and create value.

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.
Company Introduction
UNION SPRING is a high-tech enterprise specializing in R&D, design, manufacture and sales of CNC spring machine, has nearly 20 years spring machine manufacturing experience.

Our Services

Pre-Sales Service * Inquiry and consulting support.  * Sample testing support.  * View our Factory.

Mainly engaged in 2D/3D wire bending machine, camless spring machine, wire rotary spring machine, spring forming machine, high speed coiling machine, screw machine, wire decoiler, tempering furnace etc., is widely used in compression spring, tension springs, torsion springs and wire forming products, can meet the production needs of many industries, including automobiles, kitchen utensils, sanitary ware, carts, supermarket shelves, sports equipment, crafts, lighting, electronics, toys, home appliances and other industries.
FAQ
Q1: How long you can delivery ?
About 30 days after we received the deposit (30%T/T in advance ,70% T/T before shipment )

Q2: How about your equipment quality?
We guarantee that all equipment are CE&ISO standard and one year warranty, We invite you to visit our factory and inspect the equipment before packing

Q3: How is the service that your equipment beyond the warranty period?
Your project salesman and engineer will mail or telephone visit to you at regular intervals after sales, and will provide
equipment’s lifelong service.
