Quick Details
-
Weight:
-
2150 KG
-
Marketing Type:
-
New Product 2021
-
Mobility:
-
easy moving by crawler chassis
-
Product name:
-
GL-160 Mini HDD Drill Rig
-
Rig weight::
-
2.15t
-
Engine power::
-
55kw
-
Max. push & pull force::
-
160N.M/16TON P
-
Traveling form::
-
remote control
-
Walking speed::
-
2km/h
-
Water injection system::
-
160 type three-cylinder mud pump
-
Entry angle::
-
28°
-
Drill rod diameter::
-
50mm
-
Drill rod length::
-
2m
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Glorytek
-
Dimension(L*W*H):
-
3800*1600*1800mm
-
Weight:
-
2150 KG
-
Marketing Type:
-
New Product 2021
-
Mobility:
-
easy moving by crawler chassis
-
Product name:
-
GL-160 Mini HDD Drill Rig
-
Rig weight::
-
2.15t
-
Engine power::
-
55kw
-
Max. push & pull force::
-
160N.M/16TON P
-
Traveling form::
-
remote control
-
Walking speed::
-
2km/h
-
Water injection system::
-
160 type three-cylinder mud pump
-
Entry angle::
-
28°
-
Drill rod diameter::
-
50mm
-
Drill rod length::
-
2m
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Certification:
-
CE

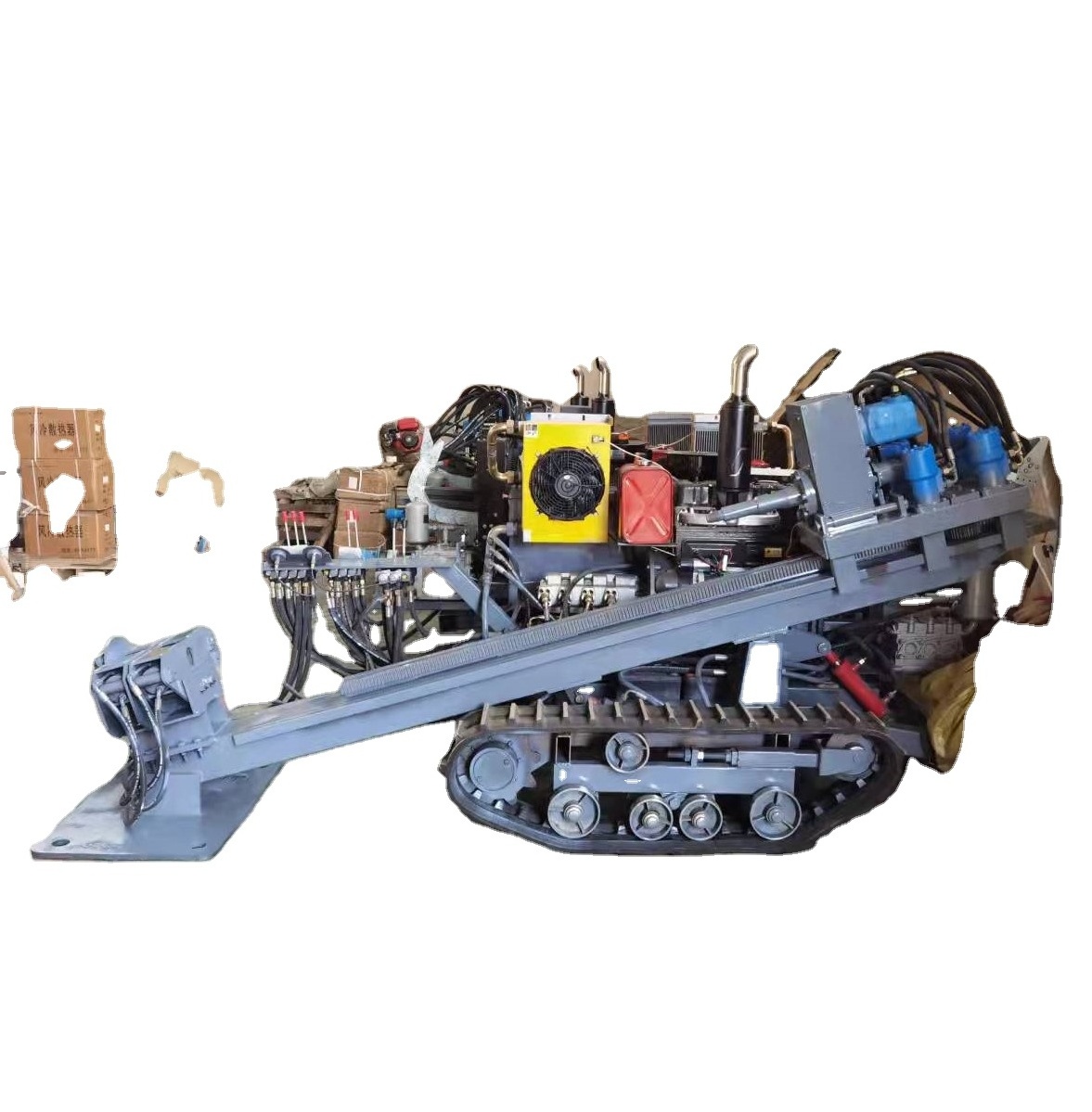

GL-160 Mini HDD Drill Rig
Product Description
|
Main Technical Parameters
|
|
Configuration List
|
|
||
|
Model:
|
GL-160 Mini HDD Drill Rig
|
HDD drill rig
(standard configuration) |
1set
|
||
|
Rig weight:
|
2.15t
|
|
|
||
|
Dimensions (L×W×H):
|
3800*1600*1800mm
|
Transmission and locating instrument
(optional) |
1set
|
||
|
Engine power:
|
55kw
|
|
|
||
|
Max. push & pull force:
|
160N.M/16TON
|
Pilot bit
(standard configuration) |
1pc
|
||
|
Traveling form:
|
remote control
|
|
|
||
|
Walking speed:
|
2km/h
|
Male and female pulling eye
(standard configuration) |
1set
|
||
|
Water injection system:
|
160 type three-cylinder mud pump
|
|
|
||
|
Max. pressure of mud pump:
|
2.8MPa
|
Drum Reamer
(standard configuration) |
2pcs
|
||
|
Max. flow of mud pump:
|
160L/min
|
|
|
||
|
Entry angle:
|
28°
|
Swivel(15T)
(standard configuration) |
1pc
|
||
|
Departure angle:
|
20°
|
|
|
||
|
Climbing ability:
|
35°
|
Drill rod
(standard configuration) |
2m/pc, 50pcs, for 100m
|
||
|
Drill rod diameter:
|
50mm
|
|
|
||
|
Drill rod length:
|
2m
|
|
|
||
Related Products
Click pictures to see more details
Packing and Transport
Packing: Standard packing
Delivery: Normally 25-30 days after your down payment.
Delivery: Normally 25-30 days after your down payment.
