- Product Details
- {{item.text}}
Quick Details
-
Power:
-
2.2kw
-
Weight:
-
70 kg
-
Dimension(L*W*H):
-
3180*1400*1230mm
-
Type:
-
press filter slurry
-
Filter Area:
-
30m2
-
Plate Size:
-
870*870mm
-
Cake Thickness:
-
30mm
-
Filter Chamber Volume:
-
460L
-
Plate NO.:
-
23
-
Filtration Pressure:
-
≥0.6MPa
-
Plate Material:
-
Reinforced polypropylene
-
Machine Supporter Material:
-
Carbon steel/Carbon steel covered with stainless steel
-
Name:
-
Membrane Filter Press to Filter Tortilla WasteWater In Food Industries
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GAODETEC
-
Voltage:
-
Customized
-
Power:
-
2.2kw
-
Weight:
-
70 kg
-
Dimension(L*W*H):
-
3180*1400*1230mm
-
Type:
-
press filter slurry
-
Filter Area:
-
30m2
-
Plate Size:
-
870*870mm
-
Cake Thickness:
-
30mm
-
Filter Chamber Volume:
-
460L
-
Plate NO.:
-
23
-
Filtration Pressure:
-
≥0.6MPa
-
Plate Material:
-
Reinforced polypropylene
-
Machine Supporter Material:
-
Carbon steel/Carbon steel covered with stainless steel
-
Name:
-
Membrane Filter Press to Filter Tortilla WasteWater In Food Industries
Product Overview

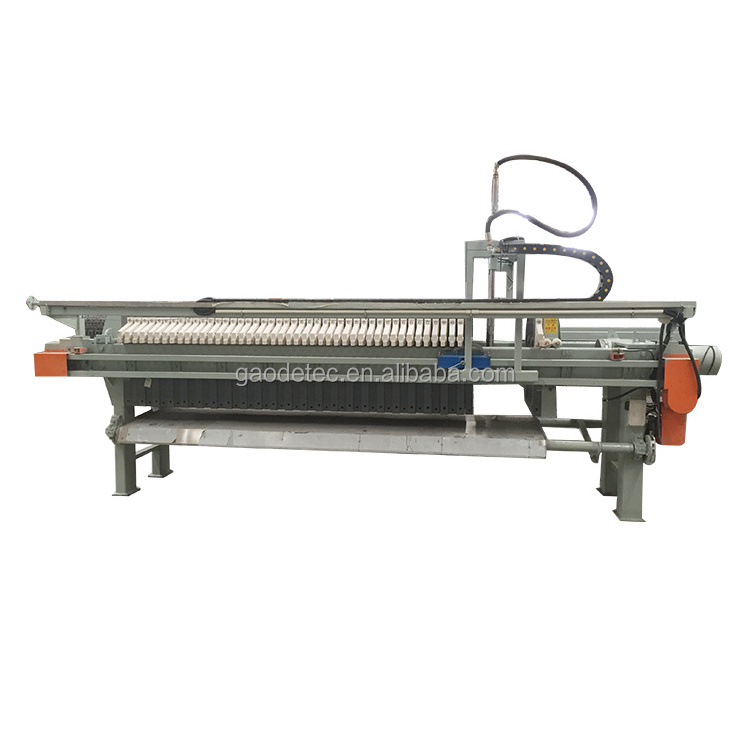

Fully Automatic Membrane Filter Press to Filter Tortilla Waste Water In Food Industries
Membrane filter press is one kind filter press that using the membrane filter plates. In the process of operation, in the end of feeding the material, high pressure liquid or gas(0.8-2.0MPa) medium can enter into membrane plate, then the whole membrane will expand to compress filter cake, and filter cake will be further dewatered, which is usually called membrane squeeze.
Features
1. The use of low pressure filtration and high pressure can greatly shorten the entire filtration cycle.
2. The material is TPE elastomer, the feeding pressure can reach 1.6MPa, and the pressing pressure can reach 2.0 MPa.
3. The moisture content is greatly reduced, saving subsequent costs.
4. Squeeze can choose air, inert gas, water, oil and other fluid media to meet the needs of different industries.
5. Strong corrosion resistance, basically suitable for all solid-liquid separation operations.
6. Membrane filter plate has the characteristics of anti-fatigue, anti-aging and good sealing performance.
2. The material is TPE elastomer, the feeding pressure can reach 1.6MPa, and the pressing pressure can reach 2.0 MPa.
3. The moisture content is greatly reduced, saving subsequent costs.
4. Squeeze can choose air, inert gas, water, oil and other fluid media to meet the needs of different industries.
5. Strong corrosion resistance, basically suitable for all solid-liquid separation operations.
6. Membrane filter plate has the characteristics of anti-fatigue, anti-aging and good sealing performance.
PRODUCT SPECIFICATIONS
|
Model
|
XMG30/870
|
XMG80/1000
|
||
|
Filter area(m
2
)
|
30
|
80
|
||
|
Plate size(mm)
|
870*870
|
1000*1000
|
||
|
Cake thickness(mm)
|
30
|
30
|
||
|
Chamber volume(L)
|
427
|
1093
|
||
|
Plate No.(pc)
|
23
|
45
|
||
|
Filtration pressure(MPa)
|
0.6
|
0.6
|
||
|
Motor Power(KW)
|
4
|
4
|
||
|
We have many types and models filter press for your option, for more info, just contact us freely~
|
|
|
||
Product Details
Plate shifter
Vibrate plate shifter
PP handles
1.
The filter plate is made of
food grade pure PP material
, so that the filter plate has excellent corrosion resistance, wear resistance and high temperature resistance.
2.
The filter plates are processed under CNC presses with pressures of 1000 tons, 2000 tons, 2500 tons, 3000 tons, and 3800 tons respectively, so as to obtain good pressure resistance and not easy to deform.
3.
The filter plate is polished by a machine to ensure a smooth surface, so that when the filter plate is pressed tightly, there is no gap in the middle
4. The filter plates are stacked to prevent deformation
Successful Project
Municipal sewage
Oil sludge
Wastewater treatment
Sesame paste
Coal washing
Bio Coconut Oil
Diesel
Desulfurization wastewater
Re-granulation of waste plastics
Related Product
Packaging&Shipping
In order to protect our filter press and avoid damage during transportation, our filter press is first wrapped with bubble film,
then wrapped with plastic wrap, then fixed with steel bars, and finally shipped in plywood boxes. If your filter press is too big to package, we will use container to package it.
then wrapped with plastic wrap, then fixed with steel bars, and finally shipped in plywood boxes. If your filter press is too big to package, we will use container to package it.
Factory
Our company has focused on manufacturing and selling filter press for more than 14 years.
Whether you have a question about filter press cloth selection, need performance optimization for an existing filter press, needspare press parts, or are embarking on a new filtration project, contact Gaode to put our expertise to work in your operation.
