Quick Details
-
Place of Origin:
-
JIANGSU, CHINA
-
Brand Name:
-
TAVAS OEM ODM
-
Dimension(L*W*H):
-
530 x 580 x 530 mm
-
Weight:
-
94
-
Rated power/speed:
-
3000/3600 rpm
-
Marketing Type:
-
2023 new tech
-
Warranty of core components:
-
12 months
-
Key Selling Points:
-
climate friendly powerful engine
-
Power output:
-
Crankshaft camshaft
-
Air filter options:
-
Dual stage, Oil bath, Cyclone
-
Camshaft PTO:
-
1800 rpm
-
Crankshaft PTO:
-
3600 rpm
-
Key start:
-
Optional
-
PTO types:
-
straight key, thread, Spline, Taper
-
Euro 5:
-
Optional
Quick Details
-
Displacement:
-
997cc
-
Emission Standard:
-
Euro 2 Euro 5
-
Power:
-
21.8kw
-
Place of Origin:
-
JIANGSU, CHINA
-
Brand Name:
-
TAVAS OEM ODM
-
Dimension(L*W*H):
-
530 x 580 x 530 mm
-
Weight:
-
94
-
Rated power/speed:
-
3000/3600 rpm
-
Marketing Type:
-
2023 new tech
-
Warranty of core components:
-
12 months
-
Key Selling Points:
-
climate friendly powerful engine
-
Power output:
-
Crankshaft camshaft
-
Air filter options:
-
Dual stage, Oil bath, Cyclone
-
Camshaft PTO:
-
1800 rpm
-
Crankshaft PTO:
-
3600 rpm
-
Key start:
-
Optional
-
PTO types:
-
straight key, thread, Spline, Taper
-
Euro 5:
-
Optional
Products Description

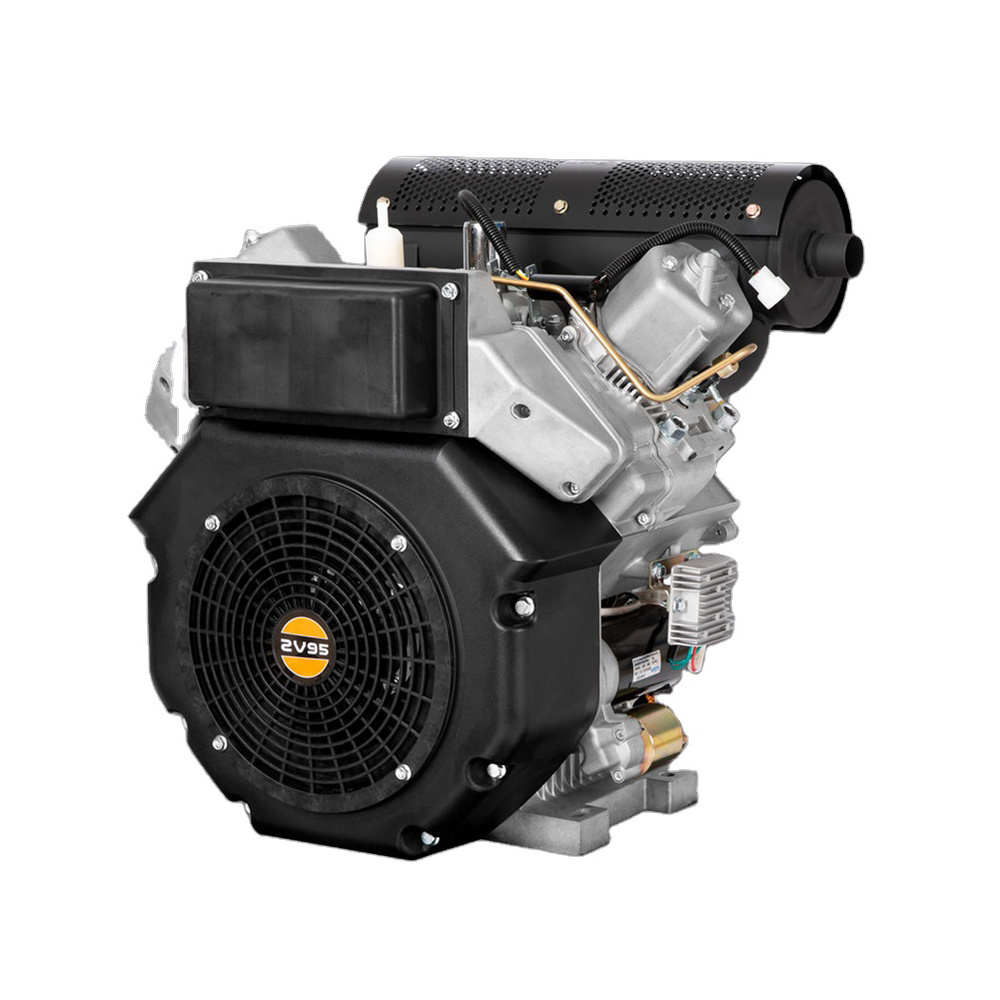

factory outlet good price for 2v92fe 1000cc four stroke air-cooled diesel engine
Air-cooled V-twin diesel engine support generator up to 22 kVA, Euro V emission certification Optional.
Control emissions, purify exhaust gas, and almost no odor can be heard a few meters away.
Reliable power operation, greatly reducing maintenance costs, and long service life.
|
Technical data
|
|
|
|
|
|
|
|
|||||||
|
Engine model
|
|
2V88F(E)
|
|
2V92F(E)
|
|
2V95F(E)
|
|
|||||||
|
Type
|
|
V-Two, 4-Stoke, Air Cooled
|
|
|
|
|
|
|||||||
|
Combustion System
|
|
Direct Injection
|
|
|
|
|
|
|||||||
|
Bore x Stroke
|
mm
|
88×75
|
|
92×75
|
|
95×88
|
|
|||||||
|
Displacement
|
cc
|
912
|
|
997
|
|
1247
|
|
|||||||
|
Engine speed
|
rpm
|
3000
|
3600
|
3000
|
3600
|
3000
|
3600
|
|||||||
|
Max Output
|
kW
|
18.6
|
20.2
|
20
|
21.8
|
24.3
|
25.6
|
|||||||
|
Continuous Output
|
kW
|
13.8
|
14.8
|
14.8
|
16
|
18.0
|
19.0
|
|||||||
|
PTO type
|
|
Crankshaft or Camshaft(1/2 rpm)
|
|
|
|
|
|
|||||||
|
Starting System
|
|
Electric
|
|
Electric
|
|
Electric
|
|
|||||||
|
Cooling System
|
|
Forced air-cooling by fly wheel fan
|
|
|
|
|
|
|||||||
|
Lubrication System
|
|
Forced lubrication at multiple points
|
|
|
|
|
|
|||||||
|
Oil Type
|
|
SAE10W30（CD Grade Above)
|
|
|
|
|
|
|||||||
|
Lubrication Volume
|
L
|
3.0
|
|
3.8
|
|
3.8
|
|
|||||||
|
Fuel Type
|
|
0#(Summer) or-10#(Winter) Light Diesel Oil
|
|
|
|
|
|
|||||||
|
Fuel Tank Capacity
|
L
|
—
|
|
—
|
|
—
|
|
|||||||
|
Fuel Consumption Rate
|
g/kW.h
|
250
|
260
|
250
|
260
|
250
|
260
|
|||||||
Customizable PTO types:
Straight Key shaft
Tapered shaft
Threaded shaft
Spline shaft
Customizable air filter:
Semi-dry type
Oil bath type
Cyclone type
Dual-stage type
Nitrided crankshaft with lifetime guarantee.
Precisely controlled fuel supply angles to ensure full
combustion and fuel economy
Crankshafts, camshafts and balance shafts all equipped
with top class bearings
High strength crankcase, secured with top quality #12.9
mild steel bolts
