Quick Details
-
Model Number:
-
KSP07-7T
-
Max. Current:
-
DC20A\10A
-
Mechanical Life:
-
50000 Cycles
-
Material:
-
Aluminum panel
-
Panel size:
-
114.5*240mm
-
Input:
-
DC12-24V
-
Certificate:
-
CE, IP TEST REPORT
-
Rocker Switch:
-
7 sets, ON-OFF, SPST
-
Fuse holders:
-
5A*4, 10A*2, 15A*1
-
Voltmeter range:
-
6-30V DC
-
Testing switch:
-
1 sets, ON-OFF
-
LED indicator:
-
Red, Blue
-
Waterproof:
-
IP68
Quick Details
-
Max. Voltage:
-
30V DC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KETO
-
Model Number:
-
KSP07-7T
-
Max. Current:
-
DC20A\10A
-
Mechanical Life:
-
50000 Cycles
-
Material:
-
Aluminum panel
-
Panel size:
-
114.5*240mm
-
Input:
-
DC12-24V
-
Certificate:
-
CE, IP TEST REPORT
-
Rocker Switch:
-
7 sets, ON-OFF, SPST
-
Fuse holders:
-
5A*4, 10A*2, 15A*1
-
Voltmeter range:
-
6-30V DC
-
Testing switch:
-
1 sets, ON-OFF
-
LED indicator:
-
Red, Blue
-
Waterproof:
-
IP68

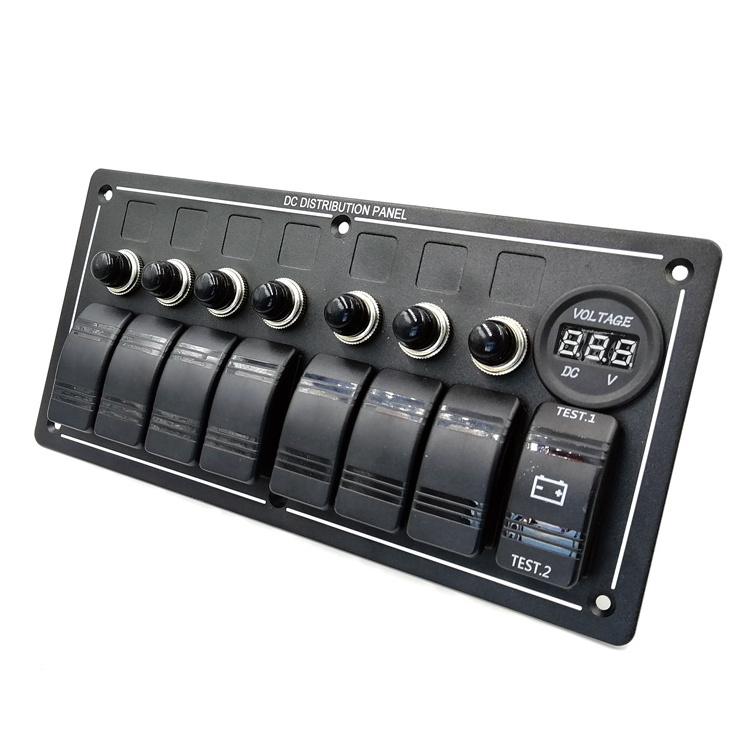

12V 24V DC Aluminum LED Marine Navigation Switch Panel with Battery Testing Switch
Product features
1. High-end RV Car/Boat modified switch, with LED work indicator;
2. CE certification quality, environmental protection and aluminum panel;
3. Suitable for all 12V-24V vehicle/Boat; Application for controlling modification equipment in vehicle/Boat;
4. Short circuit protection, overload protection, polarity reverse protection and multiple protection for safer.
Product Parameters
- Color:black
- Panel Size:114.5*240mm
- Installation size: 86*212mm
- Material: aluminum panel
- Weight: 670g
- Fuse holders: 5A*4, 10A*2, 15A*1
- Rocker Switch:7sets
- Switch function:ON-OFF, SPST
- Voltmeter range: 6-30V DC
- Testing switch: 1 sets, ON-OFF
- Operating Temperature:-25degree to 80degree
- Maximum continuous load: AC 125V/10A ,2V/20A,24V/10A
- Maximum input voltage: 30V DC
- Waterprooft grade: IP68
- Mechanical life: 10000 cycles
Product function: Control electrical equipment opening or closing in all 12V /24V vehicle/Boat.
