Quick Details
-
Use:
-
transplant trees
-
Place of Origin:
-
Shandong China
-
Brand Name:
-
Optimal
-
Weight:
-
4050 KG
-
Dimension(L*W*H):
-
customized
-
Marketing Type:
-
New Product 2024
-
Color:
-
orange
Quick Details
-
Number of Rows:
-
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
-
Type:
-
Tree moving all-in-one machine
-
Application:
-
Forests, gardens, cities
-
Use:
-
transplant trees
-
Place of Origin:
-
Shandong China
-
Brand Name:
-
Optimal
-
Weight:
-
4050 KG
-
Dimension(L*W*H):
-
customized
-
Marketing Type:
-
New Product 2024
-
Color:
-
orange

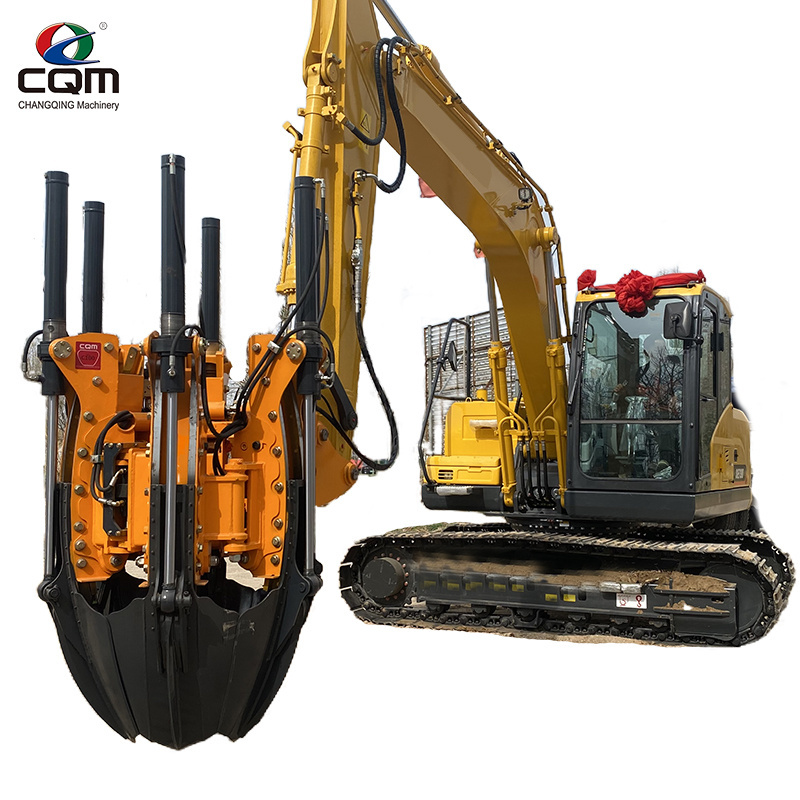

CQM T
ree Spade Machine
Advantages:
The main function of our tree spade machine is to transplant seedlings with soil balls. The principle of root cutting is to use hydraulic static cutting. The excavated soil balls are full and complete, retaining more roots to a greater extent, and the root cutting section is like cutting with a big knife neat and smooth without burrs This root cutting effect can ensure that the roots of the transplanted seedlings take root better after planting, and maximize the survival rate The CQM tree spade machine has high work efficiency, with one tree spade machine equivalent to 30 to 100 tree digging workers working simultaneously. The structure of the tree spade machine blade is compact from parts to components, and all blades are made of imported high-strength wear-resistant alloy plates.
Products Description
Recommend Products
Tree digger (flat type)
|
Item Model
|
|
C40-3
|
C50-4
|
C60-4
|
C70-4
|
C80-4
|
|
|
Soil ball size(cm)
|
Upper surface dlameter
|
43
|
55
|
60
|
73
|
81.2
|
|
|
|
Diameter of lower surface
|
24
|
28
|
32
|
38
|
44.5
|
|
|
|
Height
|
38
|
42
|
46
|
48
|
50
|
|
|
Shovel blade(piece)
|
|
3
|
4
|
4
|
4
|
4
|
|
|
Unladen weight(kg)
|
|
530
|
700
|
830
|
920
|
1050
|
|
|
Volume of ball(m³)
|
|
0.033
|
0.08
|
0.1
|
0.15
|
0.24
|
|
|
Applicable excavator tonnage(t)
|
|
5.5+
|
6+
|
6+
|
7+
|
7.5+
|
|
|
Unladen length and width(mm)
|
|
1070*1020*1120
|
1100*1100*1295
|
1120*1160*1425
|
1150*1190*1510
|
900*800*1616
|
|
|
Opening width(mm)
|
|
580
|
620
|
660
|
680
|
570
|
|
|
Matching integrated host model
|
CS400
|
√
|
×
|
×
|
×
|
×
|
|
|
|
CS450
|
√
|
√
|
√
|
√
|
√
|
|
|
|
CS500
|
√
|
√
|
√
|
√
|
√
|
|
|
|
CS550
|
√
|
√
|
√
|
√
|
√
|
|
|
Item Model
|
|
C80-6
|
C90-6
|
C100-6
|
C120-6
|
C140-6
|
|
|
Soil ball size(cm)
|
Upper surface dlameter
|
80.5
|
93
|
100
|
120
|
140
|
|
|
|
Diameter of lower surface
|
42.2
|
45.5
|
50.4
|
80
|
85
|
|
|
|
Height
|
53
|
57
|
60
|
76.5
|
87
|
|
|
Shovel blade(piece)
|
|
6
|
6
|
6
|
6
|
6
|
|
|
Unladen weight(kg)
|
|
1050
|
1080
|
1100
|
2000
|
2200
|
|
|
Volume of ball(m³)
|
|
0.24
|
0.28
|
0.32
|
0.6
|
0.9
|
|
|
Applicable excavator tonnage(t)
|
|
7.5+
|
9+
|
9.5+
|
20+
|
26+
|
|
|
Unladen length and width(mm)
|
|
910*855*1590
|
1050*950*1660
|
1130*1050*1705
|
1340*1250*2110
|
1560*1480*2350
|
|
|
Opening width(mm)
|
|
400
|
450
|
515
|
700
|
780
|
|
|
Matching integrated host model
|
CS400
|
×
|
×
|
×
|
×
|
×
|
|
|
|
CS450
|
×
|
×
|
×
|
×
|
×
|
|
|
|
CS500
|
√
|
√
|
√
|
×
|
×
|
|
|
|
CS550
|
√
|
√
|
√
|
×
|
×
|
|
Tree digger (flat type)
|
Item Model
|
|
C40A-3
|
C60A-4
|
C80A-4
|
C80A-6
|
C100A-6
|
C120A-6
|
C140A-6
|
|
|
Soil ball size(cm)
|
Upper surface dlameter
|
43
|
60
|
81.2
|
80.5
|
100
|
120
|
140
|
|
|
|
Diameter of lower surface
|
24
|
32
|
44.5
|
42.2
|
50.4
|
80
|
85
|
|
|
|
Height
|
38
|
46
|
50
|
53
|
60
|
76.5
|
87
|
|
|
Shovel blade(piece)
|
|
3
|
4
|
4
|
6
|
6
|
6
|
6
|
|
|
Unladen weight(kg)
|
|
560
|
860
|
800
|
1050
|
1200
|
2200
|
2200
|
|
|
Volume of ball(m³)
|
|
0.033
|
0.09
|
0.19
|
0.24
|
0.28
|
0.56
|
0.9
|
|
|
Applicable excavator tonnage(t)
|
|
5.5+
|
6+
|
7.5+
|
7.5+
|
9.5+
|
20+
|
26+
|
|
|
Unladen length and width(mm)
|
|
1070*
1020*1120
|
1120*
1160*1425
|
900*
800*1616
|
910*
855*1590
|
1130*
1050*1705
|
1340*
1250*2110
|
1560*
1480*2350
|
|
|
Opening width(mm)
|
|
580
|
660
|
570
|
400
|
515
|
700
|
780
|
|
|
Matching integrated host model
|
CS400
|
√
|
×
|
×
|
×
|
×
|
×
|
×
|
|
|
|
CS450
|
√
|
√
|
√
|
×
|
×
|
×
|
×
|
|
|
|
CS500
|
√
|
√
|
√
|
√
|
√
|
×
|
×
|
|
|
|
CS550
|
√
|
√
|
√
|
√
|
√
|
√
|
×
|
|
Technical parameters of tree removal all-in-one machine (host)
|
Parameters
|
|
Unit
|
CS450
|
CS500
|
CS550
|
||||
|
Rated load
|
|
kg
|
900
|
1050
|
1980
|
||||
|
Overturning load
|
|
|
1800
|
2100
|
3960
|
||||
|
Overall machine weight
|
|
|
4050
|
4820
|
5550
|
||||
|
Bucket capacity
|
|
m³
|
0.41
|
0.53
|
0.53
|
||||
|
Maximum operating height
|
|
|
4270
|
4295
|
4460
|
||||
|
Height of bucket articulating pin
|
|
|
3269
|
3290
|
3295
|
||||
|
Height of top with air conditioner
|
|
|
2400
|
2220
|
2250
|
||||
|
Max. horizontal height of bucket bottom
|
|
|
3090
|
3116
|
3126
|
||||
|
Length without attachment
|
|
|
2710
|
2889
|
2989
|
||||
|
Length with attachment
|
|
|
3910
|
4089
|
4189
|
||||
|
Max unloading height
|
|
|
2551
|
2543
|
2555
|
||||
|
Unloading distance
|
|
|
603
|
652
|
655
|
||||
|
Wheelbase
|
|
|
1050
|
1179
|
1200
|
||||
|
Ground clearance
|
|
|
202
|
202
|
202
|
||||
|
Tire edge width
|
|
|
1817
|
|
1917
|
||||
|
Width of outer track edge
|
|
|
1917
|
|
2017
|
||||
|
Bucket edge width
|
|
|
1800
|
|
|
||||
|
Departure angle
|
|
°
|
24°
|
|
|
||||
|
Unloading angle (maximum height)
|
|
|
38°
|
|
|
||||
|
Diesel tank capacity
|
|
L
|
88
|
|
100
|
||||
|
Engine
|
Brands
|
|
Mitsubishi
|
Kubota
|
Kubota
|
||||
|
|
Output power
|
HP/kw
|
65/47
|
92/67.6
|
92/67.6
|
||||
|
|
Rotational speed
|
r/min
|
2500
|
|
2400
|
||||
|
|
Cooling
|
|
Water-cooled
|
|
|
||||
|
|
Operation mode
|
|
Liquid-Controlled
|
|
|
||||
|
Performance
Parameters
|
Lifting mode
|
|
Hydraulic radial
|
|
|
||||
|
|
Tire standard
|
|
12-16.5
|
|
|
||||
|
|
Maximum travel speed
|
km
|
11.7
|
13
|
|
||||
|
|
Working flow rate
|
U/min
|
75
|
83
|
103
|
||||
|
Hydraulic parameters
|
Working pressure
|
bar
|
230
|
|
|
||||
|
|
Hydraulic oil tank capacity
|
L
|
70
|
|
82
|
||||
|
Outside tire tracks
|
|
|
√
|
|
|
||||
|
