Quick Details
-
Dimension(L*W*H):
-
3500*2100*2600
-
Production Capacity:
-
38m/min
-
Condition:
-
New
-
Type:
-
Pipe Molding Machine
-
Pipe Material:
-
Carbon Steel
-
Application:
-
Drain Pipe
-
Name:
-

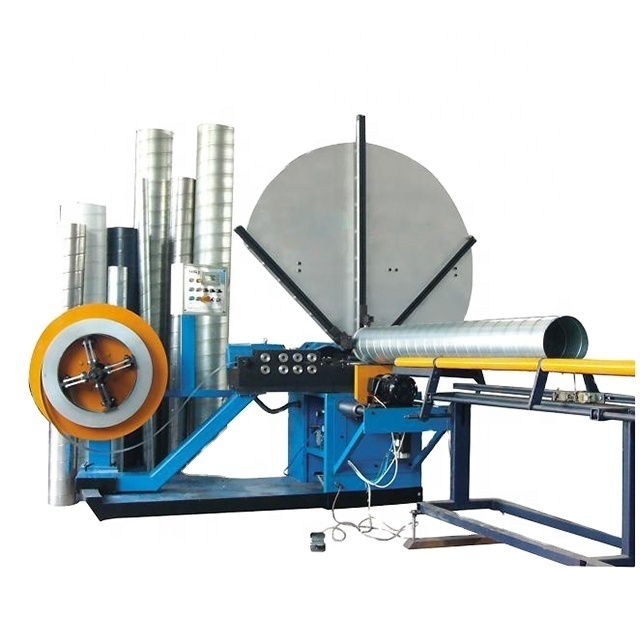

spiral duct machine
-
Color:
-
Customer's Requirement
-
Feature:
-
Produce Flexible Hose Continuously
-
diameter range:
-
80-1500mm
-
tube length:
-
125-6000 mm
-
strip width:
-
137mm
-
Certification:
-
ce
Quick Details
-
Brand Name:
-
Bosslaser
-
Place of Origin:
-
jiangsu china
-
Power:
-
5500
-
Dimension(L*W*H):
-
3500*2100*2600
-
Production Capacity:
-
38m/min
-
Condition:
-
New
-
Type:
-
Pipe Molding Machine
-
Pipe Material:
-
Carbon Steel
-
Application:
-
Drain Pipe
-
Name:
-
spiral duct machine
-
Color:
-
Customer's Requirement
-
Feature:
-
Produce Flexible Hose Continuously
-
diameter range:
-
80-1500mm
-
tube length:
-
125-6000 mm
-
strip width:
-
137mm
-
Certification:
-
ce
Product Description
1, patented mold, easy to adjust, and has its own patent, replace the mold more trouble and save the province of materials
2, high-speed synchronous cutting system
3, PLC control
4, can be on-site construction
5, can be adjusted
6, high-quality products, high-quality services
7, the system can handle galvanized sheet, aluminum
8, automatic roll out of equipment
9, can produce a variety of different diameter spiral tube
2, high-speed synchronous cutting system
3, PLC control
4, can be on-site construction
5, can be adjusted
6, high-quality products, high-quality services
7, the system can handle galvanized sheet, aluminum
8, automatic roll out of equipment
9, can produce a variety of different diameter spiral tube
Size Information
|
Type
|
DML-1500
|
|
|
|
Diameter range
|
Φ80-φ1500mm
|
|
|
|
Tube length
|
125-6000mm
|
|
|
|
Strip width
|
137mm
|
|
|
|
Lock seam
|
Outside tube,on the inside on request
|
|
|
|
Material
|
Galvanization
|
0.4-1.2mm
|
|
|
|
Stainless steel
|
0.4-0.8mm
|
|
|
|
Aluminum
|
0.4-1.2mm
|
|
|
Strip speed
|
Max:38m/min
|
|
|
|
Dimensions
|
2650x1550x2000mm
|
|
|
|
Weight
|
2200kg
|
|
|
|
Control system
|
PLC automatic control
|
|
|
|
Main motor power
|
5.5KW
|
|
|
|
The power of cutting motor
|
4KW
|
|
|
|
Electrical
|
380V/50Hz/3PH Customizable voltage
|
|
|
|
Working pressure
|
0.5-0.7Mpa
|
|
|
