Quick Details
-
Max. Resolution:
-
203dpi,8dots/mm
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
Accessory specification:
-
/
-
Dimension:
-
79*110*45mm
-
Paper width:
-
57mm
-
Life cycle time:
-
50km(printing density under 12.5%)/100 million pulses
-
Power:
-
2000mAh 7.4V rechargeable Lithium battery
-
commands:
-
ESC/POS compatible with order sets
-
print width:
-
48mm
-
System:
-
Android and IOS both
-
Max diameter of paper roll:
-
40mm
-
Dot per line:
-
384 dots/line
-
internal characters:
-
ASCII CH(8x16,9x17,9x24,12x24); GB18030(16x16,24x24)
Quick Details
-
Max Paper Size:
-
80mm
-
Black Print Speed:
-
90mm/sec.
-
Color Print Speed:
-
/
-
Max. Resolution:
-
203dpi,8dots/mm
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
Accessory specification:
-
/
-
Dimension:
-
79*110*45mm
-
Paper width:
-
57mm
-
Life cycle time:
-
50km(printing density under 12.5%)/100 million pulses
-
Power:
-
2000mAh 7.4V rechargeable Lithium battery
-
commands:
-
ESC/POS compatible with order sets
-
print width:
-
48mm
-
System:
-
Android and IOS both
-
Max diameter of paper roll:
-
40mm
-
Dot per line:
-
384 dots/line
-
internal characters:
-
ASCII CH(8x16,9x17,9x24,12x24); GB18030(16x16,24x24)
Product Description
1. Support Android and IOS both
2. Print logo,language,number,barcode
3. CE certificated

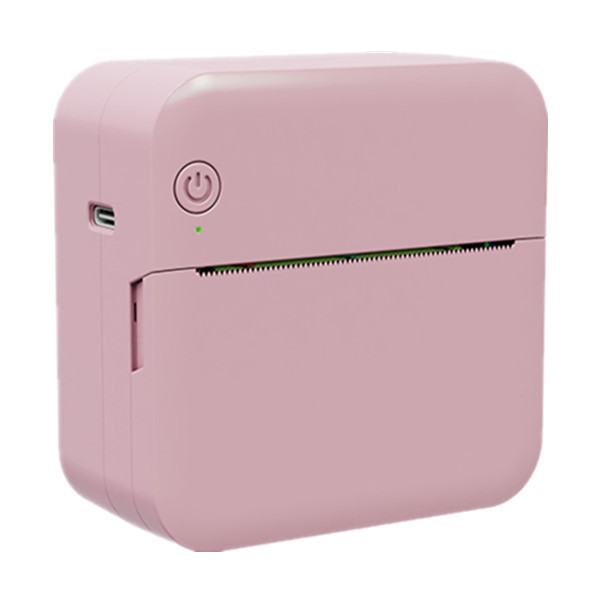

58mm mini mobile thermal receipt printer for android
Portable device suited for outdoor usage
Black mark paper location sensor
Low battery indicator(7.4V,2000mAh)
Equipped with lithium battery for 8 hours continuous work
|
Model
|
P7
|
|
Dimension
|
79*110*45mm
|
|
Print method
|
Line thermal printer
|
|
Paper width
|
57mm
|
|
print width
|
48mm
|
|
Weight ( g)
|
235 (not including the paper roll)
|
|
Max diameter of paper roll
|
40mm
|
|
Dot per lie
|
384 dots/line
|
|
internal characters
|
ASCII CH(8x16,9x17,9x24,12×24); GB18030(16x16,24×24)
|
|
Print speed
|
50~80mm/s
|
|
Life cycle time
|
50km(printing density under 12.5%)/100 million pulses
|
|
text and graphic Support
|
English, figure, symbol, Chinese, graph, curve, icon pre-stored, barcode(CODE39EAN13EAN8 CODABARCODE128CODE93ITF)
QR code ,PDF417 |
|
Dot pitch (resolution)
|
203DPI/8 dots/mm 304DPI
|
|
interface
|
Mini USB
|
|
Power
|
2000mAh 7.4V rechargeable Lithium battery
|
|
Recharge adapter
|
Stand by recharging / AC adapter
|
|
Self-check
|
Without paper / cover open
|
|
Black mark test
|
Supported
|
|
Paper feeding
|
Easy paper loading
|
|
commands
|
ESC/POS compatible with order sets
|
|
Paper cut
|
By hands
|
|
operate setting
|
Temperature -10°C~50°C ; Humidity 20%~85%
|
|
Recharge Setting
|
Temperature 5°C~40°C; Humidity 20%~85%
|
|
Storage Setting
|
Temperature -20°C~70°C ; Humidity 5%~95%
|
|
Standard accessories
|
Long-term preservable paper,AC adapter,li-ion battery,USB cable
|
|
Optional accessories
|
Serial interface cable/leather coat/CD
|
