Quick Details
-
Customized support:
-
Yes
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Taidacent
-
Model Number:
-
wireless remote relay switch
-
Operating Temperature:
-
-10C to 70C
-
Voltage input:
-
DC12V/24V/AC220V optional
-
Working current:
-
Less than 180mA
-
Quiescent current:
-
Less than 10mA
-
Receive sensitivity:
-
-109DB
-
Working frequency:
-
Default 315mhz(433mhz customerized)
-
Size:
-
75*57.8*20mm
-
Transmitter distance:
-
200m
-
Certification:
-
other
Quick Details
-
Max. Current:
-
10A
-
Max. Voltage:
-
220V
-
Network:
-
433mhz radio transmsitter
-
Customized support:
-
Yes
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Taidacent
-
Model Number:
-
wireless remote relay switch
-
Operating Temperature:
-
-10C to 70C
-
Voltage input:
-
DC12V/24V/AC220V optional
-
Working current:
-
Less than 180mA
-
Quiescent current:
-
Less than 10mA
-
Receive sensitivity:
-
-109DB
-
Working frequency:
-
Default 315mhz(433mhz customerized)
-
Size:
-
75*57.8*20mm
-
Transmitter distance:
-
200m
-
Certification:
-
other

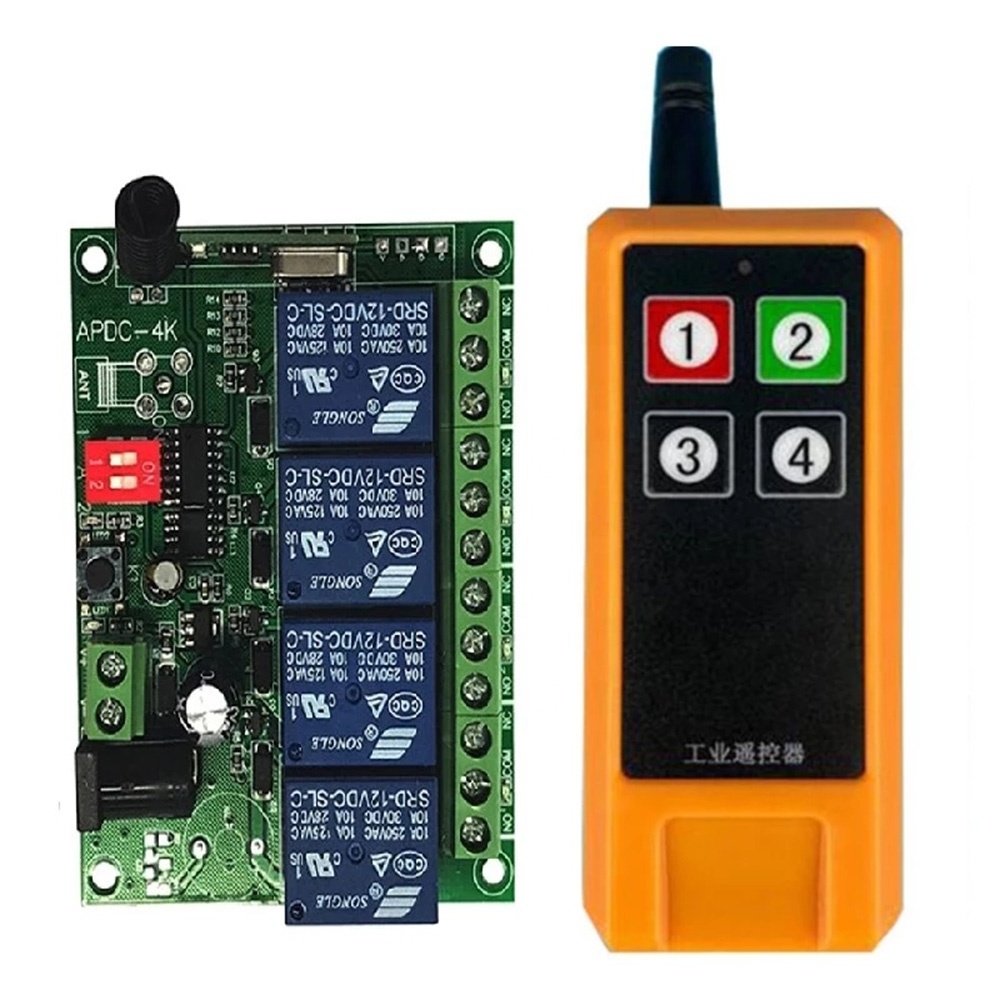

Taidacent DC 12V 24V 10A 4CH RF Switch 433mhz 4 Channel Relay Wireless Remote Control Transmitter Receiver Switch for Fan Motor
Specification
|
Model Number
|
wireless remote relay switch
|
|
Operating Temperature
|
-10C to 70C
|
|
Max. Current
|
10A
|
|
Max. Voltage
|
220V
|
|
Voltage input
|
DC12V/24V/AC220V optional
|
|
Working current
|
Less than 180mA
|
|
Quiescent current
|
Less than 10mA
|
|
Receive sensitivity
|
-109DB
|
|
Working frequency
|
Default 315mhz(433mhz customerized)
|
|
Size
|
75*57.8*20mm
|
|
Transmitter distance
|
200m
|
Output mode
s:
signal self-locking, signal unlocking,signal interlocking,signal unlocking and self-locking coexist.
1. Signal self-locking: in the function selection (dial 1 and 2 of the DIP switch to the ON position), press the A key of the remote control, and the relay corresponding to the A key will attract and hold, and then press the A key, the A relay will be disconnected; press the remote control Press the B key of the device, the B key corresponds to the relay pick-up and hold, and then press the B key, the B relay is disconnected, and the C key and the D key work in this cycle.
2. Signal non-locking: in function selection (keep 1 and 2 of the DIP switch at position 12), press the A key of the remote control, the relay corresponding to the A key is pulled in, and the relay is disconnected after releasing it; press the B key, The relay corresponding to the B key is pulled in, and then disconnected when released, and the C key and D key work in this cycle.
3. Signal interlocking: in function selection (turn 1 of the DIP switch to the ON position), press the A key of the remote control, the corresponding A relay will pick up and hold; press the B key, the A relay will be disconnected, and the corresponding A relay The relay picks up and holds. The C key and the D key work in this cycle.
4. Signal self-locking + unlocking: in the function selection (turn 2 of the DIP switch to the ON position), there are four relays corresponding to the remote control, of which 1 channel and 2 channels are self-locking, and 3 channels and 4 channels are unlocked.
Learning method
After the receiver is powered on, press the pair code button to see the pair code light on and let go, enter the learning state, and press any button on the remote control to transmit a signal. After the receiver receives the signal, the indicator light flashes about once, indicating that the learning is successful.
Code clearing method
After the receiver is powered on, press and hold the code key for about 10 seconds until the code pair indicator turns off, that is, the code is cleared successfully.
Product Description
Packing & Delivery
Box package
