Quick Details
-
Model Number:
-
PIPE
-
Specification:
-
1/2"-6"
-
Length:
-
4m or customization
-
Thickness:
-
2.0
-
Standard:
-
DIN8077, DIN8078,ISO15874
-
MATERIAL:
-
POLYPROPYLENE
-
PRESSURE RATING:
-
PN12.5, PN16, PN20, PN25
-
SIZE RANGE:
-
20-160MM
-
STANDARD:
-
DIN8077, DIN8078,ISO15874
-
COLORS:
-
GREEN, WHITE, GREY, BLUE
-
CERTIFICATE:
-
ISO14001, OHSAS18001, ISO9001, CE
-
CONNECTION:
-
SOCKET FUSION
-
APPLICATION:
-
WATER SUPPLY
-
COMPRESSIVE STRENGTH:
-
HIGH PRESSURE RESISTANT
-
SERVICEABLE LIFE:
-
MORE THAN 50 YEARS
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
WATERCORE
-
Model Number:
-
PIPE
-
Specification:
-
1/2"-6"
-
Length:
-
4m or customization
-
Thickness:
-
2.0
-
Standard:
-
DIN8077, DIN8078,ISO15874
-
MATERIAL:
-
POLYPROPYLENE
-
PRESSURE RATING:
-
PN12.5, PN16, PN20, PN25
-
SIZE RANGE:
-
20-160MM
-
STANDARD:
-
DIN8077, DIN8078,ISO15874
-
COLORS:
-
GREEN, WHITE, GREY, BLUE
-
CERTIFICATE:
-
ISO14001, OHSAS18001, ISO9001, CE
-
CONNECTION:
-
SOCKET FUSION
-
APPLICATION:
-
WATER SUPPLY
-
COMPRESSIVE STRENGTH:
-
HIGH PRESSURE RESISTANT
-
SERVICEABLE LIFE:
-
MORE THAN 50 YEARS
Product Description
|
|
|
THICKNESS(MM)
|
|
|
|
PACKAGE (M/BAG)
|
|||
|
|
|
S5 1.25 MPA
|
S4 1.6MPA
|
S3.2 2.0MPA
|
S2.5 2.5 MPA
|
|
|||
|
1/2"
|
20
|
2.0
|
2.3
|
2.8
|
3.4
|
120
|
|||
|
3/4"
|
25
|
2.3
|
2.8
|
3.5
|
4.2
|
120
|
|||
|
1"
|
32
|
2.9
|
3.6
|
4.4
|
5.4
|
80
|
|||
|
1 1/4"
|
40
|
3.7
|
4.5
|
5.5
|
6.7
|
60
|
|||
|
1 1/2"
|
580
|
4.6
|
5.6
|
6.9
|
8.3
|
40
|
|||
|
2"
|
63
|
5.8
|
7.1
|
8.6
|
10.5
|
24
|
|||
|
2 1/2"
|
75
|
6.8
|
8.4
|
10.3
|
12.5
|
16
|
|||
|
3"
|
90
|
8.2
|
10.1
|
12.3
|
15.0
|
8
|
|||
|
4"
|
110
|
10.0
|
12.3
|
15.1
|
18.3
|
8
|
|||
|
6"
|
160
|
14.6
|
17.9
|
21.9
|
26.6
|
4
|
|||

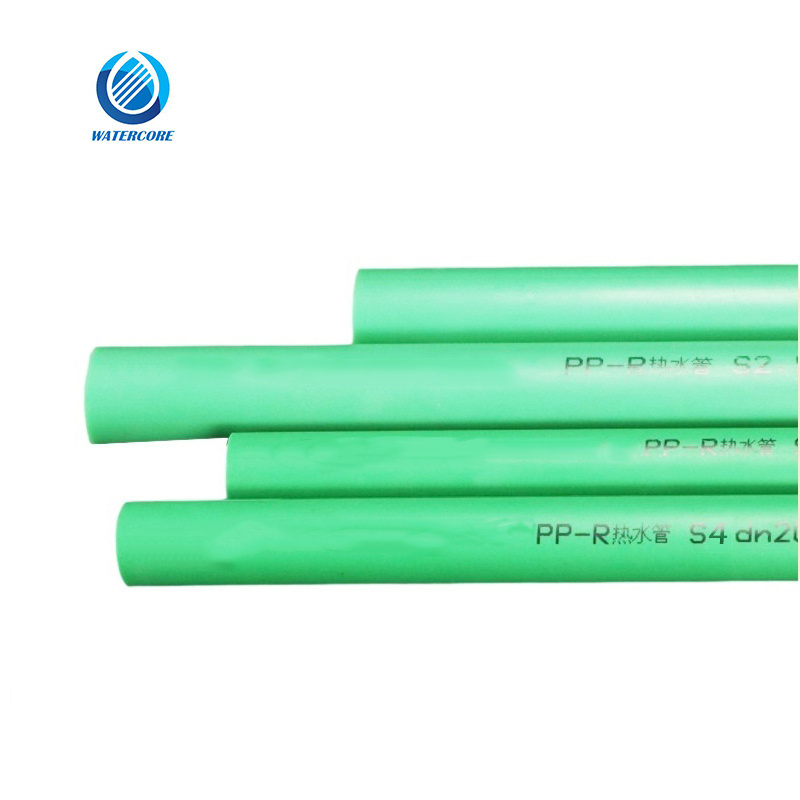

PPR PIPE
PPR PIPE
Advantages:
(1)High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.
(1)High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.
(2)Non-Toxic: no heavy metal additives，would not be covered with dirt or contaminated by bacterium.
(3)Corrosion Resistance: resist chemical matters and electron chemical corrosion.
(4)Low Installation Costs: light weight and ease of installation can reduce installation costs.
(5)High Flow Capacity: smooth interior walls.Result in low pressure loss and high volume.
(6)Longevity: more than 50 years under proper use.
Applications:
(1)Municipal water supply
(2)Commercial&Residential water supply
(3)Industrial Liquids transportation
(4)Sewage treatment
(2)Commercial&Residential water supply
(3)Industrial Liquids transportation
(4)Sewage treatment
Specification
|
Description
：
|
|
|
|
ITEM
|
PPR PIPE
|
|
|
MATERIAL
|
POLYPROPYLENE
|
|
|
PRESSURE RATING
|
PN12.5, PN16, PN20, PN25
|
|
|
SIZE RANGE
|
20-160MM
|
|
|
STANDARD
|
DIN8077, DIN8078,ISO15874
|
|
|
COLORS
|
GREEN, WHITE, GREY, BLUE
|
|
|
CERTIFICATE
|
ISO14001, OHSAS18001, ISO9001, CE
|
|
|
CONNECTION
|
SOCKET FUSION
|
|
Product display
The Watercore PP-R pipes and fittings has the advantages of health, environmental protection, high strength and light weight, corrosion resistance, smooth inner wall and no scale, easy construction and easy maintenance, long life and other advantages,which can be widely used in home field in the area of water supply system.
PPR pipes and PPR fittings can be connected by socket welding.
