Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BaoHua
-
Model Number:
-
GT526 Pro
-
Warranty:
-
3 Years
-
Max.wheel diameter::
-
1120mm(44")
-
Max.wheel width:
-
420mm(16")
-
Inside chuck size:
-
12"-26"
-
Outside chuck size:
-
10"-24"
-
Working pressure::
-
8-12bar
-
Separation shovel power:
-
2800kg
Quick Details
-
Motor Power:
-
0.75/1.1kw
-
Operating Pressure:
-
8-12bar
-
Power Supply:
-
220V 1phase or 380V 3phase
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BaoHua
-
Model Number:
-
GT526 Pro
-
Warranty:
-
3 Years
-
Max.wheel diameter::
-
1120mm(44")
-
Max.wheel width:
-
420mm(16")
-
Inside chuck size:
-
12"-26"
-
Outside chuck size:
-
10"-24"
-
Working pressure::
-
8-12bar
-
Separation shovel power:
-
2800kg

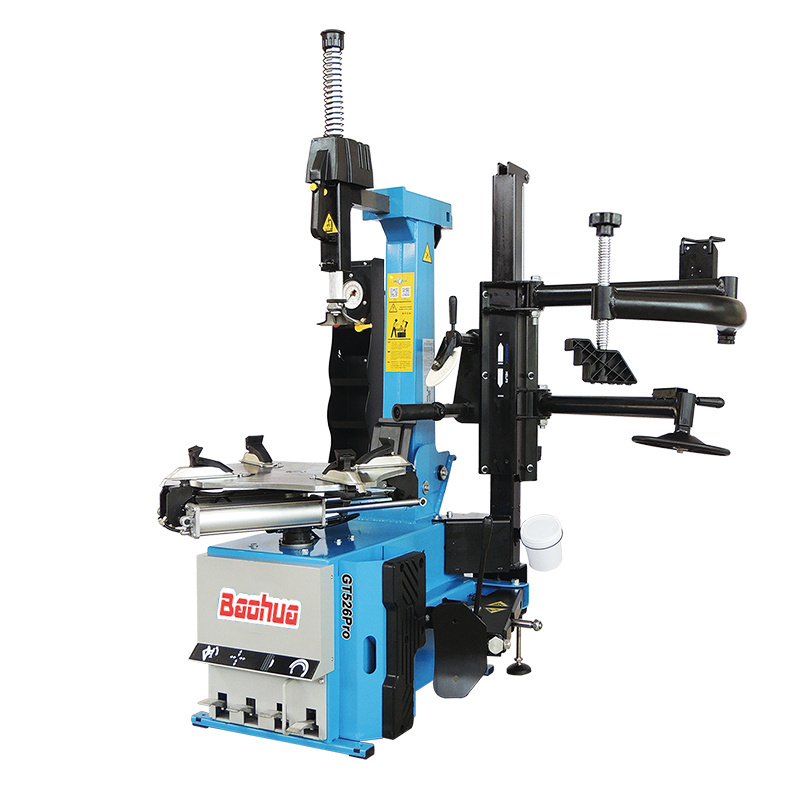

Full automatic car tire changer
1.It assemble and disassemble small and medium car tires, run-flat tire, fat tire, tubeless tires.
2.Foot pneumatic valve piston rod is made of pure steel, so the surface is more smooth and corrosion resistance, longer life. Drawer control assembly, simple structure, fast and easy maintenance.
3.The trapezoid column base make sure that car tire changer won't shake when disassembling heavy SUV or Car tire.
4.Column can be returned back, car tire changer can expand more room for operation and avoid accidental injury when clamping hub.
5.Thickness is 15mm wheel chuck parts, with the function of claw size fine adjustment, claw can precise(fine) control at any position, convenient for clamp the wheel, to avoid accidentally injure.
6.Using 3mm thickness steel plate combined cabinet, firm structure, weld concealment, beautiful appearance.
7.Best quality all-aluminum cooper motor with advantages of faster heat dissipation, low loss, high power.
8.180mm all-aluminum double-inlet tread separation cylinder, fully sealed design, low pressure supported, longer service life.
9.Help 5 auxiliary pneumatic lever arm means double and single crank pressure tire design, tire fitting job multi-assisted pressure tires. The lower plate, in the demolition process can be assisted tire lifts. One lifting slide design, with fine-tuning to ensure smooth lifting and stability, more efficient and easier to use.
10.3pcs Pressing bar for disassembling car tire and 1pc lifting bar for assembling car tire.
