Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Exceedconn
-
Model Number:
-
EP030-0234-00
-
Name:
-

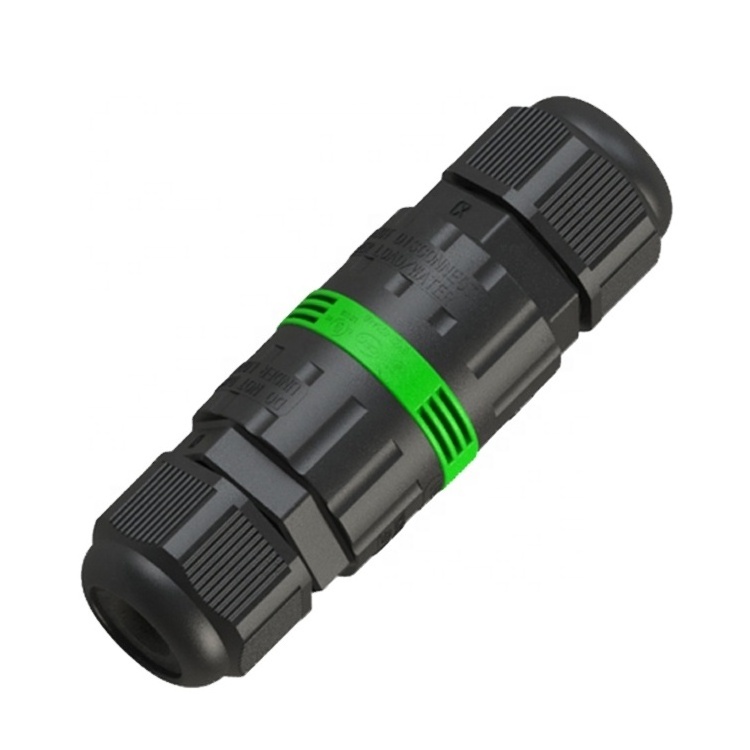

3 Pin Electrical Screw Lock IP68 waterproof Cable Connector
-
Protection level:
-
IP68
-
Termination:
-
Screw Clamp
-
Color:
-
Black
-
Place of Origin::
-
China
-
Rated Voltage:
-
450V AC
-
Plating:
-
copper alloy with Ni
-
Material:
-
PA66 and PA66 30%GF
-
Rated current:
-
17.5A
Quick Details
-
Type:
-
connector components
-
Application:
-
Lighting
-
Gender:
-
Female
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Exceedconn
-
Model Number:
-
EP030-0234-00
-
Name:
-
3 Pin Electrical Screw Lock IP68 waterproof Cable Connector
-
Protection level:
-
IP68
-
Termination:
-
Screw Clamp
-
Color:
-
Black
-
Place of Origin::
-
China
-
Rated Voltage:
-
450V AC
-
Plating:
-
copper alloy with Ni
-
Material:
-
PA66 and PA66 30%GF
-
Rated current:
-
17.5A
Product Description
| Ordering Information | |
| Ordering No. | Cable Seal Dia.(mm) |
| 910000204 | 6.0mm |
| 910000206 | 7.0mm |
| 910000201 | 8.0mm |
| 910000202 | 9.5mm |
| 910000203 | 11.5mm |
| 910000205 | 12.5mm |
| HS CODE | 8536300000 |
| Standard Packing Quantity / Carton | 400PCS/Carton |
| Gross Weight / PCS | 29.1g/PCS |
| Electrical Performance | |
| Rated Voltage | 450V AC(TUV/CQC) |
| 300V AC(UL) | |
| Rated Impulse Voltage | 2500V |
| Rated Current | 17.5A |
| Contact Resistance | ≤10mΩ |
| Insulation Resistance | ≥1000MΩ |
| Mechanical Capacity | |
| Cable Retention | OD:5.5~9.0,F≥80N; OD:9~12,F≥100N; OD:12~12.5,F≥120N; |
| Connector insertion force / | ≤80N |
| Pullout force | |
| Connector Insert and pullout frequency | 500 |
| Cable Cross Section | 0.5~2.5mm² |
| Operational Environment | |
| Protection Degree | IP68 1m-1H |
| Ambient Temperature | -40℃~+85℃ |
| Sealing element | 960℃ |
| Flammability class(Insulator) | V-2 |
| Material | |
| Plastic | PA66 and PA66 30%GF |
| Conductor | Copper Alloy with Ni Plating |
| Sealing element | Silicone |
| Connecting Screw | Iron Alloy Ni Plating |
Packaging & Shipping
Packing: 250pcs/PE bag, two PE bags/ctn, total 500psc/ctn. Carton size:46*34*25cm
