Quick Details
-
No-Load Speed:
-
52000
-
Disc(Wheel) Type:
-
Grinding Disc
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
yuetai
-
Model Number:
-
TLL-03
-
Rated Voltage:
-
0
-
Frequency:
-
0
-
Dimensions:
-
196*28
-
Weight:
-
180g
-
COLOR:
-
BLACK
Quick Details
-
Type:
-
Mini Grinder
-
Variable Speed:
-
Yes
-
Rated Input Power:
-
0.63mpa
-
No-Load Speed:
-
52000
-
Disc(Wheel) Type:
-
Grinding Disc
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
yuetai
-
Model Number:
-
TLL-03
-
Rated Voltage:
-
0
-
Frequency:
-
0
-
Dimensions:
-
196*28
-
Weight:
-
180g
-
COLOR:
-
BLACK

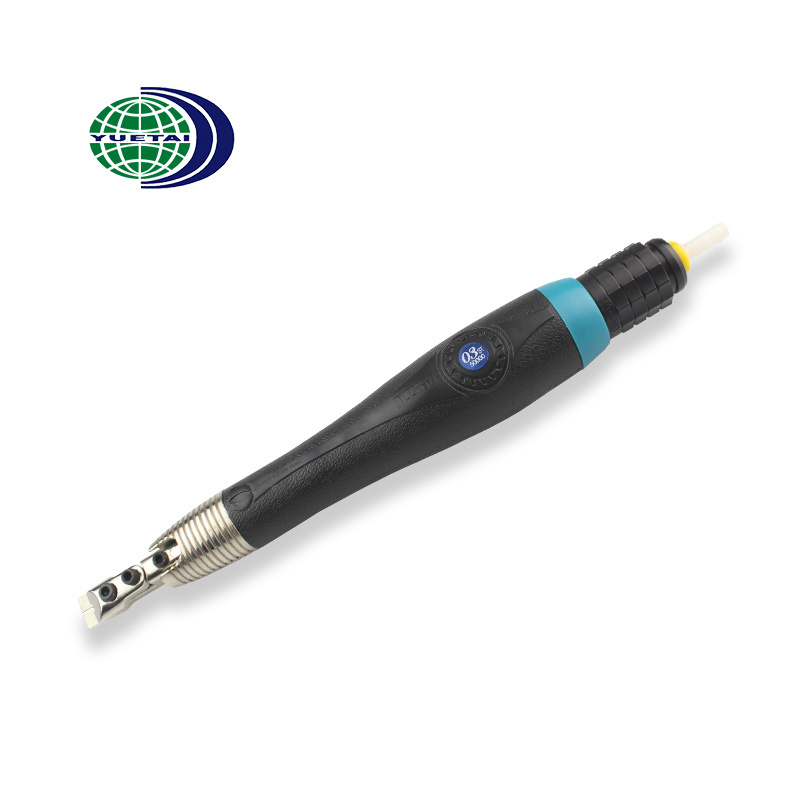

High Quality Micro Air Pencil Grinder with kit
What IS THE DETAILS OF OUR GRINDER ?
| Item Name |
High Quality Micro Air Pencil Grinder with kit TLL-03 |
| Variable Speed | Yes |
| Max.Free Speed | 52,000RPM |
| Stroke | 0.3mm |
| Air Pressure Supply | 0.63MPa |
| Working Path | Linear reciprocation |
| Weight | 180g |
| Size | 196*28mm |
| Mass Production Time | 7-10 days for 50 sets, depends on the order quantity. |
| Use | It applies in what need to be grinded, rubbed, carved and mirror polished. |
| Matching Components |
1) wrench: 1pcs 2) collet: 2pcs 3) diamond file: 1pcs 4) over hose: 0.4meter 5) air hose: 1.2 meter 6) hose band: 2pcs |
DISSECTION OF SUBJECT
1.collet 2.shell 3.L-03crust 4.L-07crust 5.L-12crust
6.S-03crust 7.S-07crust 8.S-12crust 9.C-ring
10.inner aluminium shell 11.L-03bearing 12.S-03bearing 13.L-07,12bearing
14.S-07,12bearing 15. 16 , 15-A mian mast handle 15-B main mast piece 15-C main mast piece
17.03turbo 18.07turbo 19.12turbo 20.03pipe nib
21.07,12pipe nib 22.O-ring 23.03trail cap 24.07trail cap
25.12trail cap 26.intake shaft 27.O-bearing 28.O-bearing
29.screw cap 30.switch 31.snap ring 32.glue pipe
33.over hose 34.sub-tie-in 35.hexagon wrench 36.O-ring
37.O-ring
MAINTENANCE OF TOOLS
1. Add oil usually (pneumatic oil or decatizing oil).
2. You should fix a separator of oil and water air pressure machine, or always clean its sewage.
3. Its fever heat is normal when the tool operate without any load. Otherwise, operation with load will get
cooling gradually.
4. Ask professional staff to maintain the tools.
PACKAGE OF TOOLS
Usually we use simple package by plastic box, then 1 sets per inner box. 50 sets per carton.
Carton size is 40*40*34cm.
