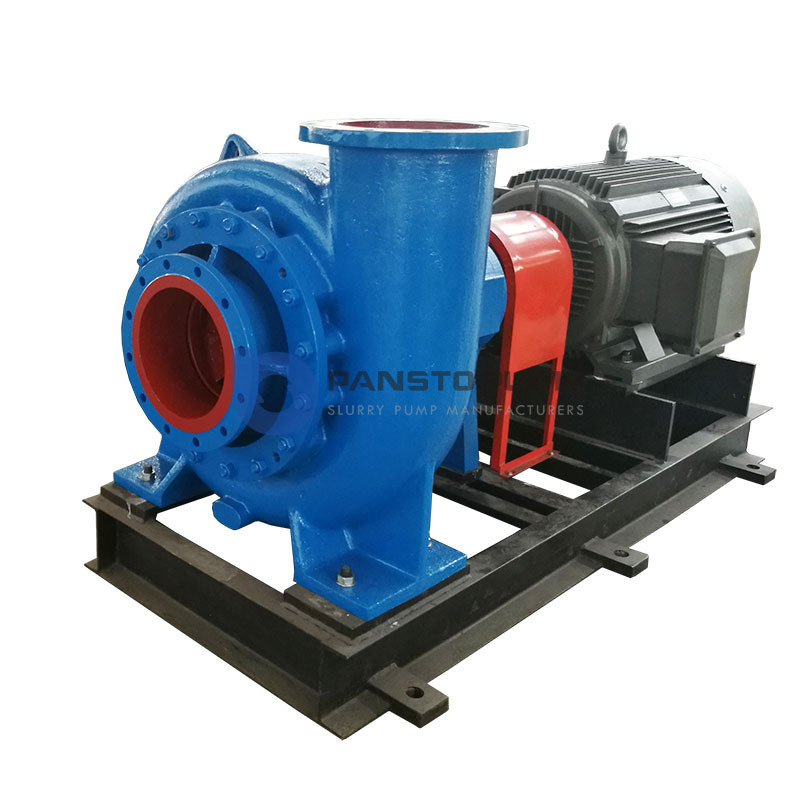

Ceramic Wet Parts Desulphurization Slurry Pump Solid Slurry Pump

Ceramic Wet Parts Desulphurization Slurry Pump Solid Slurry Pump

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1100

≥5 Pieces

US $990

≥10 Pieces

US $880

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 1 year

Brand Name:: Pansto Pump

Model Number:: Horizontal Slurry Pump

Place of Origin:: Hebei, China

Horsepower:: 20hp-1632hp

Cable Length:: Customized

Outlet Size:: 1 inch to 14 inches

Power:: 15kw-1200kw, Electric / Diesel

motor:: 15kw-1200kw

Processing medium:: Corrosive or Abrasive slurries containing solid particles

Material:: High Chrome Alloy Lined, Rubber-Lined

Flow rate:: Up to 5000 m3/h

Head:: Up to 100m

Speed:: 250-3800 r/min

Theory:: Centrifugal Slurry Pump

Frequency:: 50 /60 Hz

Medium temperature:: ≤80℃

MOQ:: 1 Set

Quick Details

Application:: Mining industry, Cyclone Feed, Regrind, Flotation, Tailing, Ball Mill Discharge, Minerals Concentrate, Bottom/Fly Ash, Lime Grinding, Mineral Sands, Coal, Oil Sands, Coarse Tailings, Ni Acid Slurry, Pump and Paper, Dredging, Wet crushers, Phosphoric Acid, Rod Mill Discharge, FGD, Fine Tailings, Coarse Sand, Heavy Media, Phosphate Matrix, Process Chemical, SAG Mill Discharge

Pressure:: High Pressure

Voltage:: 380V, 415V or as required

Warranty:: 1 year

Brand Name:: Pansto Pump

Model Number:: Horizontal Slurry Pump

Place of Origin:: Hebei, China

Horsepower:: 20hp-1632hp

Cable Length:: Customized

Outlet Size:: 1 inch to 14 inches

Power:: 15kw-1200kw, Electric / Diesel

motor:: 15kw-1200kw

Processing medium:: Corrosive or Abrasive slurries containing solid particles

Material:: High Chrome Alloy Lined, Rubber-Lined

Flow rate:: Up to 5000 m3/h

Head:: Up to 100m

Speed:: 250-3800 r/min

Theory:: Centrifugal Slurry Pump

Frequency:: 50 /60 Hz

Medium temperature:: ≤80℃

MOQ:: 1 Set

Product Paramenters

Product Description

PTL series desulphurization circulating pump is horizontal, axial suction, single stage, single suction, suspension, after pumping, single shell structure. This series of pump in hydraulic design, structural design, taking advantages of similar products at home and abroad and innovation, and flow components developed by using the special material GLH - 5, GLH - 6, with high efficiency and energy saving, corrosion resistance to abrasion, small vibration, low noise, reliable running, shaft seal, no leakage, long service life, maintenance is convenient wait for a characteristic, The comprehensive performance of the pump is leading in China. Suitable for conveying limestone or gypsum slurry in desulfurization system of thermal power generation, steel sintering, aluminum smelting and oil refining industries. The maximum chloride ion content of the slurry allowed to be transported is 20000ppm, the pH value is between 4.5 and 12, the slurry temperature is ≤ 65℃ , and the maximum weight concentration of the slurry Cw is 60%.
