Quick Details
-
EINECS No.:
-
500-033-5
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
FASTFIX
-
Model Number:
-
FX-E360
-
Type:
-
Epoxy adhesive
-
Material:
-
Epoxy resin
-
Ratio:
-
6:1
-
Volume:
-
360 ml
-
Shelf life:
-
24 months
-
Working time:
-
28 minutes @30C
-
Curing time:
-
10 hr @30C
-
Tensile Strength (kgf/cm2):
-
311
-
Compressive strength (kgf/cm2):
-
1158
-
Packing scheme:
-
Dual cartridge with nozzle
-
Finish color:
-
Red / Gray
Quick Details
-
CAS No.:
-
Mixture
-
Other Names:
-
Chemical anchor
-
MF:
-
Mixture
-
EINECS No.:
-
500-033-5
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
FASTFIX
-
Model Number:
-
FX-E360
-
Type:
-
Epoxy adhesive
-
Material:
-
Epoxy resin
-
Ratio:
-
6:1
-
Volume:
-
360 ml
-
Shelf life:
-
24 months
-
Working time:
-
28 minutes @30C
-
Curing time:
-
10 hr @30C
-
Tensile Strength (kgf/cm2):
-
311
-
Compressive strength (kgf/cm2):
-
1158
-
Packing scheme:
-
Dual cartridge with nozzle
-
Finish color:
-
Red / Gray

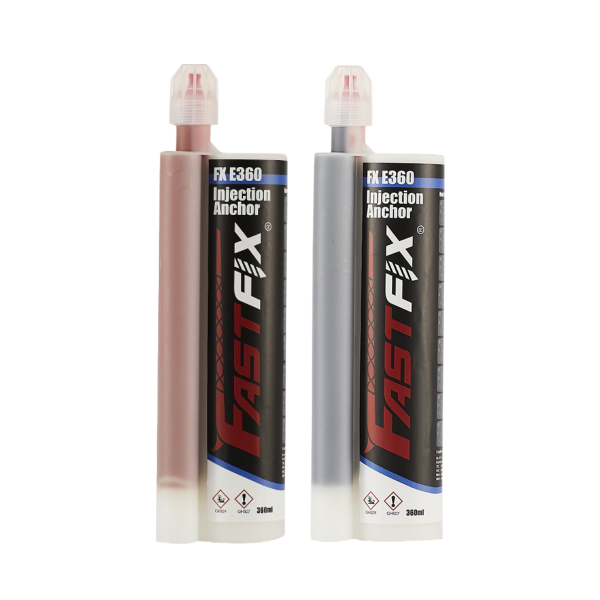

Product Name:
Injection Cartridge (Pure epoxy resin)
Product Code:
FX-E360
Product Description:
Solvent-free, epoxy based, two part high performance anchoring adhesive.
Uses:
For the fixing of non-expanding anchors in the following:
*For structural work:
1.Rebar / steel reinforcement anchoring in new and refurbishment works.
2.Threaded rods
3.Bolts and special fastening systems
* Mechanical and electrical services installation:
1.Anchoring of supports for ducting and equipment.
*Metal Work, carpentry
1.Fixing of handrails, balustrades and supports
2.Fixing of railings
3.Fixing of window and door frames
1.
Drill hole to the diameter and depth required. The diameter must be in accordance with anchor size.
2.
The drill hole must be cleaned with air blower, starting from the bottom of the hole.
The drill hole must be thoroughly cleaned with steel brush. After brush, to use air blower to clean the drill hole again.
3.
Inject the adhesive into the hole, starting from the bottom, while slowly drawing back the static mixer. In any case avoid entrapping air. For deep holes extension tubing can be used.
4.
Insert the anchor with a rotary motion into the filled drill hole. Some adhesive must come out of the hole.
5.
During the resin hardening time the anchor must not be moved or loaded.
Gel and loading time:
|
Application Temperature (°C)
|
Gel Time (min.)
|
Loading Time (hr.)
|
|
40
|
14
|
5
|
|
30
|
28
|
10
|
|
20
|
60
|
18
|
|
10
|
240
|
40
|
Test Report:
|
Test Report:
|
Test Method
|
Test Result
|
|
|
ASTM D638-10
|
311
|
|
|
(Type I Specimen, 5mm/min)
|
|
|
Flexural Strength (kgf/cm2)
|
ASTM D790-10
|
454
|
|
Flexural Modulus (kgf/cm2)
|
Procedure A
|
29648
|
|
Compressive Strength
|
ASTM D695-10
|
1158
|
|
(kgf/cm2)
|
|
|
|
Shear Strength (kgf/cm2)
|
Refer to ASTM D1002-10
|
76.2
|
|
|
Grasped loads of adhesive
|
|
Working Standard (mm)
|
|
||
|
|
Proof load of client requirements(kgf)
|
Test result
|
Hole Diameter
|
Hole Depth
|
||
|
#3 (Φ10)
|
3000
|
|
12
|
90
|
||
|
#4 (Φ13)
|
5120
|
|
16
|
115
|
||
|
#5 (Φ16)
|
6570
|
|
20
|
125
|
||
|
#6 (Φ19)
|
13132
|
|
25
|
160
|
||
|
#8 (Φ22)
|
17769
|
|
27
|
190
|
||
|
#10 (Φ25)
|
19190
|
Concrete Fracture
|
30
|
150
|
||
**For further information or MSDS/TDS request, please feel free to CONTACT US
