Quick Details
-
Model Number:
-
FYSP-G-30.5-B
-
Brand Name:
-
LD Brand LPG gas cylinders
-
Working Pressure:
-
20bar
-
Hydraulic Test Pressure:
-
30bar
-
Water Capacity:
-
30.5L
-
Outside Diameter:
-
321mm
-
Valve:
-
as client required lpg valve
-
Wall Thickness:
-
1mm
-
Weight(without valve):
-
7.5KG
-
Length:
-
680mm
-
Thread:
-
3/4-14NGT/25E/M26x1.5
-
Standard:
-
ISO11119-3 and EN12245
Quick Details
-
Material:
-
Composite Material
-
Use:
-
LPG
-
Place of Origin:
-
Anhui, China
-
Model Number:
-
FYSP-G-30.5-B
-
Brand Name:
-
LD Brand LPG gas cylinders
-
Working Pressure:
-
20bar
-
Hydraulic Test Pressure:
-
30bar
-
Water Capacity:
-
30.5L
-
Outside Diameter:
-
321mm
-
Valve:
-
as client required lpg valve
-
Wall Thickness:
-
1mm
-
Weight(without valve):
-
7.5KG
-
Length:
-
680mm
-
Thread:
-
3/4-14NGT/25E/M26x1.5
-
Standard:
-
ISO11119-3 and EN12245

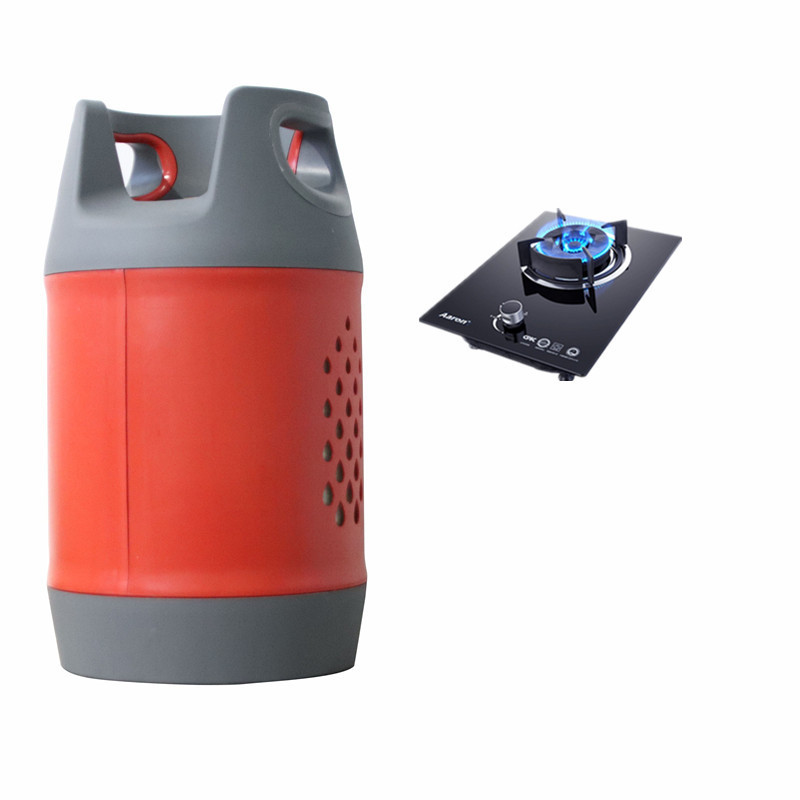

LPG Composite Cylinder
|
DESCRIPTION
|
PARAMETERS
|
|
Filling Propane Weight(LPG/KG)
|
12.5KG
|
|
Cylinder Empty Tare Weight(KG)
|
7.5KG
|
|
Water Capacity(L)
|
30.5L
|
|
Height(mm)
|
650mm
|
|
Diameter(mm)
|
307mm
|
|
Working Pressure(bar)
|
20bar
|
|
Test Pressure(bar)
|
30bar
|
|
Min Hydraulic Burst Pressure(bar)
|
72bar
|
-Appearance and retentivity
The Composite LPG cylinders are produced by high anti-corrosion material, which will not loose due to rust. The appearance color will always maintain fresh
-Visible liquid level
Due to the cylinder body is semitransparent, the users can easily supervise the LPG content inside from the visible liquid level
-Light and portable
The weight of composite LPG cylinder is only 40% of the traditional metal cylinder, and the ergonomically designed soft handle makes it portable for both adults and children
-High level safety
The cylinder liner is made of HDPE, which has high corrosion resistance to LPG, atmosphere and aqueous solution containing sulfur. It will not explose due to the corrosion
-Long life and easy inspection
The first and second periodical inspection of the composite LPG cylinder is 5 years, and the third periodical inspection is 10 years, which greatly extends the service life of the product
-Glass fiber
We choose a kind of special wrapping fiber with good invasion, high gelatinization and no balling-up
-Epoxy resin
The epoxy resin we choose has advantages of lower curing temperature, quicker curing speed, longer service life and lower price
-HDPE
High-density Polyethylene, has the advantage of wide range of sources and cheap. It can be used as liner material to revent the gas leakage, also can be used as external wear-resistant material
|
Cylinder Model and Standard
|
Norminal Working Pressure (bar)
|
Hyd.test Pressure (bar)
|
Design Wall Thickness (mm)
|
Material
|
Outer Diameter (mm)
|
Water Capacity (L)
|
Length (mm)
|
Weight (kg)
|
|
FSYP-G-V EN 12245
ISO119-3
|
20
|
30
|
1.0
|
HDPE
|
321
|
12.5
|
400
|
6.95
|
|
|
20
|
30
|
1.0
|
HDPE
|
321
|
18.2
|
500
|
7.15
|
|
|
20
|
30
|
1.0
|
HDPE
|
321
|
24.5
|
570
|
7.35
|
|
|
20
|
30
|
1.0
|
HDPE
|
321
|
26.2
|
624
|
7.40
|
|
|
20
|
30
|
1.0
|
HDPE
|
321
|
27.4
|
645
|
7.45
|
|
|
20
|
30
|
1.0
|
HDPE
|
321
|
30.5
|
680
|
7.50
|
|
|
20
|
30
|
1.0
|
HDPE
|
321
|
34.5
|
764
|
7.67
|
The company was established in 2009 and moved into the Taihu County Economic Development Zone in Anhui Province in 2014, building its own standardized factory covering an area of 46,000 square meters. For more than 10 years, we have focused on R&D and production, with a total global sales volume of 2 million units. The company has 6 cylinder spinning lines, 2 heat treatment and tempering lines, as well as machine processing, painting and winding lines, with an annual production capacity of 360,000 cylinders, and can produce seamless industrial steel cylinders, seamless steel cylinders for CNG vehicles, glass fibre ring-wound cylinders for CNG vehicles, carbon fibre wound cylinders for CNG vehicles, composite wound cylinders for CNG vehicles, seamless steel cylinders for CNG stations, fire-fighting cylinders, LPG Dehejiang cylinders, and LPG cylinders. Fire-fighting cylinders, LPG cylinders, breathing apparatus and other products.
*Q1: Are you manufacturer or trade company?
*A1: We are a Chinese manufacturer, and have been specializing in manufacturing gas cylinders for more than 10 years. Our company brand is “LD”.
lpg gas cylinder
*Q2: What is your daily production capacity?
lpg gas cylinder
*A2: Our production capacity everyday is 800~1000 units.
lpg gas cylinder
*Q3: What is your delivery time?
lpg gas cylinder
*A3: Usually our delivery time is 25-45 days against the advance payment. Mainly it depends on when we get the production materials.
lpg gas cylinder
*Q4: What certificates do you have?
lpg gas cylinder
*A4: We have ISO9001 and IATF16949 for management system, and ISO9809, ISO11439 and ECE R110 for production approval.
lpg gas cylinder
*Q5: Do you accept OEM production?
lpg gas cylinder
*A5: Of course, we have served several famous motor OEMs, such as TOYOTA(Thailand)-Thailand, IKCO-Iran, GAZ-Russia, DF-China, and FOTON-China, etc. We would like to serve more customers with our superior quality.
lpg gas cylinder
*Q6: Can you provide samples to us?
lpg gas cylinder
*A6: Yes, we can provide 1-2 samples for your testing freely, but you need to undertake the logistic cost firstly.
lpg gas cylinder
*Q7: Can you customize the products?
lpg gas cylinder
*A7: Yes, we can provide you with various customized products. For example, your company brand/logo, different accessories and your favorite colors.
lpg gas cylinder
