Taiwan Manufacture of Aluminum foil Electrolytic capacitor T-Network capacitor for Professional amplifier application
Guided Current Audio Capacitor

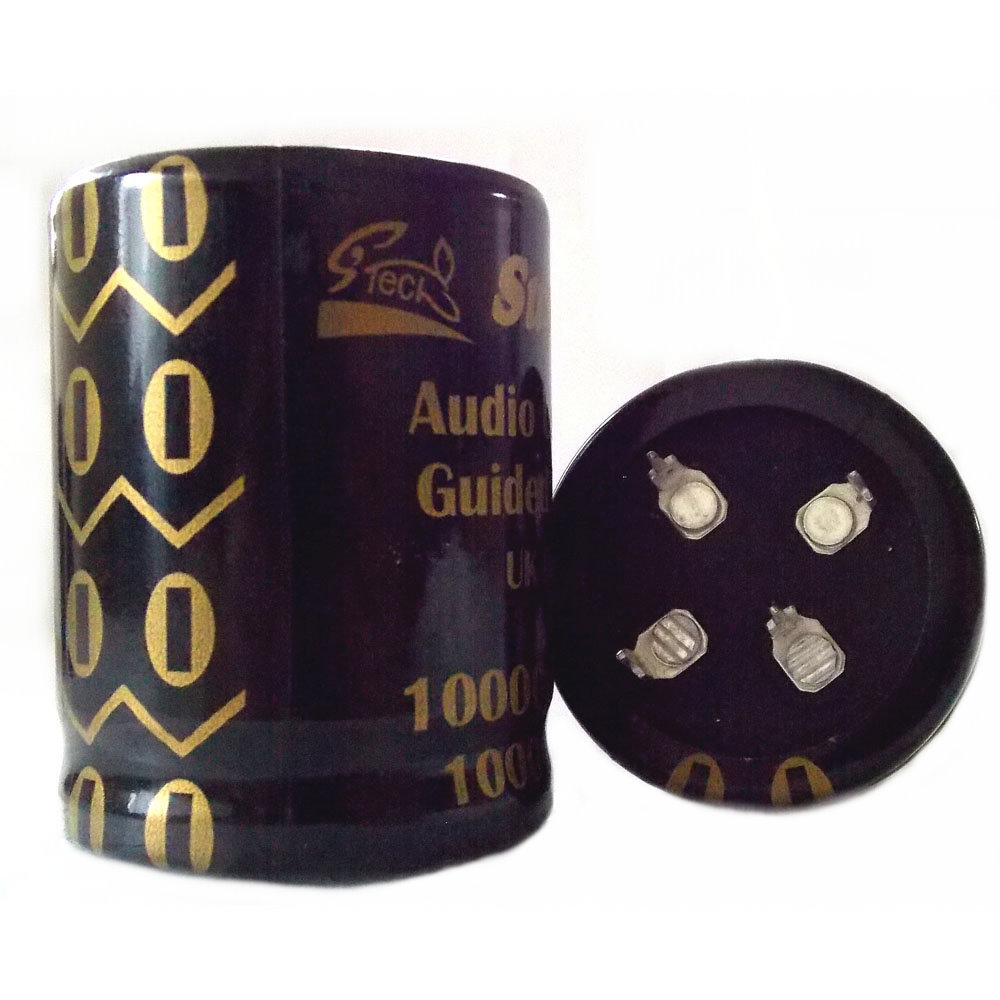

Audio use 4TTN Capacitor is a unique 4 terminal capacitor designed specifically for Audio. This is a patented design which is particularly effective in all applications that need exceptional filtering. We also offer OEM/ODM services for customer to have their need of capacitance and voltage, furthermore, we offer OEM sleeve to have your own brand and size.
| Item | D(mm) | L(mm) |
| 4700/63V | 40 | 42 |
| 4700/63V | 40 | 52 |
| 10000/50V | 40 | 52 |
| 10000/63V | 40 | 52 |
| 10000/63V | 40 | 58 |
| Electrical Characteristics | ||||||
| Items Characteristics | 4700/63V | 4700/63V | 10000/50V | 10000/63V | ||
| Surge Voltage | 79V | 79V | 63V | 79V | ||
| Operating Temperature | –40°C ~ +85°C | –40°C ~ +85°C | ||||
| Leakage Current after 5 minutes.(3√CV) | ≤ 1632μA | ≤ 1632μA | ≤ 2121μA | ≤ 2381μA | ||
| Max. ESR at 120Hz 20°C | 46 mΩ | 32 mΩ | 36 mΩ | 29 mΩ | ||
| Max. Impedance at 10KHz 20°C | 39 mΩ | 20 mΩ | 29 mΩ | 24 mΩ | ||
| Max. Ripple Current (rms) at 120Hz and 85 Degree C | 6.5 Amps | 8.06 Amps | 6.78 Amps | 8.43 Amps | ||
| Load Life | After 10,000 hours application of working voltage at 85°C, the capacitor shall meet the following: | |||||
| 1) Capacitance change: ≤ ±10% | ||||||
| 2) ESR ≤ 200% of initial ESR value | ||||||
| 3) Leakage Current: ≤ initial specified value | ||||||
Packaging and Shipping
D=22, 112 PCS/INNER BOX, 1120PCS/CARTON, 1.8'
D=30, 50 PCS/INNER BOX, 500PCS/CARTON, 1.8'
D=35, 32 PCS/INNER BOX, 192PCS/CARTON, 1.56'
D=35(L>=60) 32 PCS/INNER BOX, 192PCS/CARTON, 1.8'
D=40 30 PCS/INNER BOX, 180PCS/CARTO, 1.56'
