Quick Details
-
Filling Accuracy:
-
±1ml
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SOKOS
-
Dimension(L*W*H):
-
2400*1850*2400mm
-
Weight:
-
3500 KG
-
Product name:
-

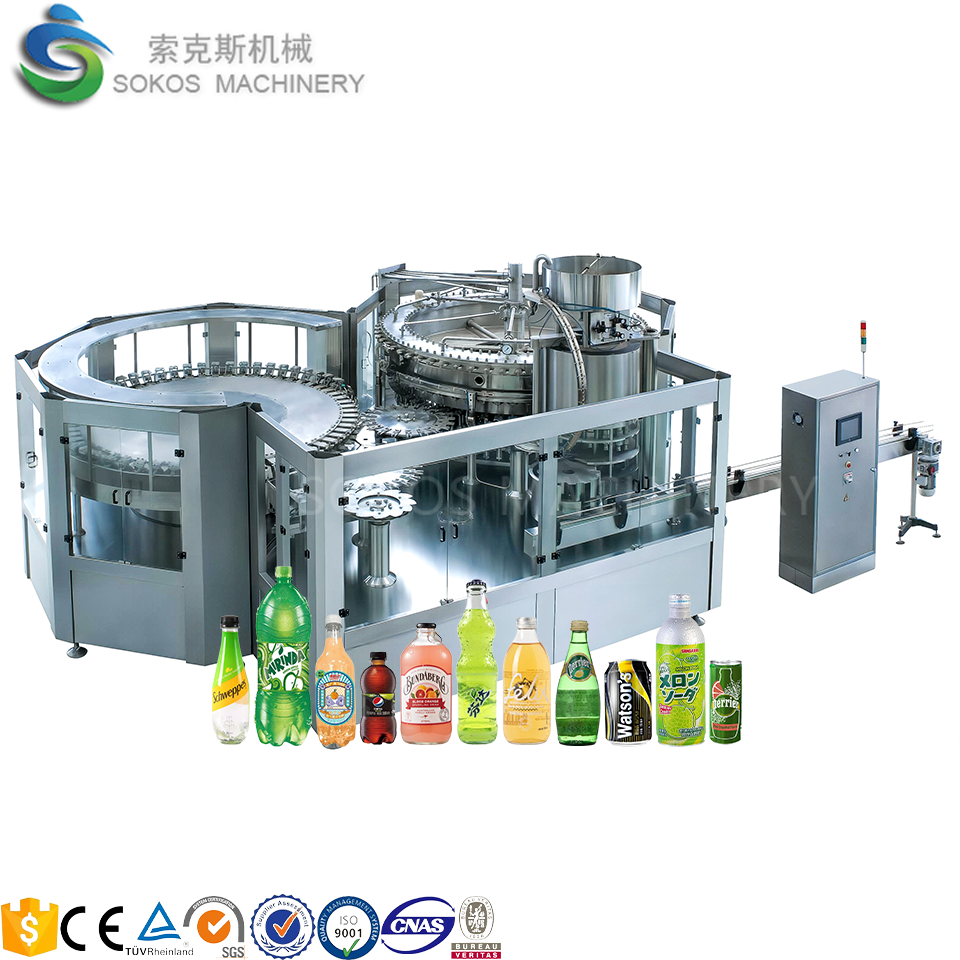

Automatic Water Filling Machine Production Line
-
Function:
-
Bottle Washing Filling Capping
-
Processing Types:
-
liner
-
Usage:
-
Water Filling Machine
-
Material:
-
SUS304/316
-
Filling material:
-
Flowing Liquid
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, Other, 6000BPH, 2000BPH, 9000BPH, 5000BPH, 3000BPH, 13000BPH, 15000BPH
-
Packaging Material:
-
Plastic, Glass
-
Filling Material:
-
Beer, Milk, Water, Juice
-
Filling Accuracy:
-
±1ml
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SOKOS
-
Dimension(L*W*H):
-
2400*1850*2400mm
-
Weight:
-
3500 KG
-
Product name:
-
Automatic Water Filling Machine Production Line
-
Function:
-
Bottle Washing Filling Capping
-
Processing Types:
-
liner
-
Usage:
-
Water Filling Machine
-
Material:
-
SUS304/316
-
Filling material:
-
Flowing Liquid
Products Description
*We supply complete solution for the Carbonated beverage filling plant ,including Water treatment system / Carbonated beverage mixing system / Washing filling capping machine / Code printer / Pasteurizer tunnel / Automatic labeling machine / Automatic packing machine / Automatic Palletizer system.
PET Plastic Bottle
Glass Bottle
Pop Can & Aluminum Bottle
|
Technical parameter : carbonated beverage production line
|
|
|
|
|
|
|
||||||
|
Model
|
DCGF14-12-5
|
DCGF16-16-6
|
DCGF18-18-6
|
DCGF24-24-8
|
DCGF32-32-10
|
DCGF40-40-12
|
||||||
|
Capacity(for 500ml)
|
2000-3000
|
3000-4000
|
4000-5000
|
8000-9000
|
11000-12000
|
13000-15000
|
||||||
|
Suitable bottle shapes
|
circular or square
|
|
|
|
|
|
||||||
|
Bottle diameter(mm)
|
Dia50-Dia115mm
|
|
|
|
|
|
||||||
|
Bottle height (mm)
|
160-320mm
|
|
|
|
|
|
||||||
|
Compressor air
|
0.3-0.7Mpa
|
|
|
|
|
|
||||||
|
Washing meidium
|
Aseptic water
|
|
|
|
|
|
||||||
|
Rinsing pressure
|
>0.06Mpa <0.2Mpa
|
|
|
|
|
|
||||||
|
Application
|
carbonated beverage production line
|
|
|
|
|
|
||||||
|
Total power (KW)
|
4.4kw
|
4.8kw
|
5.2kw
|
6.2kw
|
7.5kw
|
8.2kw
|
||||||
|
Overall dimensions
|
2.5*1.9m
|
2.7*1.9m
|
2.8*2.15m
|
3.1*2.5m
|
3.8*2.8m
|
4.5*3.3m
|
||||||
|
Height
|
2.3m
|
2.5m
|
2.5m
|
2.5m
|
2.5m
|
2.6m
|
||||||
|
Weight(kg)
|
3000kg
|
4000kg
|
4500kg
|
6000kg
|
8500kg
|
10000kg
|
||||||
Details Images
water treatment
According to customer's water source analysis report and the final water standard requirements ,we will suggest customer to choose the suitable water treatment plants.
According to customer's water source analysis report and the final water standard requirements ,we will suggest customer to choose the suitable water treatment plants.
Beverage Mixing System
Carbonated beverage mixing system structure reasonable, mix precision is high, CO2 mixes fully, has two times of cooling, two carbonation merits. It main suitable for kinds of carbonated drink's mix processing, also use in the paste drink, the fermentation drink and so on other soft drinks' mix processing.
Main Features
---Friendly HMI with easy switch for multi-languages.
---The filling valve is designed with the tidy and safe valve body, the material quality can be fully guaranteed.
---Advanced electronic isobaric filling valves to be used for a variety of materials,
higher filling temperatures, higher filling accuracy, and lower carbon dioxide consumption can be achieved.
higher filling temperatures, higher filling accuracy, and lower carbon dioxide consumption can be achieved.
---The unique patented
technology for bottle rinsing, no bottle without flushing at fixed stations, saving water for customers ---Similar capping technology from Krones, Germany, each torque balance, high efficiency
technology for bottle rinsing, no bottle without flushing at fixed stations, saving water for customers ---Similar capping technology from Krones, Germany, each torque balance, high efficiency
Labeling Machine
According to customer request and market demand ,we provide the better solution for the final product package design,We have various kinds of options .like PVC sleeve label ,BOPP hot glue label,Adhesive stick label,Cold glue paper label .
Bottle Packing System
We supply the different bottle package deisgn , Film package ,Carton box wrapper ,Film with tray package and so on .
Bottle Blowing System
We supply the Complete Bottle Blowing System ,start from PET preform injection molding machine ,and Bottle blowing machine,including air compressor system and water cooling system .
Turnkey Project
More Products
Juice & Drinks
Like fruit juice ,NFC juice ,
energy drinks ,juice with pulp ...
Capacity:
500~30000
BPH
Water (100ml-10L)
Like still water / pure water
/ mineral water...
Capacity:
1000~30000
BPH
Water (3-5gal)
Like still water / pure water
/ mineral water...
Capacity:
60~2000BPH
