Quick Details
-
Model Number:
-
Pump Mechanical Seal
-
Product name:
-
Pump Mechanical Seal
-
Type:
-
103 104 105 GLF 560 PS1000 301-12 M3N M7N H7N 560A 560D
-
Stationary Face Material:
-
Ca/TC/Sic/Cer
-
Rotary Face Material:
-
Ca/TC/Sic/Cer
-
Secondary Seal Material:
-
FKM/NBR/EPDM
-
Metal Component:
-
SS304/SS316
-
Temperature:
-
40~120 (NBR)/-20~250 (FKM)
-
Standard:
-
DIN24960
-
Speed:
-
10m/s
Quick Details
-
Size:
-
Pump Mechanical Seal, 6/8/10/12/14/16/18/20/22/24...
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
NUOANKE
-
Model Number:
-
Pump Mechanical Seal
-
Product name:
-
Pump Mechanical Seal
-
Type:
-
103 104 105 GLF 560 PS1000 301-12 M3N M7N H7N 560A 560D
-
Stationary Face Material:
-
Ca/TC/Sic/Cer
-
Rotary Face Material:
-
Ca/TC/Sic/Cer
-
Secondary Seal Material:
-
FKM/NBR/EPDM
-
Metal Component:
-
SS304/SS316
-
Temperature:
-
40~120 (NBR)/-20~250 (FKM)
-
Standard:
-
DIN24960
-
Speed:
-
10m/s

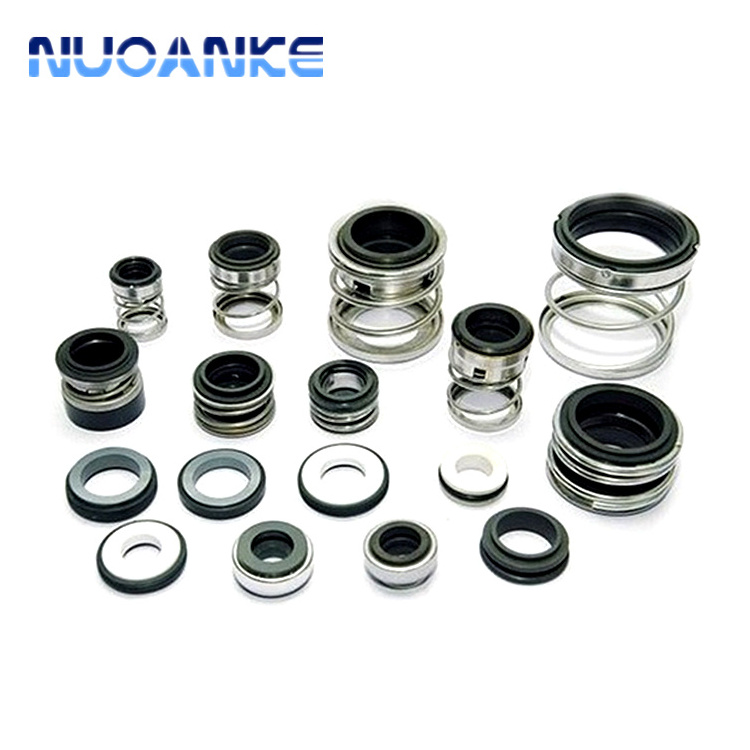

Pump Mechanical Seal 103 105 109 155 MG1 MG13 M3N M7N H7N 560A 560D BIA GLF FBD Water Pump Mechanical Seal Pump
| Product Information | ||
| Product Name | Mechanical Seal | |
| Type | 103 105 109 155 MG1 MG13 M3N M7N H7N 560A 560D BIA GLF FBD, ect. | |
| Operating limits | Standard | DIN24960 |
| Pressure | ≤1.0MPa | |
| Temperature | -20-180℃ | |
| Speed | ≤15m/s | |
| Medium | Water, Sewage, Sea water, Oil, Acid, Organic solvent, Crystalline acid, Amorphous acid, Alkali, Salt, Corrosive liquid, Non-corrosive liquid, etc. | |
| Material |
Stationary Face Material |
Ca (Carbon graphite) |
| Sic (Silicon carbide) | ||
| Cer (Ceramic) | ||
| TC (T ungsten carbide) | ||
|
Rotary Face Material |
Ca (Carbon graphite) | |
| Sic (Silicon carbide) | ||
| Cer (Ceramic) | ||
| TC (T ungsten carbide) | ||
|
Secondary Seal Material |
NBR | |
| FKM(VT) | ||
| EPDM | ||
| PTFE | ||
| Metal Component | ss304 | |
| ss316 | ||
| Specification |
6/8/10/12/14/16/18/20/22/25/28/30/35/38/40 /45/50/55/60/65/70/75/80//85/90/95/100/120 |
|
