Quick Details
-
Brand Name:
-
FUZRR
-
Model Number:
-
ES3050
-
Accuracy Class:
-
±1%rdg±5dgt
-
Operating Temperature:
-
-10℃~40℃
-
Dimensions:
-
450*350*180mm
-
DC resistance:
-
0.0001kΩ~30.00kΩ
-
Capacity factor:
-
Measuring capacity factor≤15W
-
Test method:
-
Four-wire test
-
Power supply:
-
DC 6V 4.5Ah Large-capacity battery
-
Data storage:
-
500 groups
-
Overload protection:
-
C1-C2 P1-P2 AC 280V/3 seconds between ports
-
Power consumption:
-
Standby: 30mA Max(backlight off)
-
Pressure resistance:
-
0.1V
-
AC voltage range:
-
AC 3700V/rms( between circuit and housing)
-
Suitable for Safety Regulations:
-
IEC61010-1,IEC61010-4-3
Quick Details
-
Measuring Range:
-
0.1mΩ~30.00kΩ
-
Testing Voltage:
-
AC voltage: 0V~1000V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FUZRR
-
Model Number:
-
ES3050
-
Accuracy Class:
-
±1%rdg±5dgt
-
Operating Temperature:
-
-10℃~40℃
-
Dimensions:
-
450*350*180mm
-
DC resistance:
-
0.0001kΩ~30.00kΩ
-
Capacity factor:
-
Measuring capacity factor≤15W
-
Test method:
-
Four-wire test
-
Power supply:
-
DC 6V 4.5Ah Large-capacity battery
-
Data storage:
-
500 groups
-
Overload protection:
-
C1-C2 P1-P2 AC 280V/3 seconds between ports
-
Power consumption:
-
Standby: 30mA Max(backlight off)
-
Pressure resistance:
-
0.1V
-
AC voltage range:
-
AC 3700V/rms( between circuit and housing)
-
Suitable for Safety Regulations:
-
IEC61010-1,IEC61010-4-3

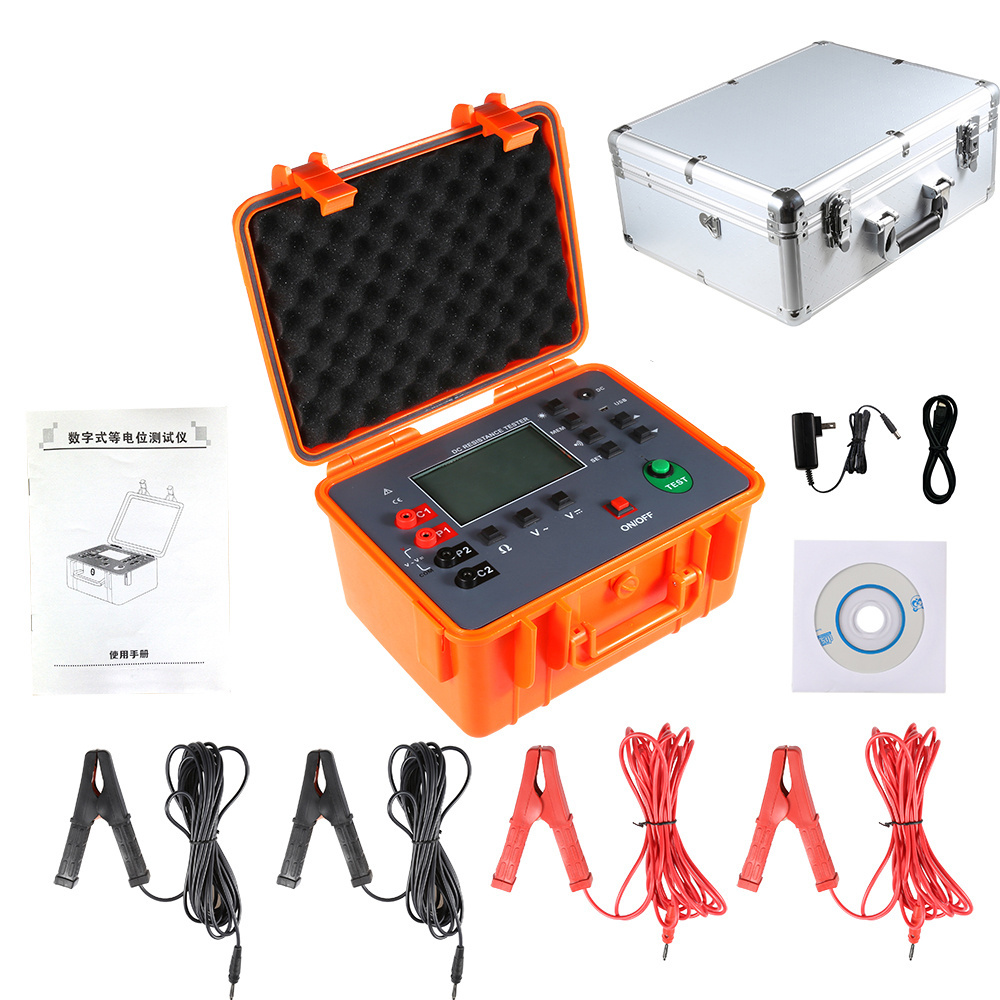

product description
|
Function
|
Equipotential bonding resistance test between metal components, low-value resistance test, resistance test of connecting
conductors between ground and ground electrodes, contact resistance test, etc. |
|
DC resistance range
|
0.0001Ω～30.00KΩ Accuracy±1%rdg±5dgt
|
|
Resistance resolution
|
0.0001Ω
|
|
Test method
|
Four-wire test
|
|
Test current
|
≥1A
|
|
Open circuit voltage
|
≤7V
|
|
Capacity factor
|
Measuring capacity factor≤15W
|
|
DC voltage range
|
0.0V～1000V DC Accuracy±1.5%rdg±5dgt
|
|
DC voltage resolution
|
0.1V
|
|
AC voltage range
|
0.0V～750V AC Accuracy±1.5%rdg±3dgt
|
|
AC voltage resolution
|
0.1V
|
|
Power
|
DC 6V 4.5Ah Large-capacity battery Continuous standby for more than 100 hours
|
|
Backlight
|
Controllable gray screen backlight, suitable for use in dim places
|
|
Display mode
|
4-bit large LCD display, gray screen backlight
|
|
Measurement instructions
|
LED flashing indicator during measurement, LCD countdown display
|
|
LCD尺寸
|
108mm×65mm
|
|
Instrument size
|
L/W/H：277.2mm×227.5mm×153mm
|
|
Test line length
|
Red 5m，black 5m each 2PCS
|
|
Measure time
|
Resistance test：about 3second/time；Voltage test：about 2times/sec
|
|
USB interface
|
With USB interface, software monitoring, storage data can be uploaded to the computer, save and print
|
|
Communication Line
|
USB Communication Line 1PC
|
|
Data storage
|
500 groups，"MEM" stores indicates, the "FULL" symbol indicates that the storage is full
|
|
Data review
|
Data review function: "MR" symbol display
|
|
Overflow display
|
Over-range overflow function: "OL" symbol display
|
|
Alarm function
|
Alarm when the measured value exceeds the alarm setting value
|
|
Battery voltage
|
Real-time display of battery power, reminding timely charging when battery voltage is low
|
|
Automatic shut-down
|
"APO" indicates automatic shutdown after 15 minutes
|
|
Power consumption
|
Standby: 30mA Max(backlight off)
|
|
|
Turn on backlight: 43mA Max
|
|
|
Measure：2A Max(backlight off)
|
|
Weight
|
Instrument： 2397g(including battery)
|
|
|
Test line：850g(including simple test line)
|
|
|
Instrument box：1200g
|
|
Working temperature and humidity
|
-10℃～40℃；below 80%rh
|
|
Storage temperature and humidity
|
-20℃～60℃；below 70%rh
|
|
Overload protection
|
C1-C2 P1-P2 AC 280V/3 seconds between ports
|
|
Insulation resistance
|
Above 10MΩ(500V between circuit and housing)
|
|
Pressure resistance
|
AC 3700V/rms( between circuit and housing)
|
|
Electromagnetic properties
|
IEC61010-4-3，Wireless frequency electromagnetic field≤1V/m
|
|
Suitable for Safety Regulations
|
IEC61010-1, CAT III 600V, pollution degree 2, JJG724-1991 "DC digital ohmmeter verification procedure", JJG166-1993 "DC resistance
verification procedure", "DL/T967-2005 loop resistance tester and DC resistance fast Tester verification procedure |
