Quick Details
-
Mounting Type:
-
Lead
-
Description:
-

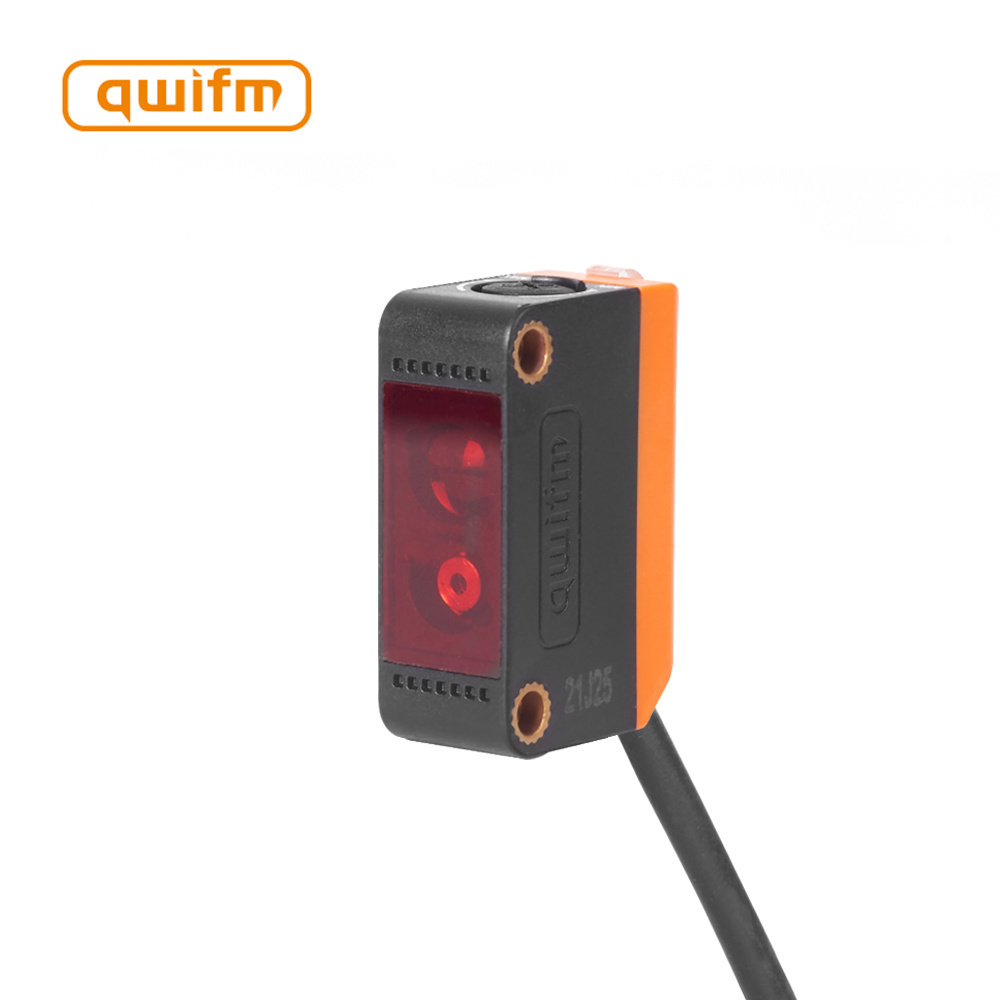

High quality photoelectricity sensor, Sensor
-
Model Number:
-
EN33-D1T100NA
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
qwifm
-
Theory:
-
Optical
-
Output:
-
Digital, NPN, PNP, NO
-
Detection distance:
-
1m
-
Protection level:
-
IP67
-
Voltage:
-
10-30VDC
-
Certificate:
-
CE CCC
-
Consumption Current:
-
<30mA
-
Material:
-
ABS
-
Ambient Temperature:
-
-25~+55℃
-
Application:
-
Industrial Automation
Quick Details
-
Usage:
-
Position Sensor
-
Series:
-
EN33
-
Features:
-
Anti optical interference long distance
-
Mounting Type:
-
Lead
-
Description:
-
High quality photoelectricity sensor, Sensor
-
Model Number:
-
EN33-D1T100NA
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
qwifm
-
Theory:
-
Optical
-
Output:
-
Digital, NPN, PNP, NO
-
Detection distance:
-
1m
-
Protection level:
-
IP67
-
Voltage:
-
10-30VDC
-
Certificate:
-
CE CCC
-
Consumption Current:
-
<30mA
-
Material:
-
ABS
-
Ambient Temperature:
-
-25~+55℃
-
Application:
-
Industrial Automation
QWIFM, as a manufacturer of industrial automation products with 22+ years' experience.
Diffuse type Technical sheet
|
Sensing distance
|
|
50 cm
|
1m
|
1.5m
|
|||
|
Product code
|
PNP, NO
|
EN33-D1T50PA
|
EN33-D1T100PA
|
EN33-D1T150PA
|
|||
|
|
PNP, NC
|
EN33-D1T50PB
|
EN33-D1T100PB
|
EN33-D1T150PB
|
|||
|
|
NPN, NO
|
EN33-D1T50NA
|
EN33-D1T100NA
|
EN33-D1T150NA
|
|||
|
|
NPN, NC
|
EN33-D1T50NB
|
EN33-D1T100NB
|
EN33-D1T150NB
|
|||
|
Response time
|
Move and reset less than 1ms
|
|
|
|
|||
|
Power supply
|
12-24VDC (10-30V)
|
|
|
|
|||
|
Light
|
Red visible light 660nm / Infrared 880nm
|
|
|
|
|||
|
Ambient temp.
|
-25 ~ +55 ℃
|
|
|
|
|||
|
Product standards
|
GB/T14048.10-2016
|
|
|
|
|||
|
Voltage resistance
|
AC 1000V, 50/60Hz; 1 minute
|
|
|
|
|||
|
Protection grade
|
IP 64
|
|
|
|
|||
|
Material
|
ABS Plastic
|
|
|
|
|||
|
Ambient illumination
|
Lamp: Less than 3,000 Lus; Sunlight: Less than 11,000 Lus
|
|
|
|
|||
-With Short-circuit protection, Anti-glare interference, Anti-magnetic interference
-With high quality mirror reflector plate, it has better sensitivity and accuracy than ordinary reflector
Long sensing range: Diffuse: 50cm, 1m, 1.5m; Retro-reflective: 2m, 3m, 4m; Through-beam: 5m, 10m
Using imported chips and digital IC circuit technology, the product response speed is less than 1ms.
We have a strict quality control system and have won high praise from different customers.
-Fast response, good communication, excellent quality, fast delivery...
-Fast response, good communication, excellent quality, fast delivery...
Our products are exported to Europe, America, Africa, Middle East, Southeast Asia and other countries and regions.
We hope to establish a good cooperative relationship and sincerely recruit agents to achieve a win-win situation.
We hope to establish a good cooperative relationship and sincerely recruit agents to achieve a win-win situation.
1、Are you trading company or manufacturer?
We are manufacturer，specialize in producing proximity sensor, photoelectric sensor,switching power supply, SSR, and rotary encoder for 22 years.
2、What's the minimum order quantity?
1 piece, and we can offer free sample for testing.
3、What's your price?
We have economic and high-end products, can meet different customers' requirements.Meanwhile, we can offer much better price in large quantity.
4、When will you ship my order?
1 day shipping guarantee for stock item and 2-3 weeks for non-stock items.
5、What's your shipping terms?
We can provide courier(DHL, FEDEX,UPS,TNT, etc...)service, air freight, sea freight(-FOB,C&F, CIF,DDP,DDU etc...) service.
6、How can you guarantee the product quality?
We ensure all products 100% tested before departure.Our products have passed CE,ISO9001:2000, ccC, and CB certification.
7、Do youaccept OEM?
Yes.We can special customized waterproof lP68/IP69 sensor, and offer cable length per to customers" request.
8、How can I make an order?
Send inquiry→Tell us your requirements→Our sales will contact you within 2 hours.
2、What's the minimum order quantity?
1 piece, and we can offer free sample for testing.
3、What's your price?
We have economic and high-end products, can meet different customers' requirements.Meanwhile, we can offer much better price in large quantity.
4、When will you ship my order?
1 day shipping guarantee for stock item and 2-3 weeks for non-stock items.
5、What's your shipping terms?
We can provide courier(DHL, FEDEX,UPS,TNT, etc...)service, air freight, sea freight(-FOB,C&F, CIF,DDP,DDU etc...) service.
6、How can you guarantee the product quality?
We ensure all products 100% tested before departure.Our products have passed CE,ISO9001:2000, ccC, and CB certification.
7、Do youaccept OEM?
Yes.We can special customized waterproof lP68/IP69 sensor, and offer cable length per to customers" request.
8、How can I make an order?
Send inquiry→Tell us your requirements→Our sales will contact you within 2 hours.
