Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Softel
-
Model Number:
-
F Connector, RG58,RG59,RG6 F Connector
-
Item Name:
-
RG6 Connector
-
RG50 RF Connector Type:
-
F Compression
-
Connector Gender:
-
Female/Male
-
Waterproof:
-
Seal Ring
-
RG6 Compression F Connector Size:
-
RG6,RG59,RG58,RG56 Cable
-
Materia:
-
Brass,Aluminum
-
MOQ:
-
100
-
Market:
-
America\Europe\Australia\Asia\Africa\Russia
Quick Details
-
Type:
-
F
-
Application:
-
RF
-
Gender:
-
Male
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Softel
-
Model Number:
-
F Connector, RG58,RG59,RG6 F Connector
-
Item Name:
-
RG6 Connector
-
RG50 RF Connector Type:
-
F Compression
-
Connector Gender:
-
Female/Male
-
Waterproof:
-
Seal Ring
-
RG6 Compression F Connector Size:
-
RG6,RG59,RG58,RG56 Cable
-
Materia:
-
Brass,Aluminum
-
MOQ:
-
100
-
Market:
-
America\Europe\Australia\Asia\Africa\Russia

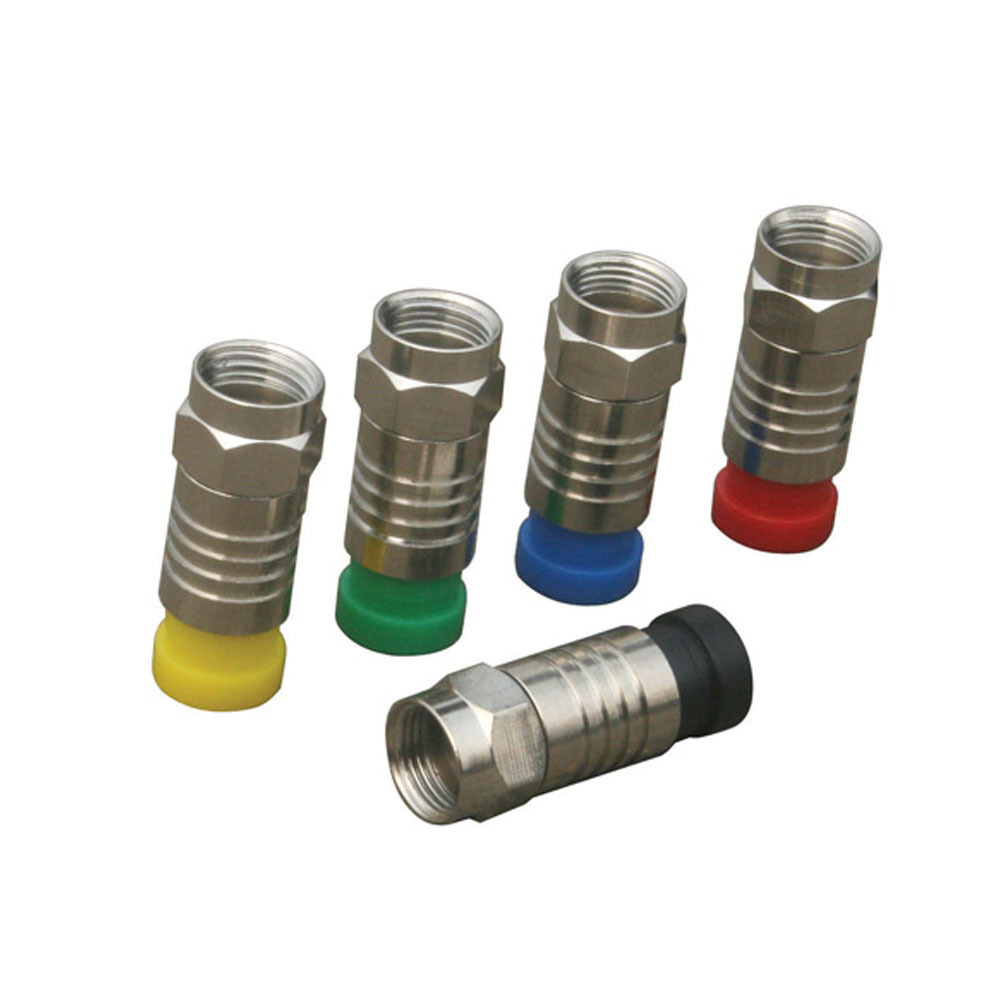

CATV Antenna Cable Connector | Cable TV Connector | Male and F-Male RF Connector
Main Application
-
1.Manfactured of high quality brass with nickel plating of superior protection against v-corrosion
-
2.Designed to be watertight for outdoor applications
-
3.Offer excellent RFI shielding properties
-
4.easy-grip free-spinning nut for fast installation and installer comfort
-
5.Universal for standand. tri-shield or quad-shield RG6 coaxial cable Cable TV Connector
Characteristic
1. Hardline cable to port entry connectors provide solid interface while preserving impedance characteristics
2. Wide bandwidth for use in broadband systems
3. Center pin "Funnel Guide" reduces installation time and connector mating guesswork
4. Standard pin length alcommodates all amplifer and multitap mating requirements
5. Notched center conductor cutting guide assures accurate cable center conductor length
6. High return loss for excellent digital signal performance
7. Solid construction and intergral sleeve provides optimum RG shielding
8. High retention center conductor seizure mechanism
9. Superior power capability provides a minium of 20 Amps current capacity on all connectors and adapters
10. No-twist center conductor seizing mechanism eliminates radial stress ,ensuring consistent application without cable damage
11. O-ring sealed ,watertight. Cable TV Connector
Parameters
|
Connector type |
RG11 Pin Connector |
Vibration |
100m/s2 (10~500Hz) |
|
Frequency Range |
DC~1GHz |
Durability(mating) |
≥500(cycles) |
|
Impedance |
75Ω |
Temp.range |
-25~+60°C |
|
Insertion Loss |
< 0.3dB |
Material |
Shell : Aluminium |
|
Power Capacity |
> 20 A |
Inner conductor: Brass, silver plating |
|
|
Conductor resistance |
Internal ≤ 10 mΩ |
||
|
External ≤ 5 mΩ |
Insulator: Plastic |
||
|
Insulating resistance |
≥ 1000 MΩ @DC500V |
O Ring: Silicon Rubber |
|
|
Withstanding voltage |
170V max |
Applicable standard |
IEC 60169-24 |
