Quick Details
-
Brand Name:
-
Kexlimice
-
Theory:
-
Optical sensor
-
Output:
-
NPN/PNP
-
Description:
-
light curtain sensor
-
sensing range:
-
0-3m
-
Working voltage:
-
24VDC
-
protection height:
-
50mm --1240mm
-
beam:
-
6-32
-
beam distence:
-
10mm,14mm,20mm,25mm,30mm,40mm
-
type:
-
optical safety light curtain sensor
-
output:
-
NPN NC
-
application:
-
stamping machine cutting machine
-
theory:
-
optical safety light curtain sensor
Quick Details
-
Use:
-
Finger, arm, body protection
-
Model Number:
-
ESMQC
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Kexlimice
-
Theory:
-
Optical sensor
-
Output:
-
NPN/PNP
-
Description:
-
light curtain sensor
-
sensing range:
-
0-3m
-
Working voltage:
-
24VDC
-
protection height:
-
50mm --1240mm
-
beam:
-
6-32
-
beam distence:
-
10mm,14mm,20mm,25mm,30mm,40mm
-
type:
-
optical safety light curtain sensor
-
output:
-
NPN NC
-
application:
-
stamping machine cutting machine
-
theory:
-
optical safety light curtain sensor
|
|
|
|
Optical safety light curtain sensor,safety light barrier sensor 24VDC NPN NC applying to stamping machine cutting machine
The light curtain is separated from the controller. The QC type light curtain is composed of light emitter and receiver, which can detect any opaque objects that enter the light curtain area beyond the detection precision.
Suitable for mechanical presses, hydraulic presses, hydraulic presses, shears, bending machines and other dangerous situations.

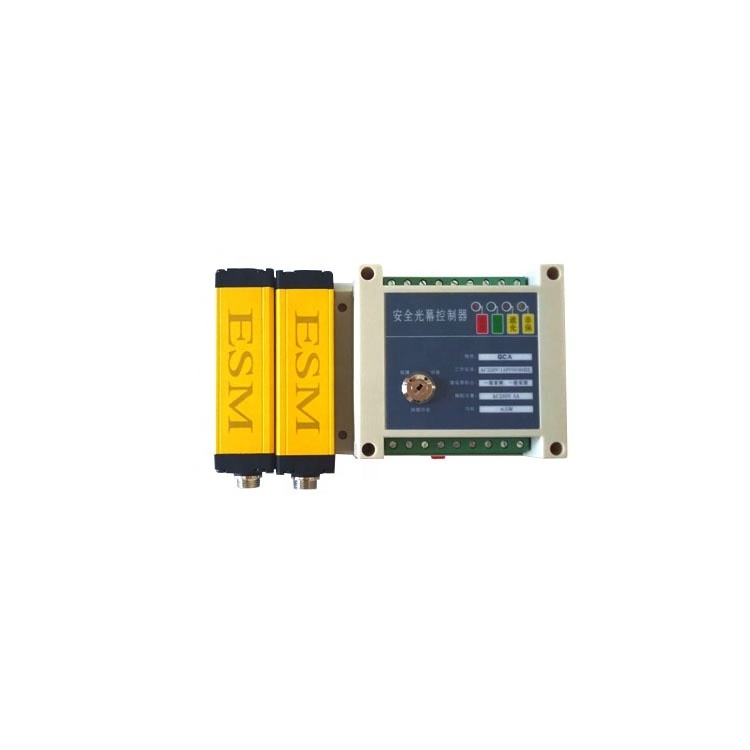

Can be used with QCA, QCA2 controller or directly connected PLC and relay, with the machine control system, the realization of dangerous situations to control the function of automatic shutdown
Feature
Self-test perfect: When the safety light curtain protector failure, to ensure that the electrical control does not send the wrong signal
Anti-interference ability: the system of electromagnetic signals, stroboscopic lights, welding arc and the surrounding light source has a good anti-jamming capability
Using surface mount technology, superior shock performance
In line with the International Electrotechnical Society IEC61496-1 / 2 standard 4-level security
The corresponding time is short (≤ 20ms), safe and reliable high
Technical data
|
Power supply voltage |
DC12/24V AC110-220V(relay output) |
|
Current consumption |
≤200mA |
|
Output state |
NPN/PNP,current 500mA,below 1.5V,Polarity, short circuit, overload protection |
|
indicator |
Projector: Power Indicator (Red) Receiver: Output indicator light (green) Shading (red) |
|
light source |
Modulation infrared LED |
|
Connection method |
Circular air socket, with a dedicated connection cable, emitter 4 core, receiver 5 core |
|
Shell material |
Aluminum alloy, end cap: ABS reinforced nylon |
|
Resistant to ambient light |
Incandescent light: by light surface illumination 3000Lx; sunlight: by the smooth surface illumination 10000Lx |
|
Ambient temperature |
Working:-10~+40℃,storage:-25~+55℃ |
|
environment humidity |
Working:35~85%RH,storage:35~95%RH |
|
Light curtain form |
On the radio |
|
Optical axis spacing |
10mm 14mm 20mm 25mm 30mm 40mm |
|
Detection accuracy |
18mm 22mm 28mm 33mm 38mm 48mm |
|
Number of beams |
6/8...32 6/8...32 4/6...32 6/8...32 4/6...32 4/6...32 |
|
Protection height |
Optical axis spacing * (number of beams -1) |
|
Detection distance |
0.03~3m 0.03~6m |
|
Response time |
≤15ms |
|
Anti-optical interference |
10000Lux(Incident angle≥5°) |
|
Shape size |
30*30*Jmm(J is Length of light emitter / receiver) |
|
Protection height |
IP65 |
|
Controller |
QCA,QCA2 |
