The Marshall Stability Machine is used to determine the load and flow values of bituminous mixtures.
The Marshall is composed of a robust and compact two-column frame with an adjustable upper cross beam driven by an electro-mechanical ram with a maximum capacity of 50 KN and a data acquisition and processing system.
The Marshall Stability Machine can be hand operated by a lateral hand wheel for calibration purposes. The mechanical jack raises the lower cross beam at a constant speed of 50.8 mm/min.
The limit switches are provided for both, bottom and top limit of travel.
The Automatic measuring system consists of a 50KN capacity strain gauge load cell that is fitted to the upper cross beam to read stability values and 25 mm x 0.001 mm displacement transducer fitted to Break Head.

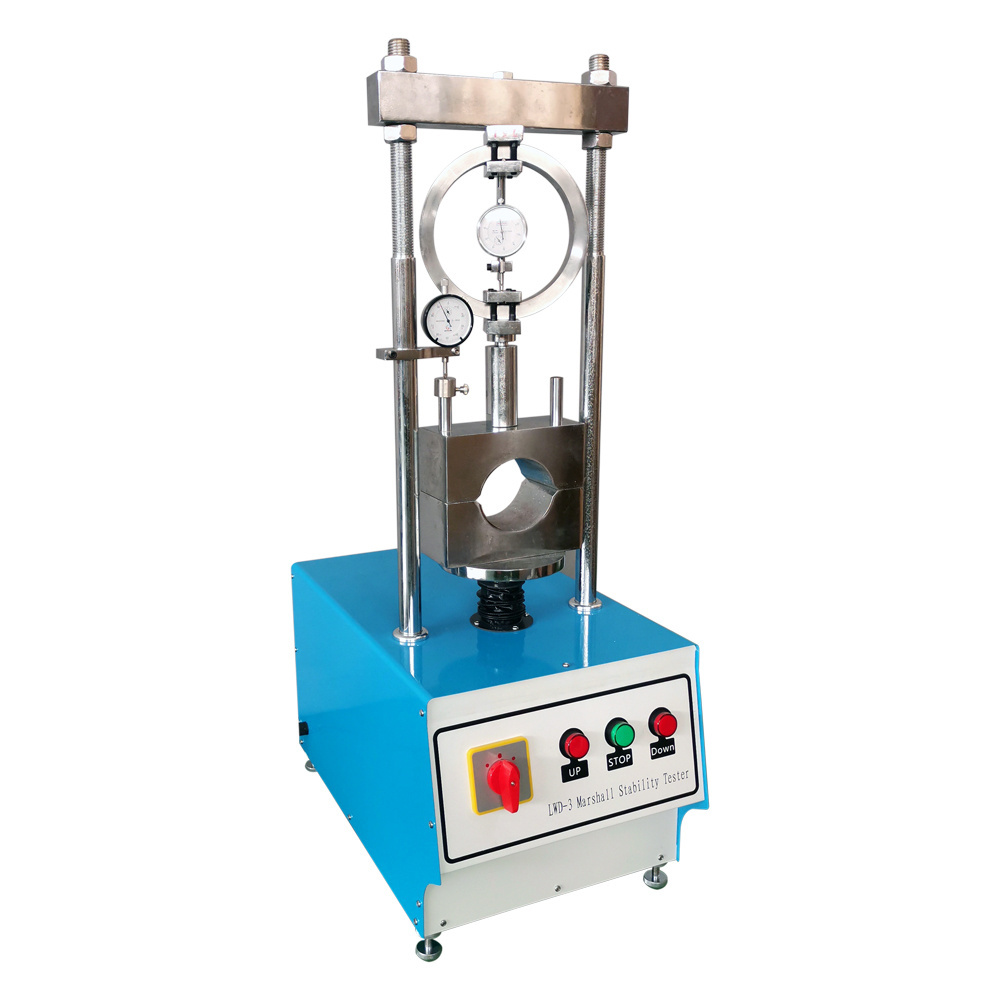

The Manual measuring system consists of a 50 KN capacity load ring and dial gauge graduated 0.01 mm with 25 mm travel.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
WINTESTING
-
Model Number:
-
MSTA1
-
Product name:
-
Digital Marshall Compression Stability Apparatus Tester Machine
-
Maximum rated load::
-
50kn
-
Working range of force value::
-
0 - 50.00kN
-
Measuring accuracy::
-
±0.1kN
-
Keyword::
-
Marshall stability test machine
-
Rise speed::
-
50±5mm/min
-
Maximum movement distance::
-
70mm
-
Working range of displacement::
-
0 - 10.00mm
-
Working voltage::
-
220V 50Hz AC
-
Ambient temperature::
-
0℃-60℃
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei
-
Brand Name:
-
WINTESTING
-
Model Number:
-
MSTA1
-
Product name:
-
Digital Marshall Compression Stability Apparatus Tester Machine
-
Maximum rated load::
-
50kn
-
Working range of force value::
-
0 - 50.00kN
-
Measuring accuracy::
-
±0.1kN
-
Keyword::
-
Marshall stability test machine
-
Rise speed::
-
50±5mm/min
-
Maximum movement distance::
-
70mm
-
Working range of displacement::
-
0 - 10.00mm
-
Working voltage::
-
220V 50Hz AC
-
Ambient temperature::
-
0℃-60℃
Product Display
Products Description
ASTM D1559 Marshall Stability Test Values Bitumen Marshall Test
|
The vertical rise speed of the test apparatus tray:
|
50±5mm/min
|
|
Maximum movement distance of the test apparatus pallet:
|
70mm
|
|
Working range of force value:
|
0 - 50.00kN
|
|
Working range of displacement:
|
0 - 10.00mm
|
|
Measuring accuracy of force measuring device:
|
±0.1kN
|
|
Displacement measuring device measuring accuracy:
|
0.01mm
|
|
Working voltage:
|
220V 50Hz AC
|
|
Specification of motor:
|
220V, 0.37KW, 1440rpm, three-phase operation
|
|
Maximum rated load:
|
50KN
|
|
Using conditions:
|
Ambient temperature 0℃-60℃ Relative temperature <85%
|
